Glass Beaker
Description: Lab glass beaker with graduation and Spout
Color: Transparent
Material: Borosilicate glass 3.3
Volume: 5ml-10000ml
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
Glass Beaker
1. Description: Lab glass beaker with graduation and Spout
2. Color: Transparent
3. Material: Borosilicate glass 3.3
4. Volume: 5ml-10000ml
5. Temperature Resistance: 560℃
6. Mouth: Flat, flanging, with or without spout
7. Application Laboratory, Chemical, School
8. OEM/ODM: Yes, your idea or drawing can be designed by us and produced or printing on.
Features
1. Characterized by excellent thermal shock resistance
2. Uniform wall thickness and no bubbles
3. Clear Graduation and labeling field
4. Bottom of the cup is leveling
About
A beaker is generally cylindrically shaped with a flat bottom and graduation markers used to store, mix and heat liquids in laboratories. Most also have a small spout (or "beak") to aid pouring. Beakers come in either low-form or tall-form heights. Low-form (or standard) beakers typically have a height that is approximately 1.4 times their diameter. Tall-form beakers are about twice the height of their diameter.
Glass Beaker | |||||||
Description | Photo | PN | Spec | Diamter | Height | Pcs/ | Carton |

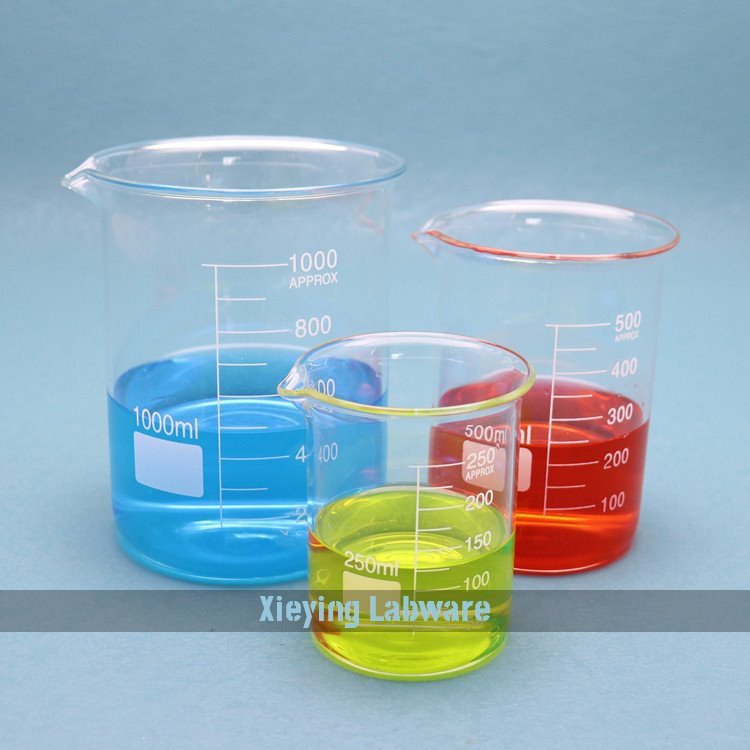

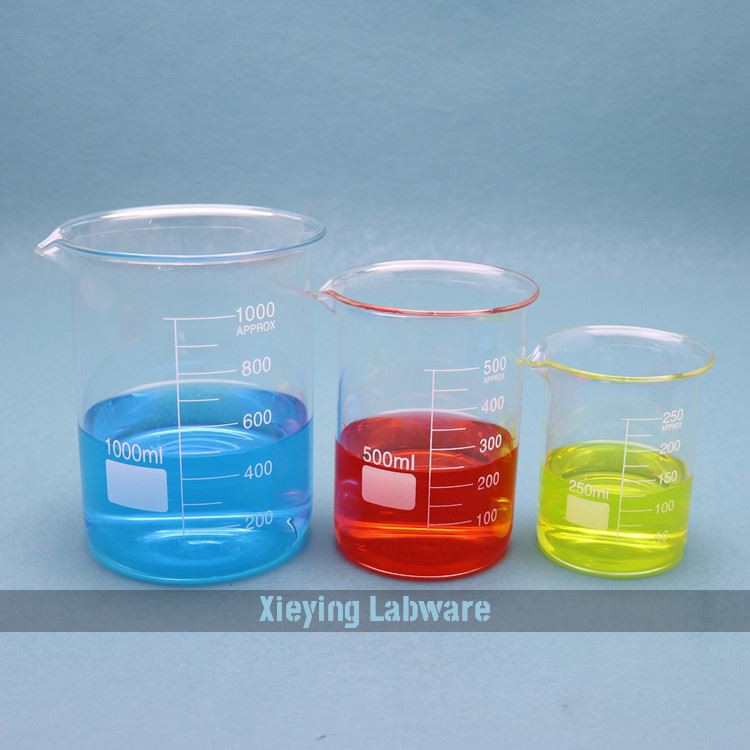

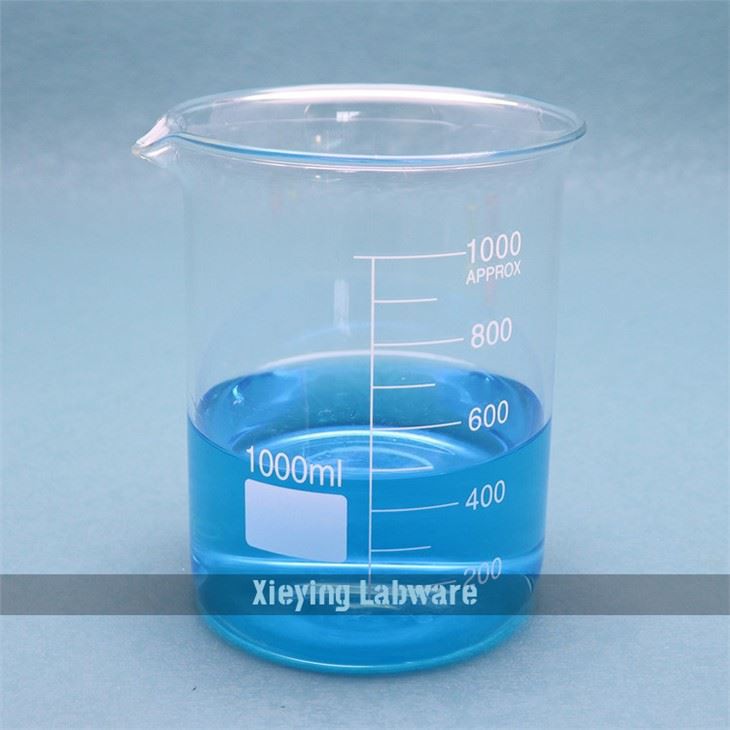

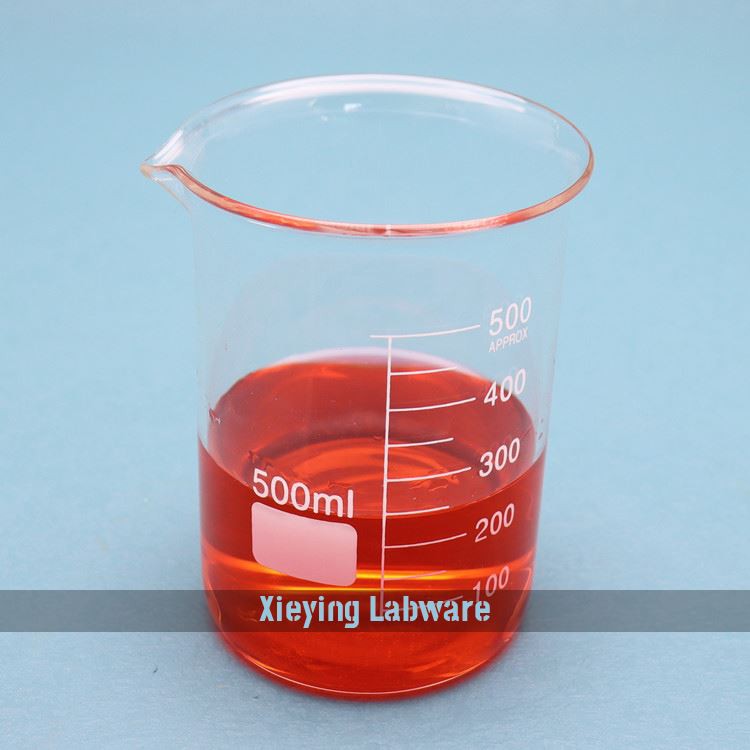

Low Form |
| A00801 | 5ml | 22 | 30 | 288 | 37*20.5*19 |
A00802 | 10ml | 26 | 35 | 288 | 37*20.5*19 | ||
A00803 | 25ml | 35 | 50 | 288 | 54*30*27 | ||
A00804 | 50ml | 42 | 60 | 192 | 44*34*31.5 | ||
A00805 | 100ml | 50 | 75 | 192 | 48*39*38 | ||
A00806 | 150ml | 60 | 85 | 192 | 58.5*43.5*39.5 | ||
A00807 | 200ml | 65 | 90 | 144 | 48.5*48.5*47 | ||
A00808 | 250ml | 70 | 95 | 144 | 48.5*48.5*47 | ||
A00809 | 300ml | 75 | 105 | 72 | 55*37*40 | ||
A00810 | 400ml | 80 | 110 | 72 | 55*37*40 | ||
A00811 | 500ml | 85 | 120 | 72 | 62.5*40.5*44 | ||
A00812 | 600ml | 90 | 125 | 48 | 62.5*43.5*31 | ||
A00813 | 800ml | 100 | 140 | 36 | 66.5*34.5*32 | ||
A00814 | 1000ml | 108 | 150 | 24 | 49*36.5*35 | ||
A00815 | 2000ml | 132 | 185 | 16 | 67*34*43 | ||
A00816 | 3000ml | 152 | 210 | 8 | 38*38*46 | ||
A00817 | 5000ml | 170 | 270 | 6 | 62.5*42*30 | ||
A00818 | 10000ml | 220 | 350 | 4 | 51*51*40 | ||

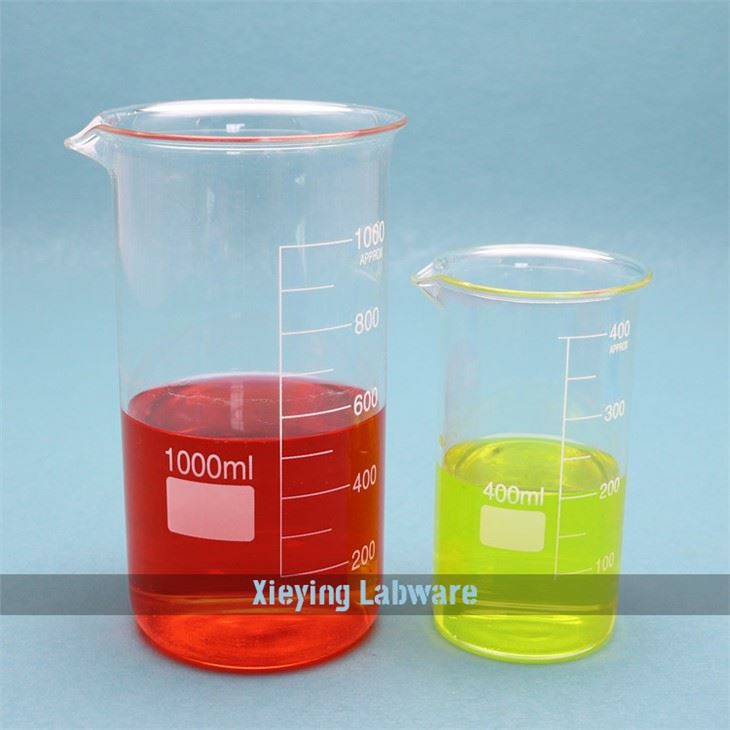

Tall Form |
| A00901 | 25ml | 35 | 55 | 192 | 41*31*35.5 |
A00902 | 50ml | 38 | 70 | 192 | 41*31*35.5 | ||
A00903 | 100ml | 48 | 80 | 192 | 48.5*35*40.5 | ||
A00904 | 150ml | 55 | 90 | 144 | 56.5*41*35.5 | ||
A00905 | 250ml | 60 | 120 | 72 | 44.5*27.5*44.5 | ||
A00906 | 300ml | 65 | 130 | 72 | 50.5*34*48 | ||
A00907 | 400ml | 70 | 135 | 72 | 50.5*34*48 | ||
A00908 | 500ml | 75 | 145 | 48 | 56.5*37.5*35 | ||
A00909 | 600ml | 80 | 155 | 48 | 56.5*37.5*35 | ||
A00910 | 800ml | 90 | 175 | 36 | 62*34*41 | ||
A00911 | 1000ml | 95 | 180 | 24 | 46*35.5*41 | ||
A00912 | 2000ml | 123 | 240 | 16 | 59*57*28 | ||
A00913 | 3000ml | 135 | 280 | 8 | 64.5*33*31 | ||
