Graham Condenser
Description: High Borosilicate Glass Condenser with Coiled Inner Tube Ground-in Mouth
Color: Clear/ Transparent
Material: Borosilicate glass 3.3
Length: 200mm/ 250mm/ 300mm/ 400mm/ 500mm/ 600mm
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction

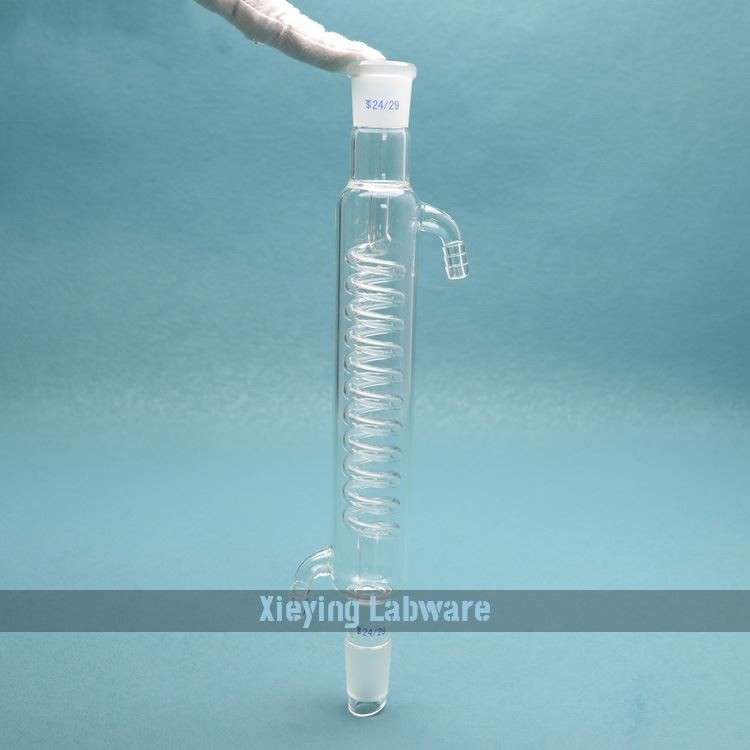

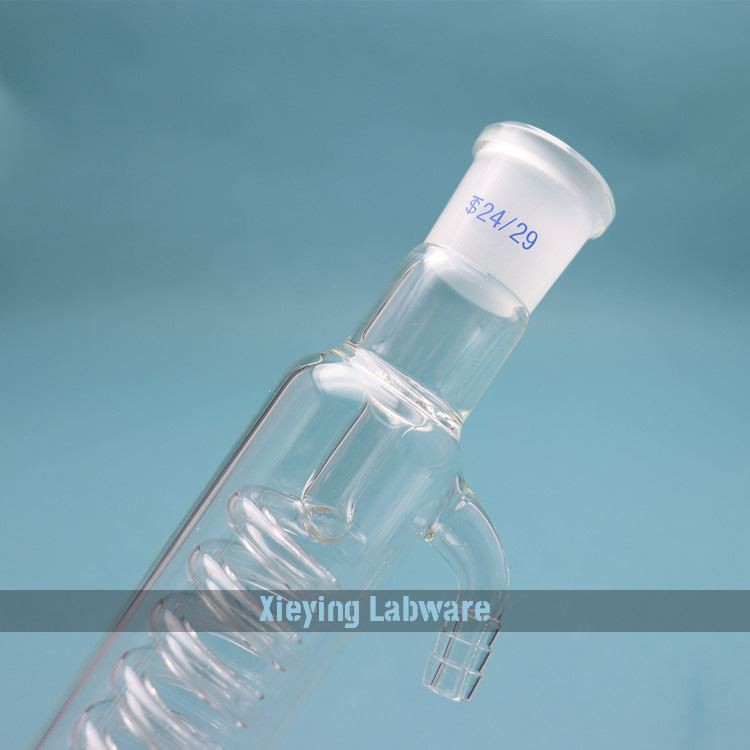

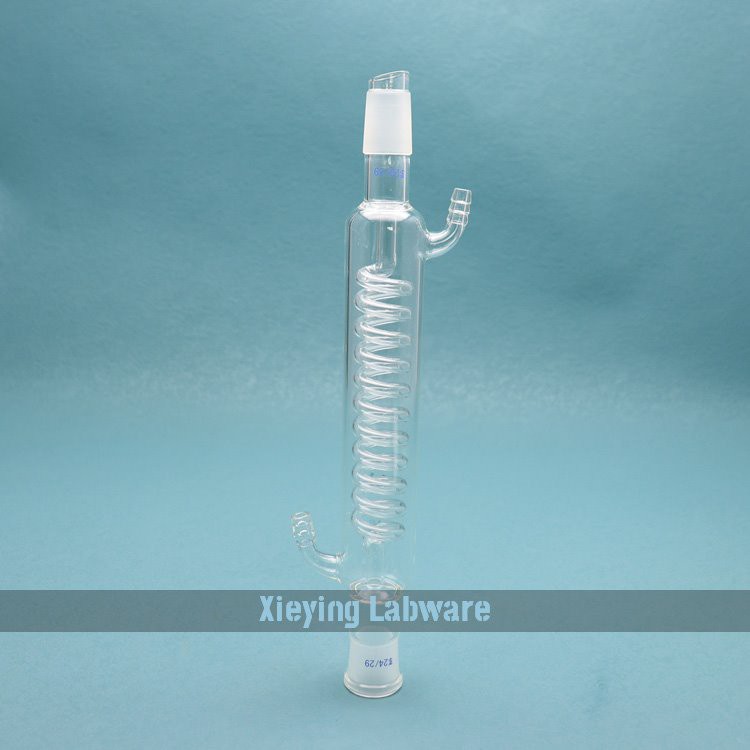

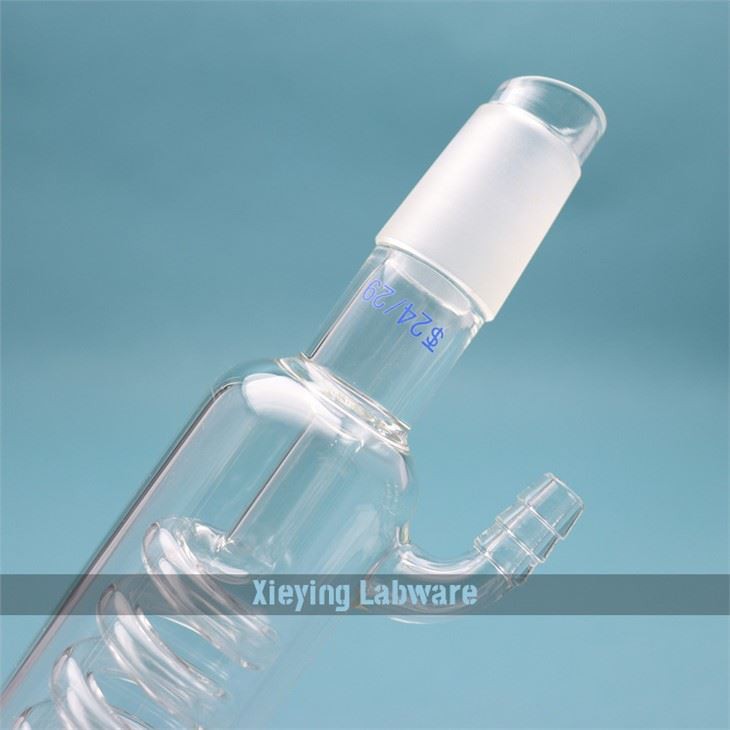

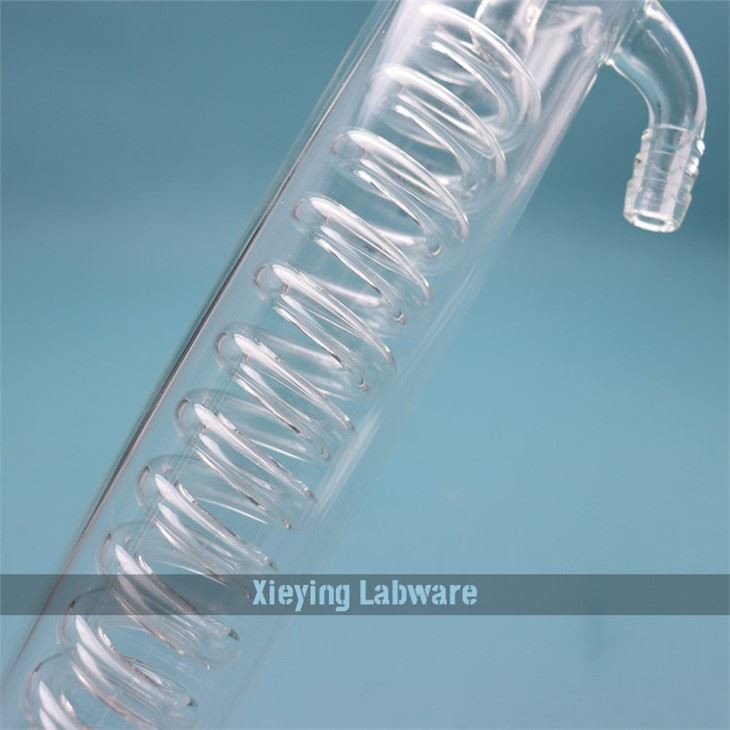

Graham Condenser
1. Description: High Borosilicate Glass Condenser with Coiled Inner Tube Ground-in Mouth
2. Color: Clear/ Transparent
3. Material: Borosilicate glass 3.3
4. Length: 200mm/ 250mm/ 300mm/ 400mm/ 500mm/ 600mm
5. Size of ST joint: 14#/14#, 19#/19#, 24#/24#, 29#/29#.
6. Application: Laboratory, Chemical,School
7. Types: With coiled inner tube, Graham
8. Thermal expansion coefficient (0-300℃)3.3±0.1×10-6k-1
9. Maximum working temperature: Short time(<10h): 500℃, Long time(>10h): 450℃
10. OEM is available
11. Sample: Offered
12. Place of origin: Yancheng city,China
About
Graham condenser used for distillation applications has coil-formed inner tube that increases surface area for cooling the condensed liquid for high-speed condensing.The glassware is composed of borosilicate glass that has a low coefficient of thermal expansion and is resistant to thermal stress. Inlet and outlet tubes are mounted on opposite sides of the tube.

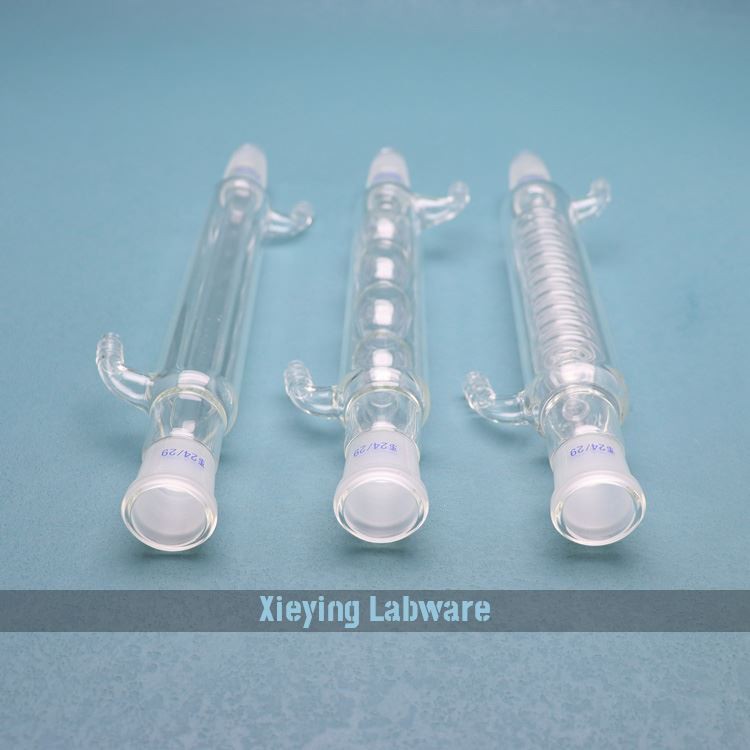

Glass Condenser | |||
Description | Photo | PN | Spec |
Liebig/Straight Condenser |
| A08401 | 100mm,19*19 |
A08402 | 100mm,24*24 | ||
A08403 | 200mm,19*19 | ||
A08404 | 200mm,24*24 | ||
A08405 | 300mm,19*19 | ||
A08406 | 300mm,24*24 | ||
A08407 | 400mm,19*19 | ||
A08408 | 400mm,24*24 | ||
A08409 | 500mm,24*24 | ||
A08410 | 600mm,24*24 | ||
A08411 | 800mm,24*24 | ||
A08412 | 900mm,24*24 | ||
A08413 | 1000mm,24*24 | ||

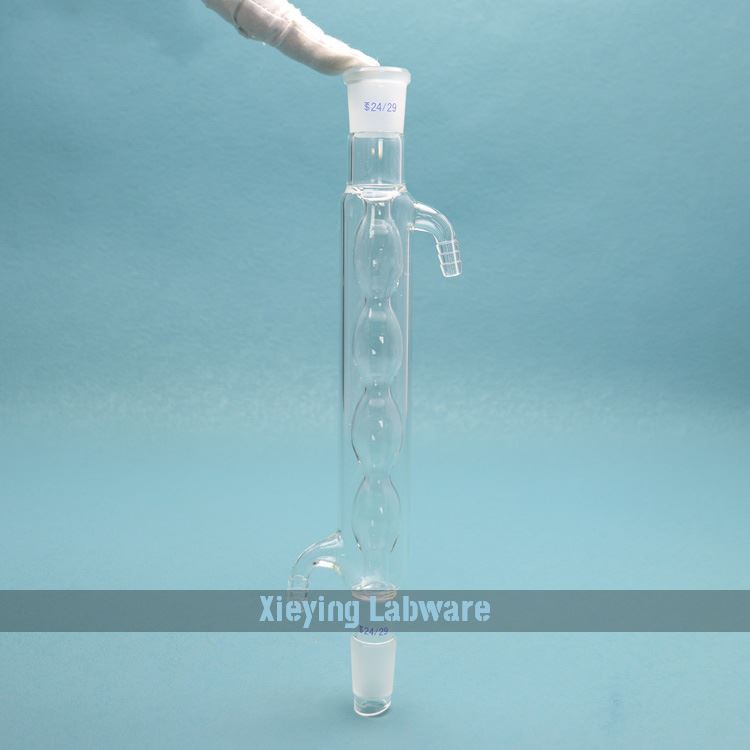

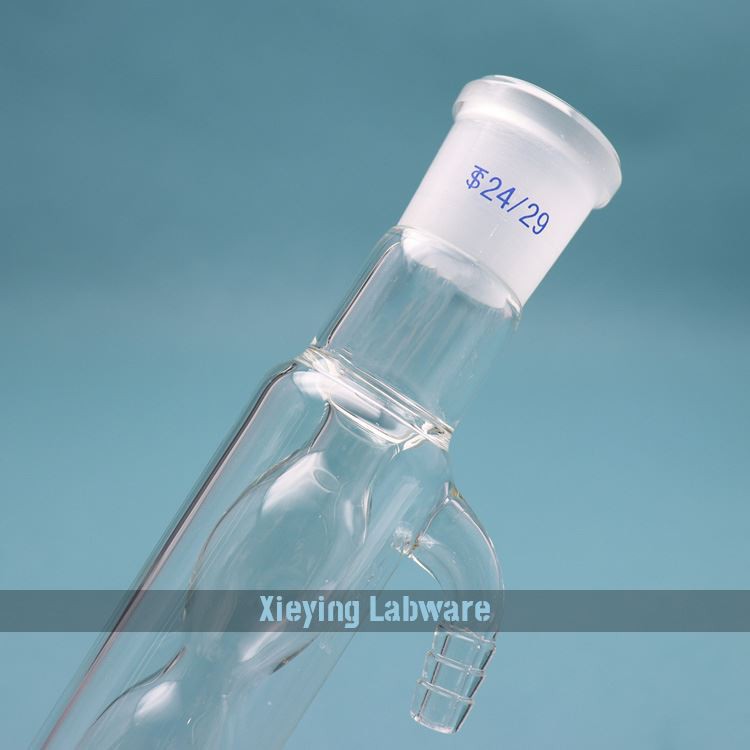

Allihn/Bulbed Condenser |
| A08501 | 200mm,19*19 |
A08502 | 200mm,24*24 | ||
A08503 | 300mm,19*19 | ||
A08504 | 300mm,24*24 | ||
A08505 | 400mm,19*19 | ||
A08506 | 400mm,24*24 | ||
A08507 | 500mm,24*24 | ||
A08508 | 600mm,24*24 | ||
A08509 | 800mm,24*24 | ||
A08510 | 900mm,24*24 | ||
A08511 | 1000mm,24*24 | ||
Graham/Coiled Condenser |
| A08601 | 200mm,19*19 |
A08602 | 200mm,24*24 | ||
A08603 | 300mm,19*19 | ||
A08604 | 300mm,24*24 | ||
A08605 | 400mm,19*19 | ||
A08606 | 400mm,24*24 | ||
A08607 | 500mm,24*24 | ||
A08608 | 600mm,24*24 | ||
A08609 | 800mm,24*24 | ||
A08610 | 1000mm,24*24 | ||
