Pressure Equalizing Dropping Funnel

Pressure Equalizing Dropping Funnel:

1. Description: Lab Borosilicate Glass Pressure Equalizing Dropping Funnel

2. Color: Clear

3. Material: Borosilicate glass 3.3/Pyrex glass

4. Standard Ground Mouth: 14/23, 19/26, 24/29, 29/32, 40/38, 50/42

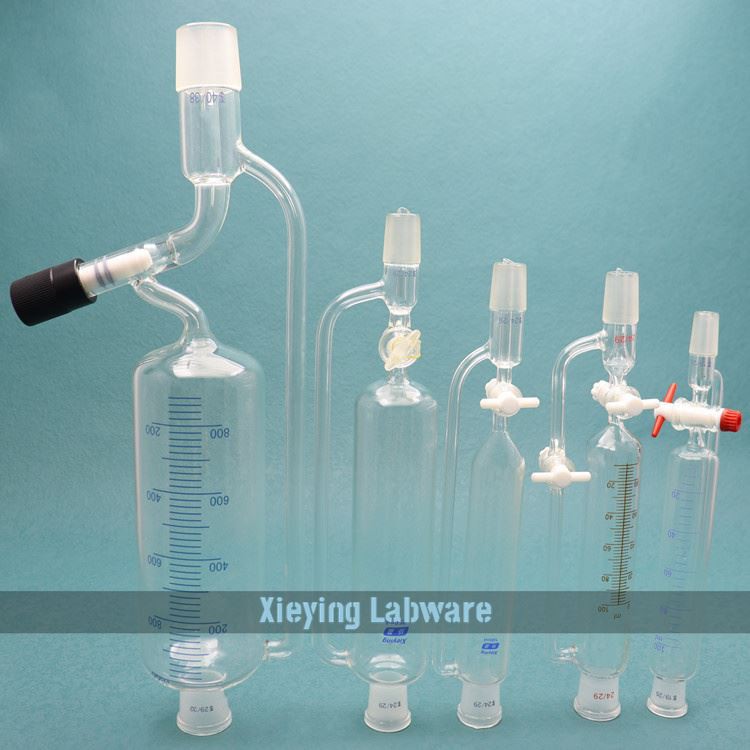

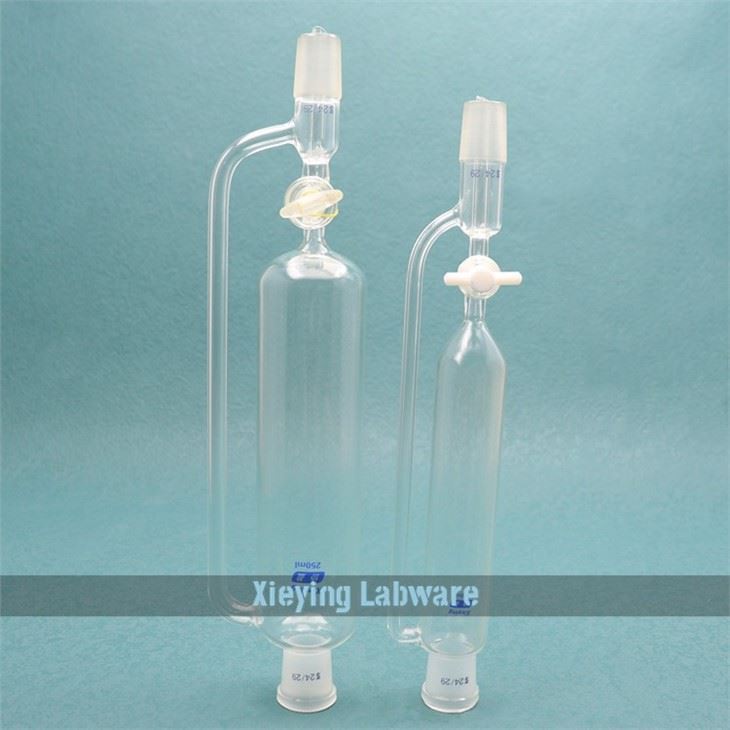

5. Type: A. Pressure Equalizing Dropping Funnel with Glass Stopcock

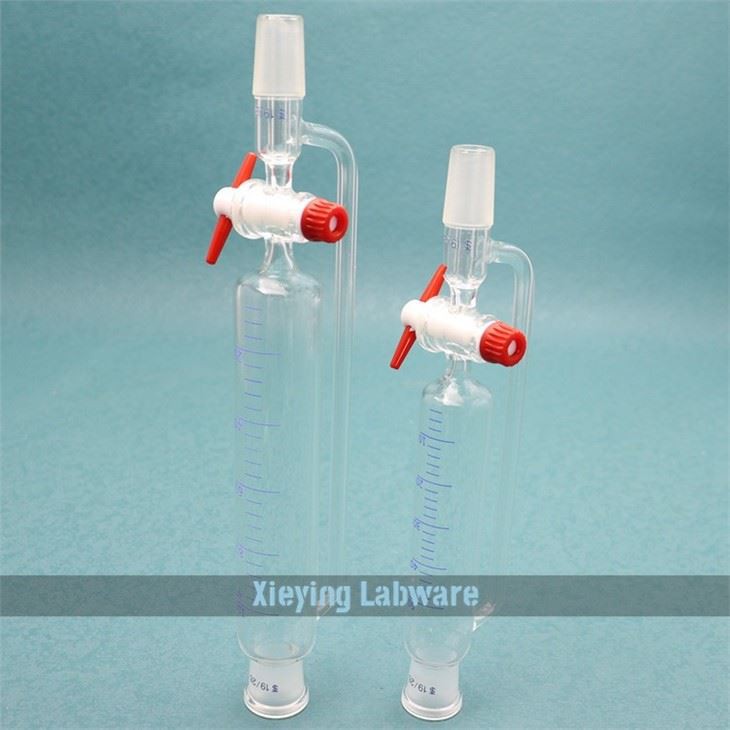

B. Pressure Equalizing Dropping Funnel with PTFE Stopcock

C. Pressure Equalizing Dropping Funnel with PTFE Stopcock &Graduation

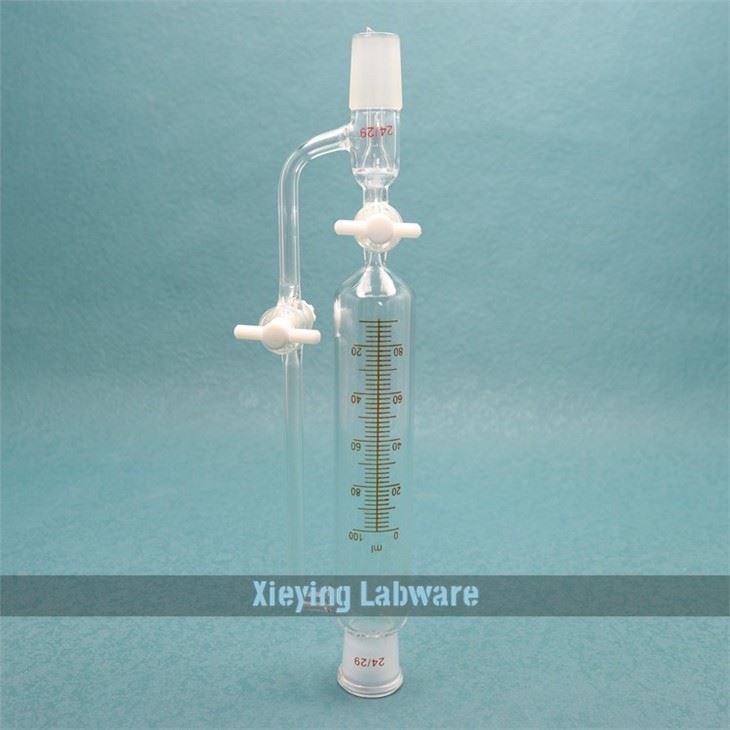

D. Pressure Equalizing Dropping Funnel with Double PTFE Stopcocks & Graduation

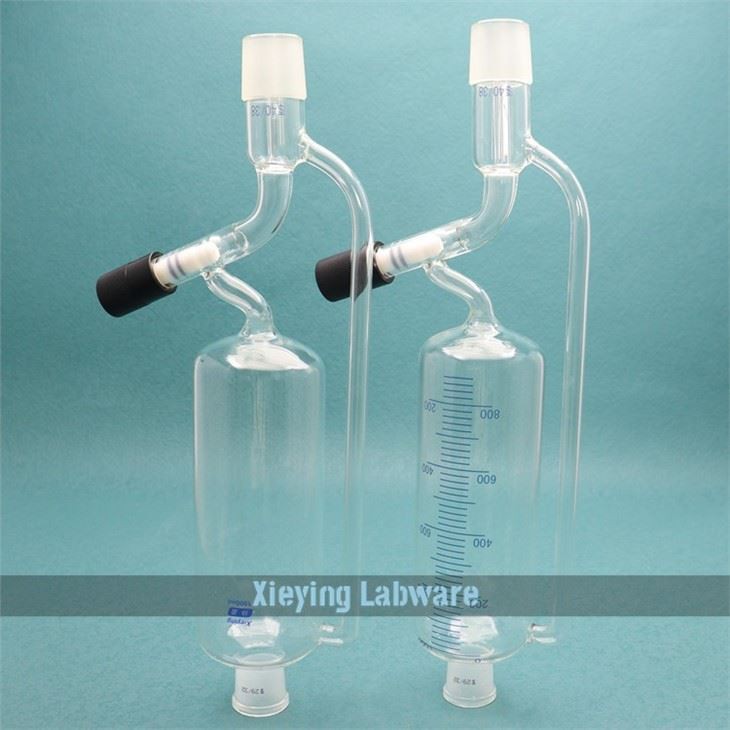

E.  Graduated Dropping Funnel Pressure Equalizing with High Vacuum Valve & Graduation

6. Volume Range: 25ml-2000ml

7. High temperature resistance: 550℃, Low temperature:-200℃

8. Feature: Heat-resistant glass

9. Advantage: High transparency

10. Application: Chemical laboratory, research institute

Features of Pressure Equalizing Dropping Funnel

1. It is easy to add liquid. There is no gas leakage when adding liquid.

2. The reaction rate can be controlled by controlling the rate of the drip.

3. It is actually a constant pressure separatory funnel, which does not require additional operations like a separatory funnel.

Technical Parameters

Pressure Equalizing Dropping Funnel
Description	Photo	PN	Spec
Pressure Equalizing Dropping Funnel with Glass Stopcock		A07601	25ml, 24*2
		A07602	50ml, 19*2
		A07603	50ml, 24*2
		A07604	100ml, 19*2
		A07605	100ml, 24*2
		A07606	250ml, 19*2
		A07607	250ml, 24*2
		A07608	500ml, 24*2
		A07609	500ml, 29*2
		A07610	1000ml, 24*2
		A07611	1000ml, 29*2
		A07612	2000ml, 24*2
Pressure Equalizing Dropping Funnel with PTFE Stopcock		A07701	25ml, 24*2
		A07702	50ml, 19*2
		A07703	50ml, 24*2
		A07704	100ml, 19*2
		A07705	100ml, 24*2
		A07706	250ml, 19*2
		A07707	250ml, 24*2
		A07708	500ml, 24*2
		A07709	500ml, 29*2
		A07710	1000ml, 24*2
		A07711	1000ml, 29*2
		A07712	2000ml, 24*2
Pressure Equalizing Dropping Funnel with PTFE Stopcock &Graduation		A07801	25ml, 24*2
		A07802	50ml, 19*2
		A07803	50ml, 24*2
		A07804	100ml, 19*2
		A07805	100ml, 24*2
		A07806	250ml, 19*2
		A07807	250ml, 24*2
		A07808	500ml, 24*2
		A07809	500ml, 29*2
		A07810	1000ml, 24*2
		A07811	1000ml, 29*2
		A07812	2000ml, 24*2
Pressure Equalizing Dropping Funnel with Double PTFE Stopcocks & Graduation		A07901	100ml, 19*2
		A07902	100ml, 24*2
		A07903	250ml, 19*2
		A07904	250ml, 24*2
		A07905	500ml, 24*2
		A07906	1000ml, 24*2
Graduated Dropping Funnel Pressure Equalizing with High Vacuum Valve & Graduation		A08001	50ml, 24*2
		A08002	100ml, 24*2
		A08003	250ml, 24*2
		A08004	500ml, 24*2
		A08005	1000ml, 24*2

About Pressure Equalizing Dropping Funnel：

Pressure-equalizing dropping funnels have an additional narrow-bore glass tube from the bulb of the funnel, to the ground glass joint around the stem. These replace the liquid volume lost in the bulb with the equivalent gas volume from the flask into which the reagent is flowing, and are useful when handling air-sensitive reagents in a sealed, inert-gas environment. Without this tube, or some other means to equalize the pressure between a sealed receiving flask and the bulb of the funnel, the flow of fluid from the bulb will rapidly come to a halt.

The borosilicate glass compensated pressure funnel is commonly used in general closed system experiments and experiments that require dripping solutions.It is connected with reaction vessel to drop solution, which can isolate the air, prevent solvent from volatilizing, and speed up experiment process.
