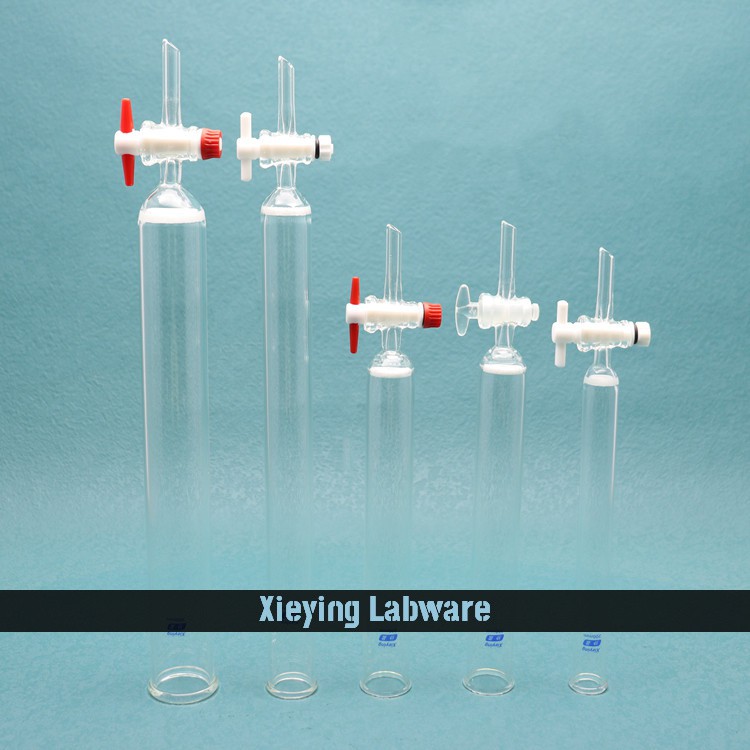

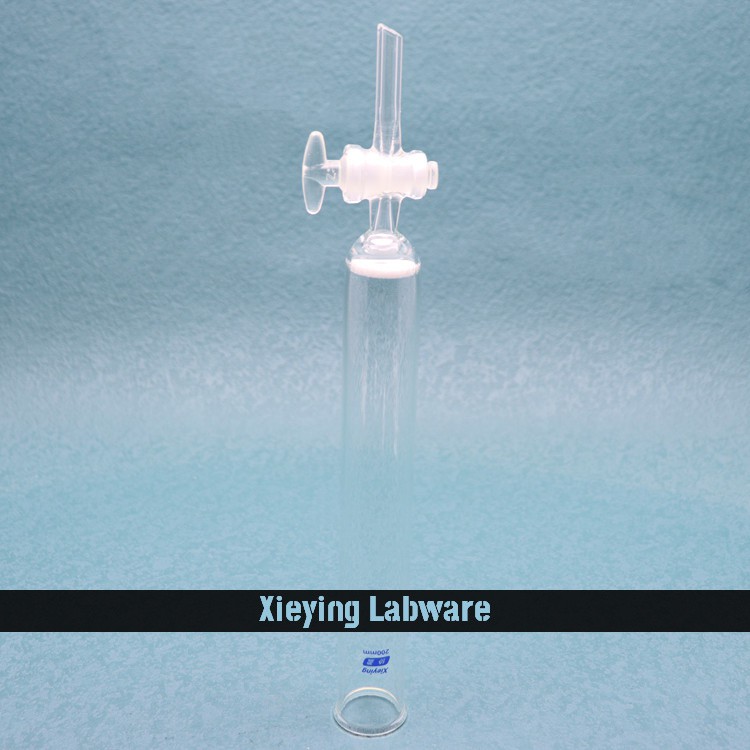

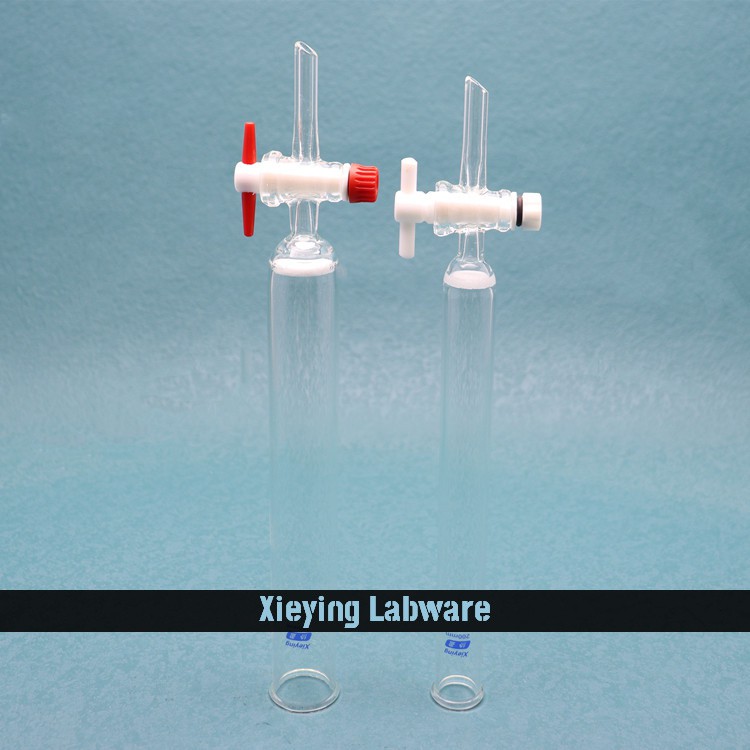

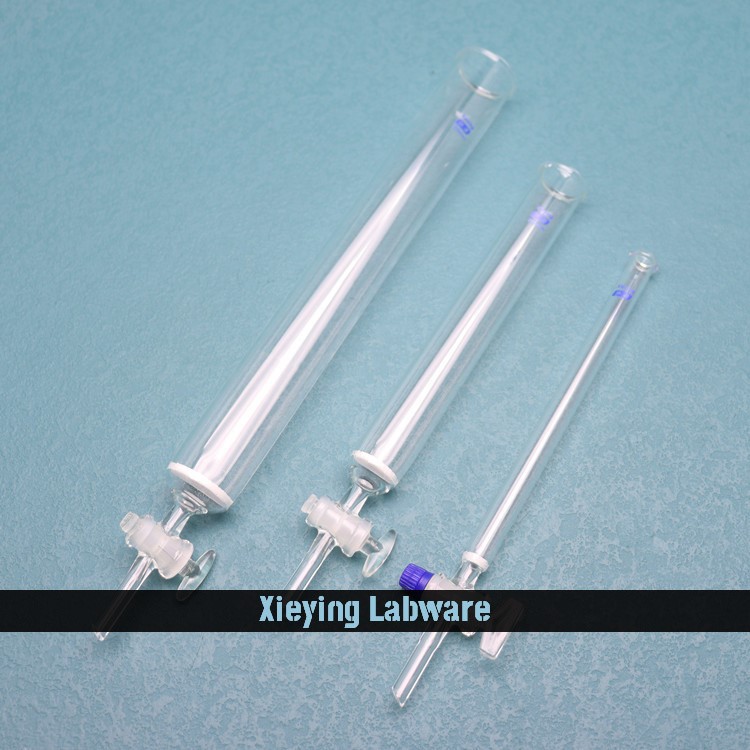

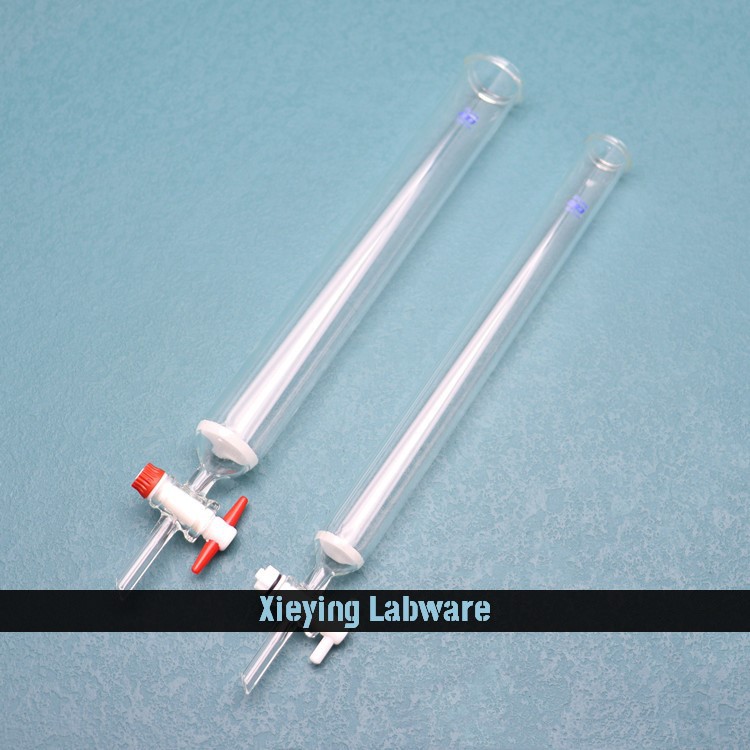

Chromatography Column Beaded Top



Chromatography Column With Beaded Top

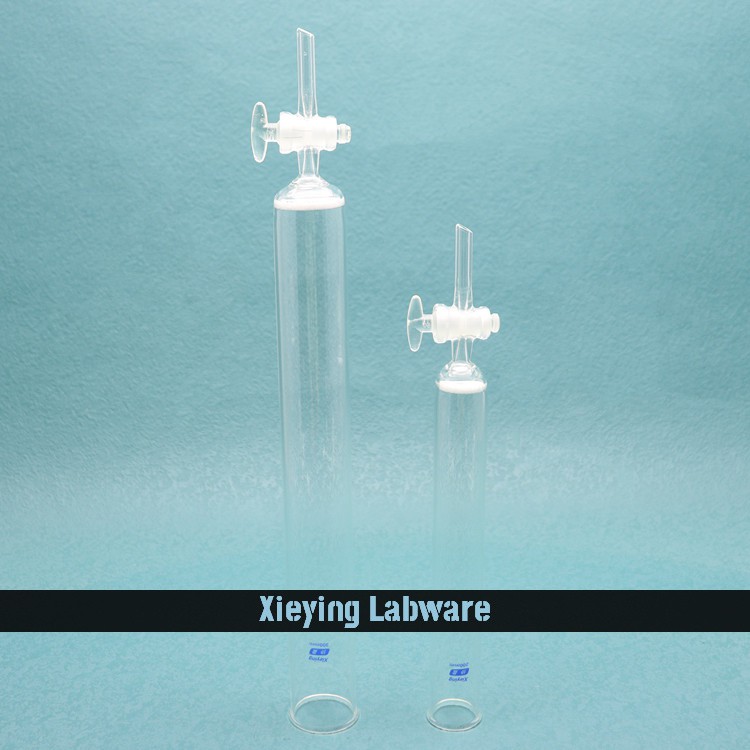

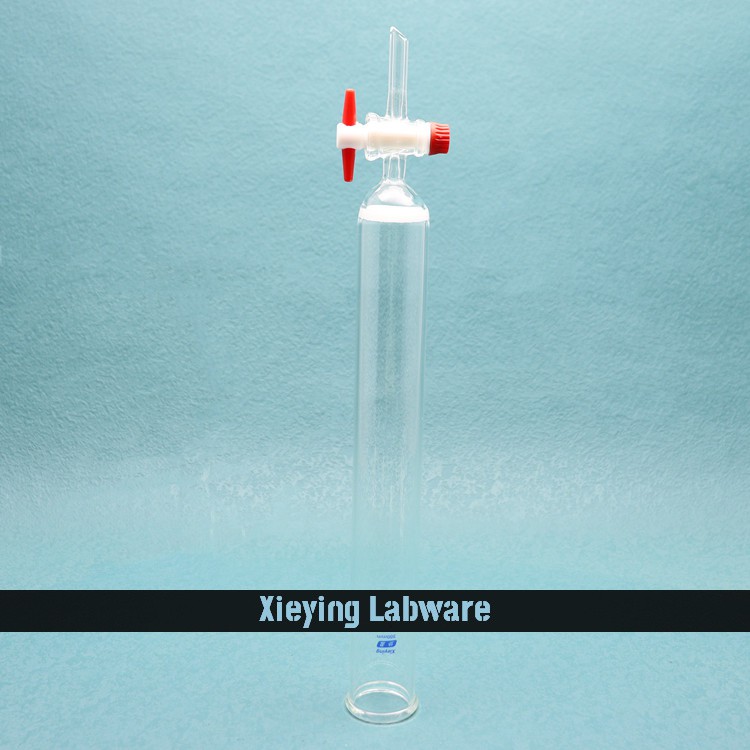

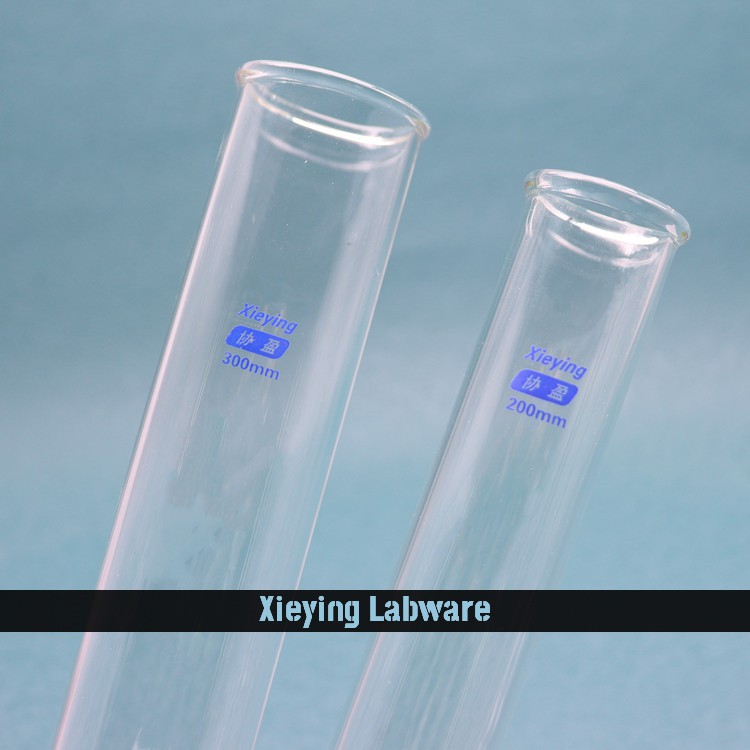

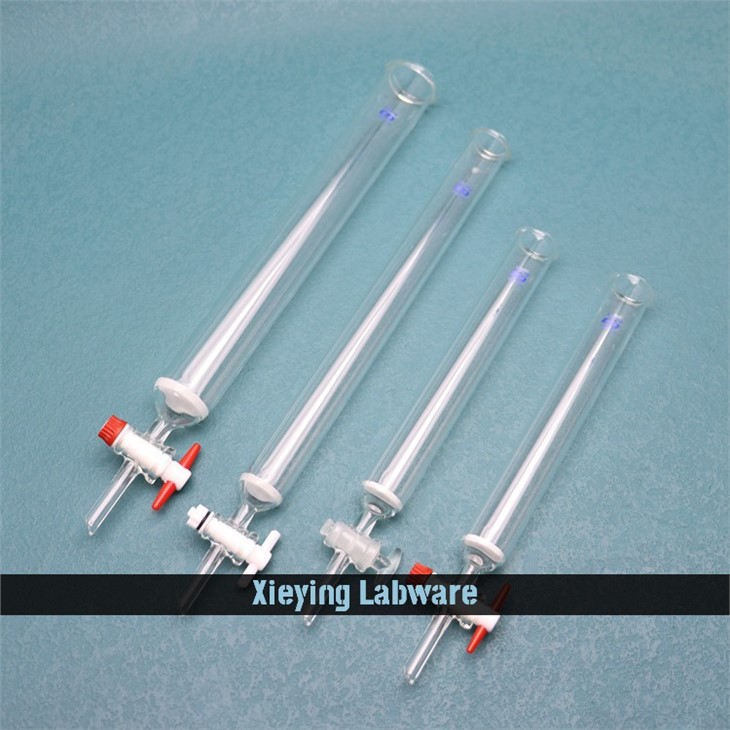

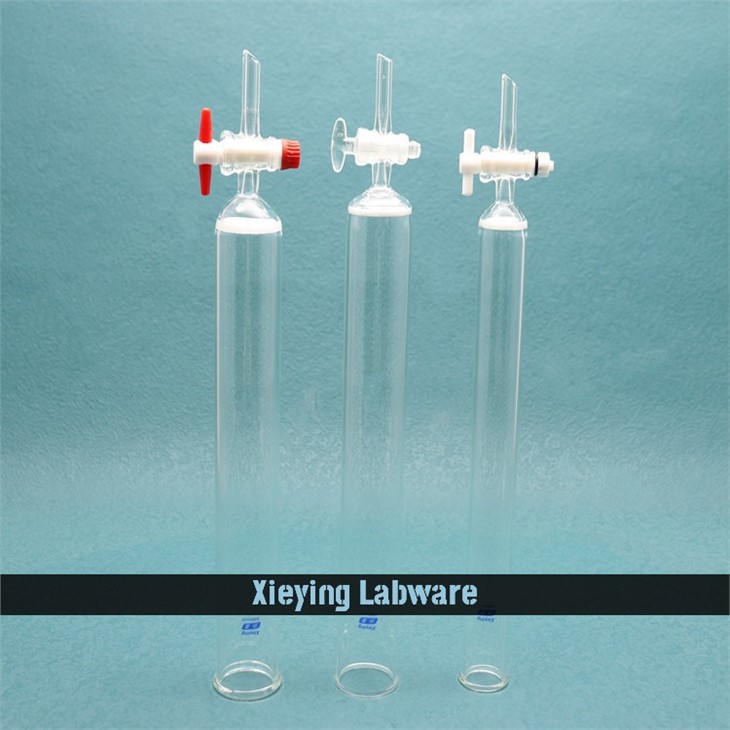

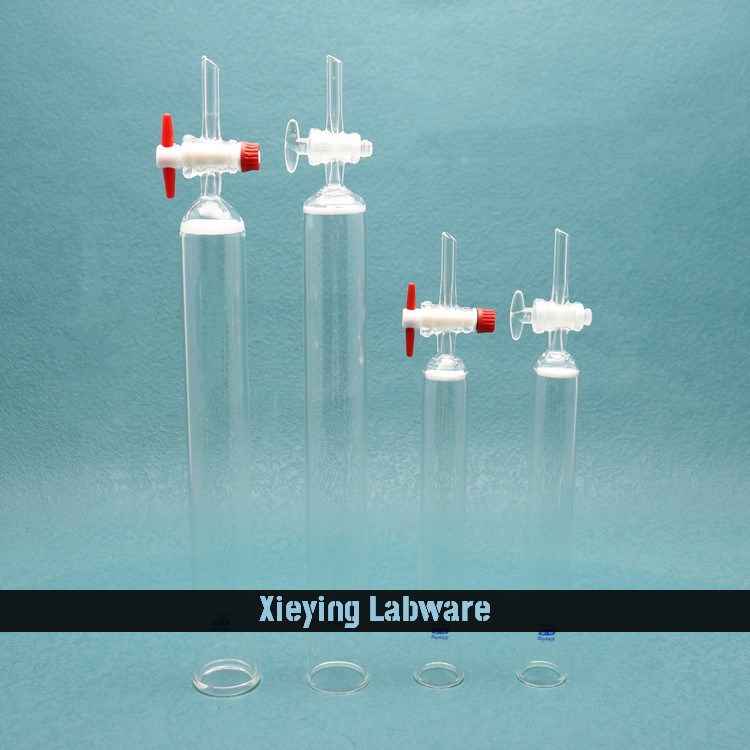

1. Description: Laboratory Boro 3.3 Glass Chromatography Column with Beaded Top

2. Color: Clear

3. Material: Borosilicate glass 3.3/Pyrex glass

4. Standard Ground Mouth: 14/23, 19/26, 24/29, 29/32, 40/38, 50/42

5. Type:

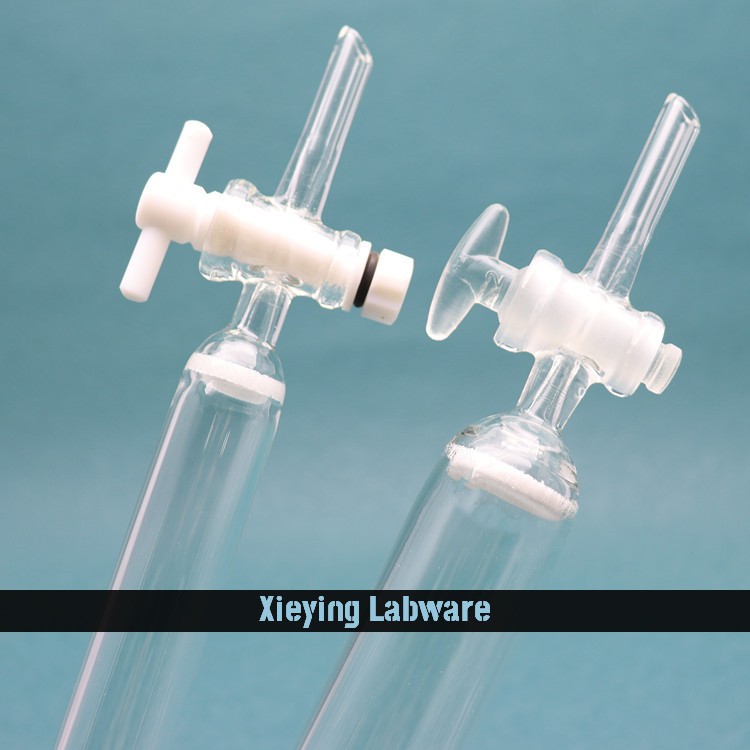

A. Chromatography Column with Outer Joint，Fritted Disc & Glass Stopcock

B. Chromatography Column with Outer Joint，Fritted Disc & PTFE Stopcock

C. Chromatography Column with Fritted Disc & Glass Stopcock

D. Chromatography Column with Fritted Disc & PTFE Stopcock

E. Filter Chromatography Column with Fritted Disc

F. Filter Chromatography Column with Outer Joint & Fritted Disc

G. Chromatography Column, Reservoir, Outer Joint, Fritted Disc, PTFE Stopcock

6. High temperature resistance: 550℃, Low temperature:-200℃

7. Feature: Heat-resistant glass

8. Usage: Laboratory or teaching

9. OEM: Yes,We can produce according to your design drawing



Technical Parameters

Chromatography Column
Description	Photo	PN	Spec
Chromatography Column with Outer Joint, Fritted Disc & Glass Stopcock		A09101	16*200mm,24#
		A09102	16*300mm,24#
		A09103	16*400mm,24#
		A09104	22*200mm,24#
		A09105	22*300mm,24#
		A09106	22*400mm,24#
		A09107	30*200mm,24#
		A09108	30*300mm,24#
		A09109	30*400mm,24#
		A09110	40*200mm,24#
		A09111	40*300mm,24#
		A09112	40*400mm,24#
Chromatography Column with Outer Joint, Fritted Disc & PTFE Stopcock		A09201	16*200mm,24#
		A09202	16*300mm,24#
		A09203	16*400mm,24#
		A09204	22*200mm,24#
		A09205	22*300mm,24#
		A09206	22*400mm,24#
		A09207	30*200mm,24#
		A09208	30*300mm,24#
		A09209	30*400mm,24#
		A09210	40*200mm,24#
		A09211	40*300mm,24#
		A09212	40*400mm,24#
Chromatography Column with Fritted Disc & Glass Stopcock		A09301	16*200mm
		A09302	16*300mm
		A09303	16*400mm
		A09304	22*200mm
		A09305	22*300mm
		A09306	22*400mm
		A09307	30*200mm
		A09308	30*300mm
		A09309	30*400mm
		A09310	40*200mm
		A09311	40*300mm
		A09312	40*400mm
Chromatography Column with Fritted Disc & PTFE Stopcock		A09401	16*200mm
		A09402	16*300mm
		A09403	16*400mm
		A09404	22*200mm
		A09405	22*300mm
		A09406	22*400mm
		A09407	30*200mm
		A09408	30*300mm
		A09409	30*400mm
		A09410	40*200mm
		A09411	40*300mm
		A09412	40*400mm
Filter Chromatography Column with Fritted Disc		A09501	30*200mm,24#
		A09502	30*300mm,24#
		A09503	30*400mm,24#
		A09504	40*300mm,24#
		A09505	40*400mm,24#
		A09506	40*500mm,24#
		A09507	50*300mm,24#
		A09508	50*400mm,24#
		A09509	50*500mm,24#
		A09510	60*300mm,24#
		A09511	60*400mm,24#
		A09512	60*500mm,24#
		A09513	60*600mm,24#
Filter Chromatography Column with Outer Joint & Fritted Disc		A09601	30*200mm,24*2
		A09602	30*300mm,24*2
		A09603	30*400mm,24*2
		A09604	30*500mm,24*2
		A09605	40*400mm,24*2
		A09606	40*500mm,24*2
		A09607	50*300mm,24*2
		A09608	50*400mm,24*2
		A09609	50*500mm,24*2
		A09610	60*300mm,24*2
		A09611	60*400mm,24*2
		A09612	60*500mm,24*2
		A09613	70*400mm,24*2
		A09614	70*500mm,24*2
		A09615	80*400mm,24*2
Chromatography Column, Reservoir, Outer Joint, Fritted Disc, PTFE Stopcock		A09701	100ml,15*200,24#
		A09702	100ml,20*200,24#
		A09703	100ml,25*300,24#
		A09704	250ml,30*300,24#
		A09705	250ml,40*400,24#
		A09706	500ml,50*400,24#

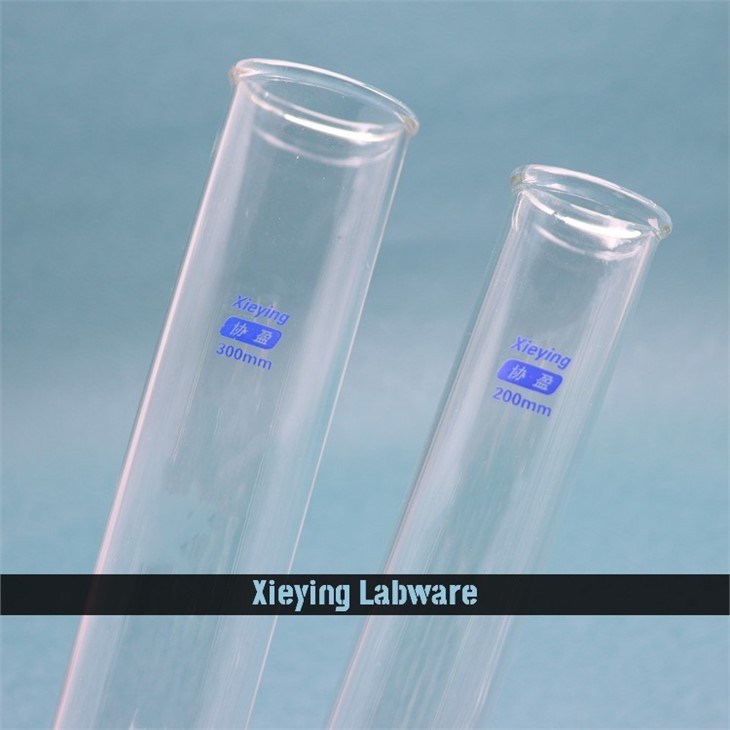

About Chromatography Column With Beaded Top:

The column is the main body of the gel chromatography technique, generally using a glass tube or a plexiglass tube. A chromatographic method in which the partition coefficients of the components in the sample mixture differ in the stationary phase and the mobile phase.

Working principle: using adsorbent to have different adsorbent effects on different compounds, using the appropriate solvent to make the mixture in the column filled with adsorbent through, is the mixture separation and purification.
