Double Vacuum Manifold

About Glass Double Vacuum Manifold

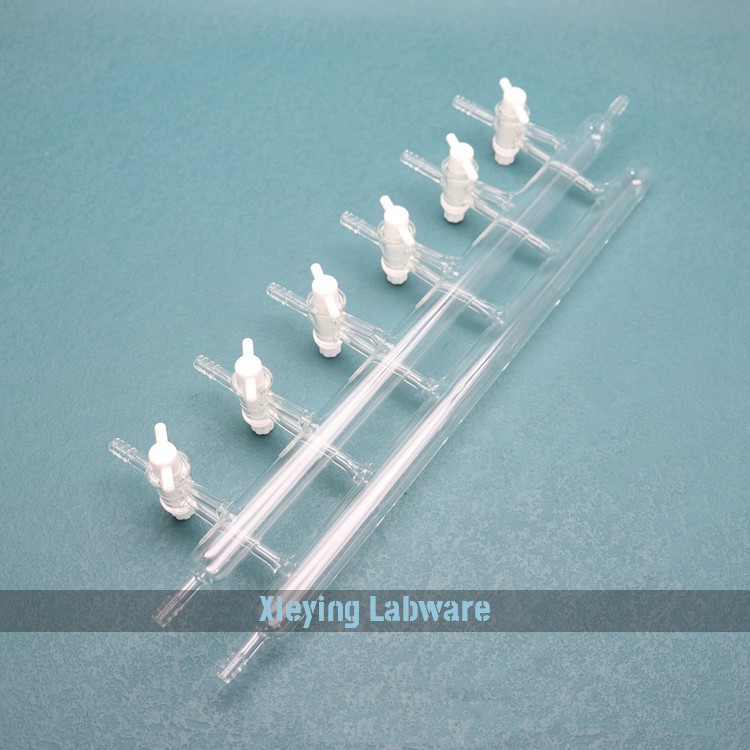

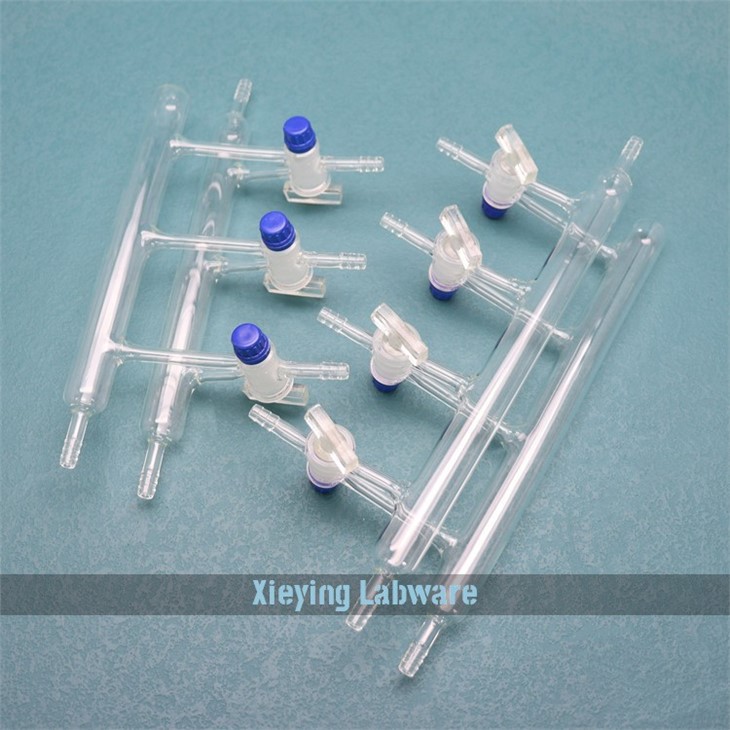

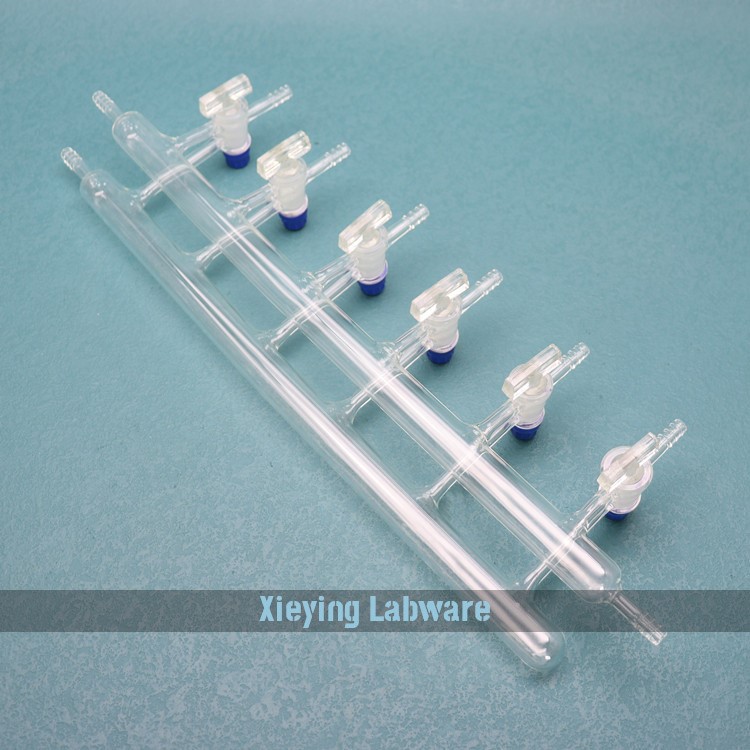

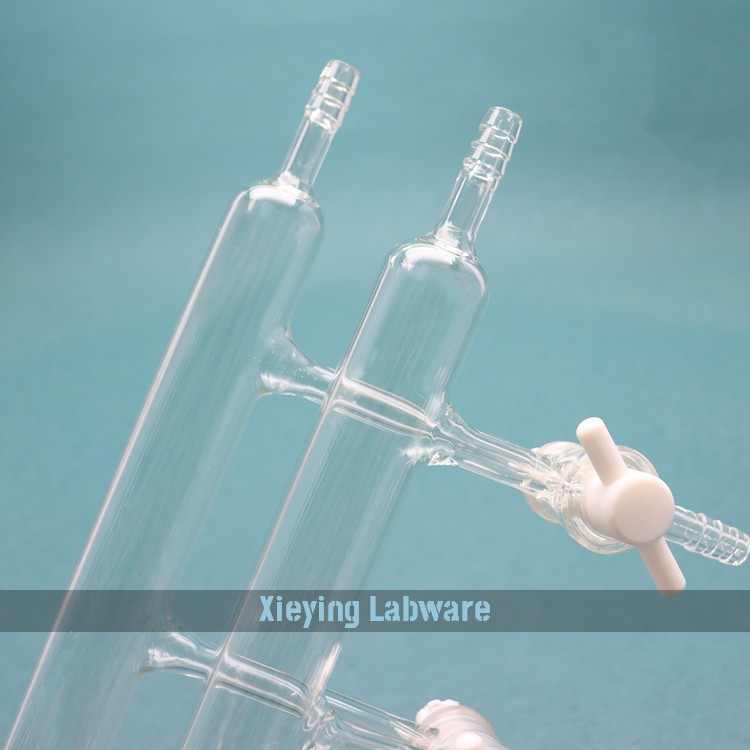

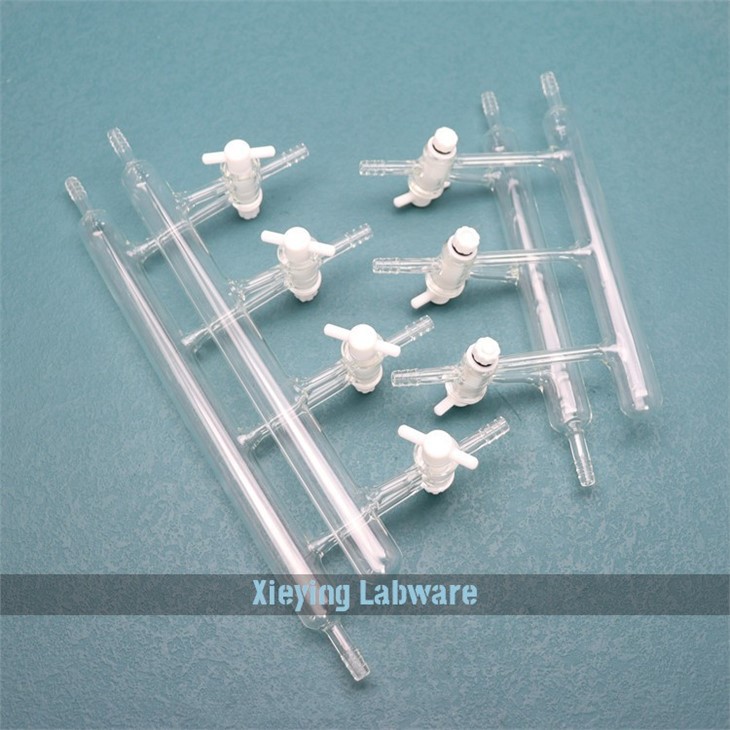

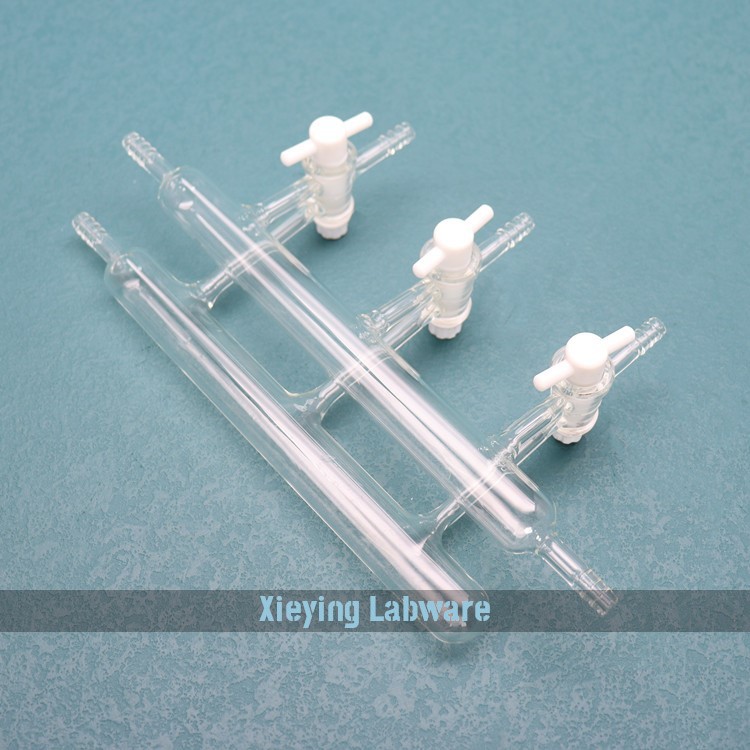

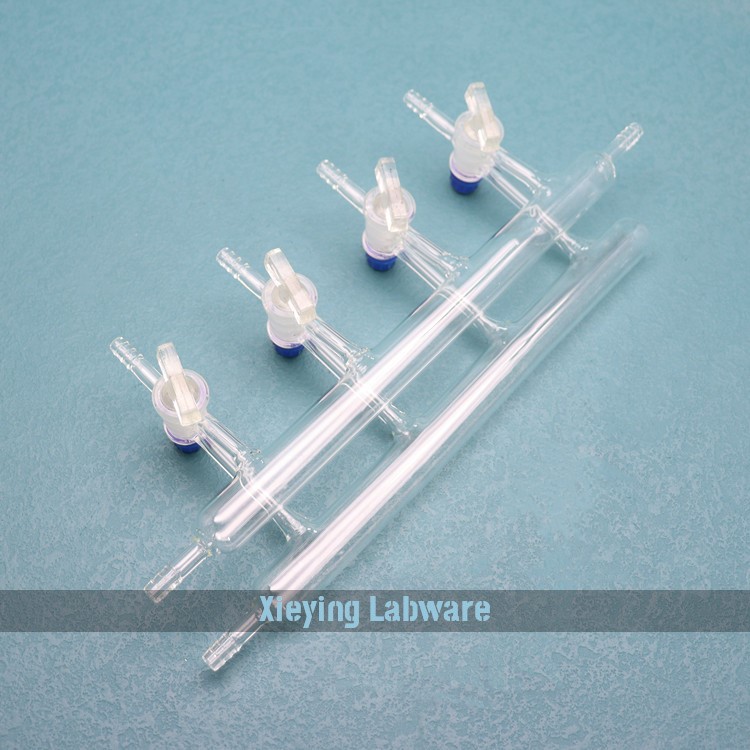

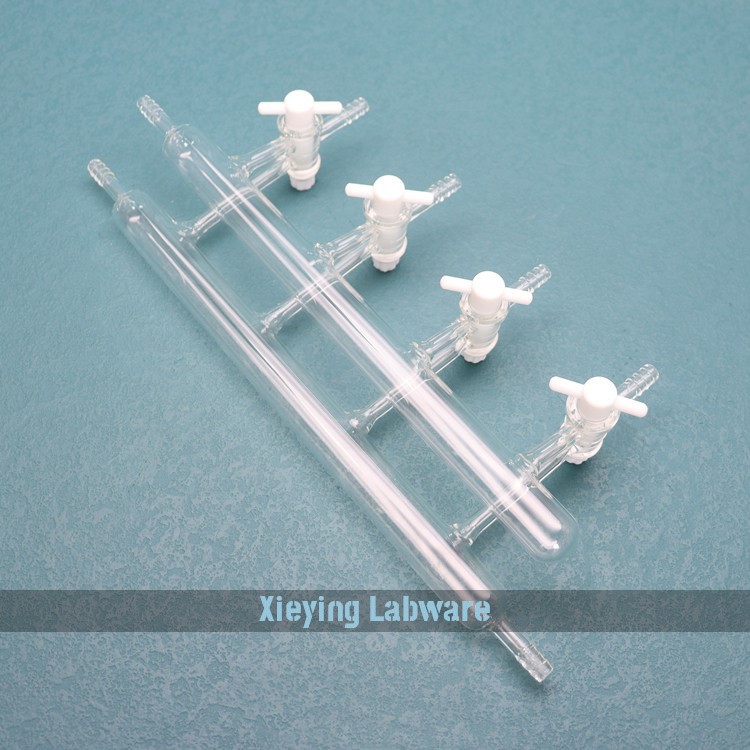

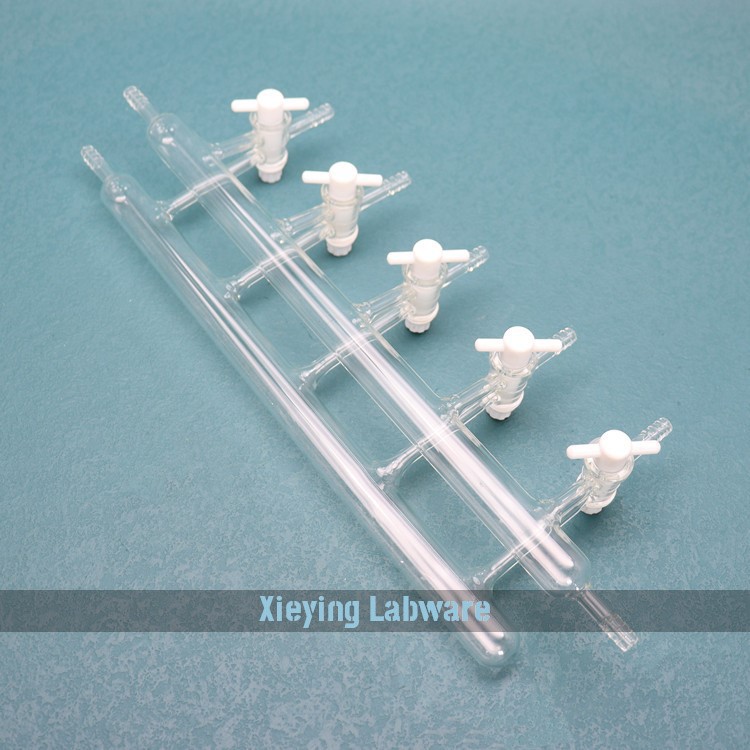

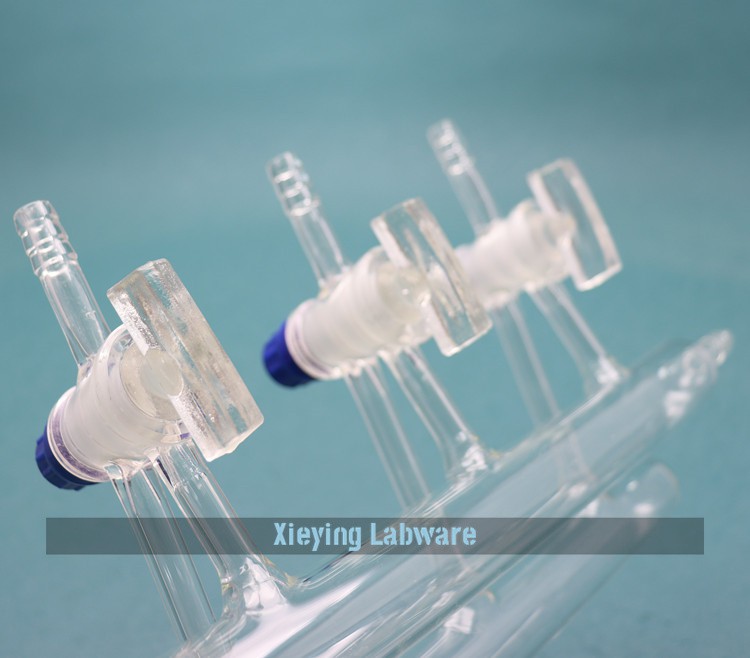

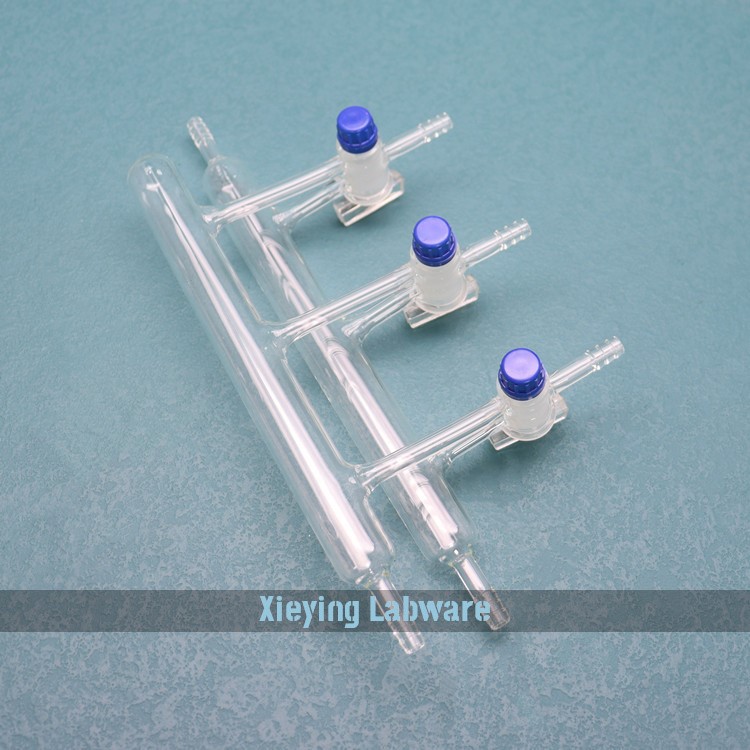

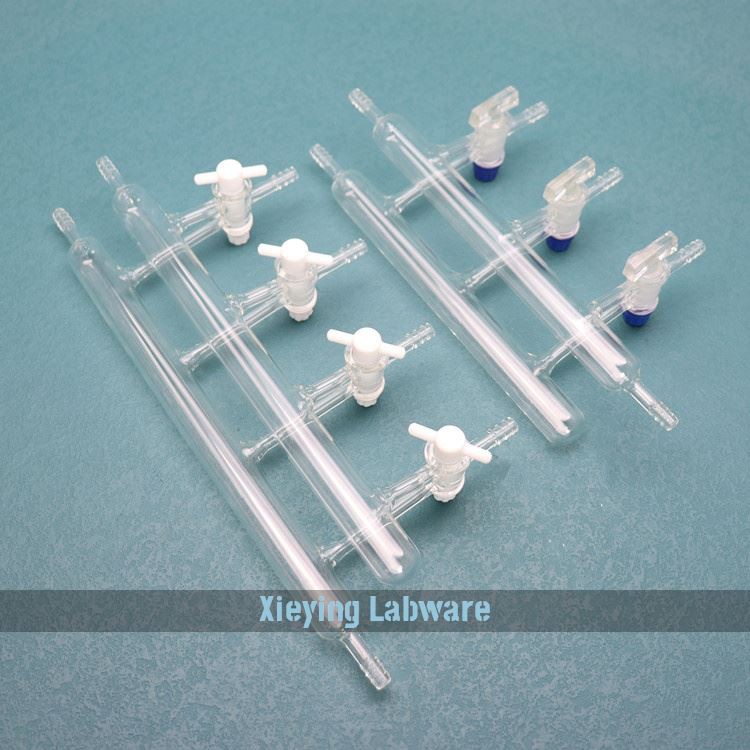

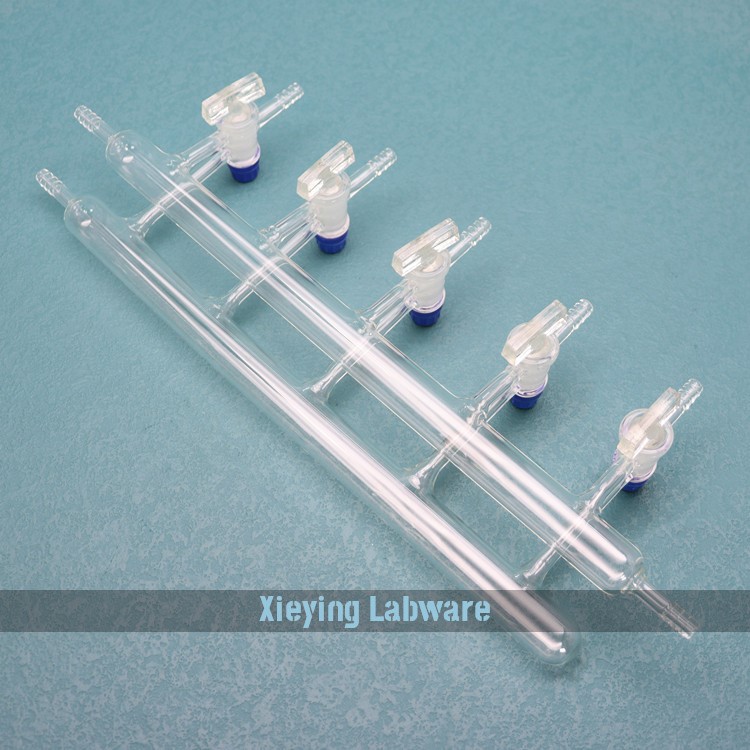

This is a double-bank manifold for use with vacuum and inert gas.One bank is connected to a source of purified inert gas vented through a oil bubbler .The other bank is connected to a vacuum pump.With 4mm double oblique,high vacuum solid glass stopcocks on the ports allows vacuum or inert gas to be selected without the need for placing the reaction flasks or tubes on a separate line.There are hose connects on the vacuum/gas banks and the reaction lines. USE------Vacuum/gas manifold is the key component of the schlenk line which is a commonly chemistry apparatus used to manipulate moisture-and air-sensitive compounds with vacuum and inert gas in organic, inorganic and bioorganic chemistry.In a schlenk line, a gas bubber is attached to the outlet end of the inert gas line,a cold trap is placed in between the manifold and the vacuum trap.The reaction lines are attached to reaction flasks or tubes via heavy-wall rubber tubing. DIMENSIONS----This double vacuum gas manifold is designed with 4mm double oblique,high vacuum solid glass stopcocks precision ground with corresponding numbers on barrel and plug.Both inert gas and vaccum banks are made from 22mm medium wall tubing and have Front-Left-Right & Rear-Left opens.It is designed with 3 ports which are spaced 100mm center to center and the hose connections have an O.D.of 10mm at the largest serration.The overall width is 350mm. HEAVY WALL ---This vauum gas manifold is heavy-wall designed , made by hand-blowing according to ASTM E438 ,made of high-quality borosilicate glass and annealed at 800 degree Celsius ,can be heated directly in an open flame and can withstand typical laboratory thermal variations in Chemistry processes like heating and cooling,durable and reusable. 100% 90 DAY MONEY BACK GUARANTEE If you are not satisfied for any reason, simply return for a full refund, no questions asked. You have nothing to lose.Please also kindly understand glassware is fragile, even if we pack them carefully,it may be broken during the shipment ,if you receive the items in broken status,don't hesitate to contact us ,we will arrange free replacement or full refund.


Technical Parameters

Vacuum Manifold
Description	Photo	PN	Spec
Vacuum Manifold with Glass Stopcock		A22801	Three Ports
		A22802	Four Ports
		A22803	Five Ports
		A22804	Six Ports
Vacuum Manifold with PTFE Stopcock		A22805	Three Ports
		A22806	Four Ports
		A22807	Five Ports
		A22808	Six Ports
Double Vacuum Manifold with Glass Stopcock		A22901	Three Ports
		A22902	Four Ports
		A22903	Five Ports
		A22904	Six Ports
Double Vacuum Manifold with PTFE Stopcock		A22905	Three Ports
		A22906	Four Ports
		A22907	Five Ports
		A22908	Six Ports
Double Vacuum Manifold with High Vacuum Valve		A23001	Three Ports
		A23002	Four Ports
		A23003	Five Ports
		A23004	Six Ports
