Vacuum Manifold

About Glass Vacuum Manifold

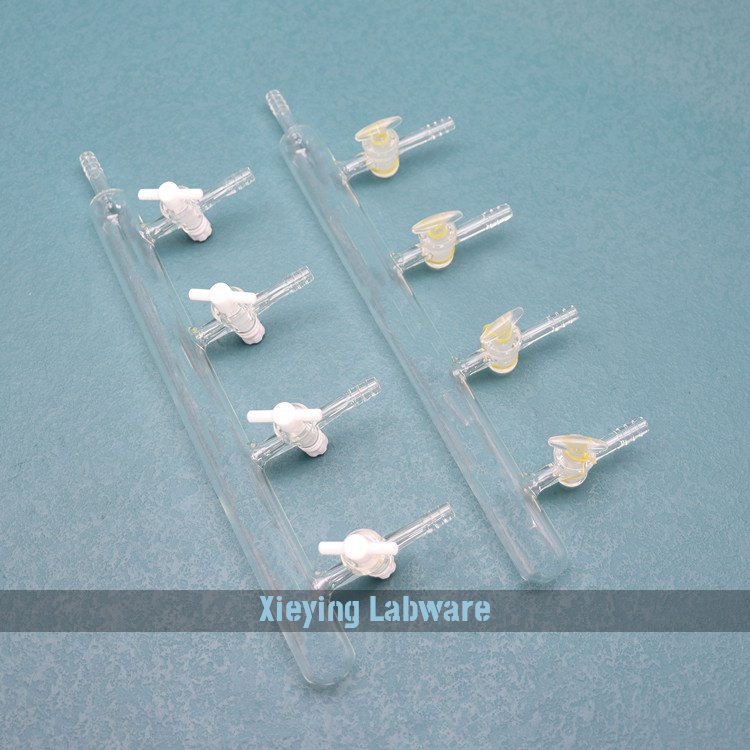

General purpose single bank vacuum manifold with 3, 4, or 5 ports. These manifolds are recommended for higher vacuum use that do not require air-free or inert gas purging (Please use our double bank manifolds for inert gas blanketing). Use the largest valve for the highest vacuum.
Valves are 0-4mm, 0-8mm, or 0-12mm PTFE piston style valves. Main tube OD is 25mm, 38mm and 51mm respectively. Ports are spaced apart 2x the OD of the main tube. 0-4mm valve has 3/8" barbs, 0-8 and 0-12mm have 1/2" barbs.
Please contact us for other sizes or styles not listed, for example we can replace the hose barbs with GL-14 or GL-18 threaded connections.
Be Made From G3.3 Borosilicate Glass
Annealing Point ------560℃
Linear Coefficient of Expansion------ 33×10-7/℃
Softening Point------820℃


Technical Parameters

Vacuum Manifold
Description	Photo	PN	Spec

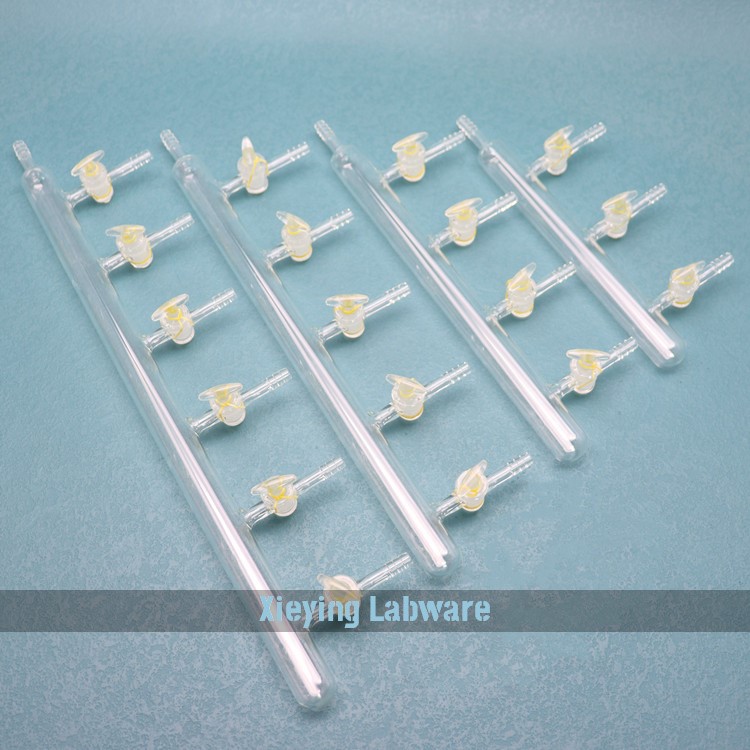

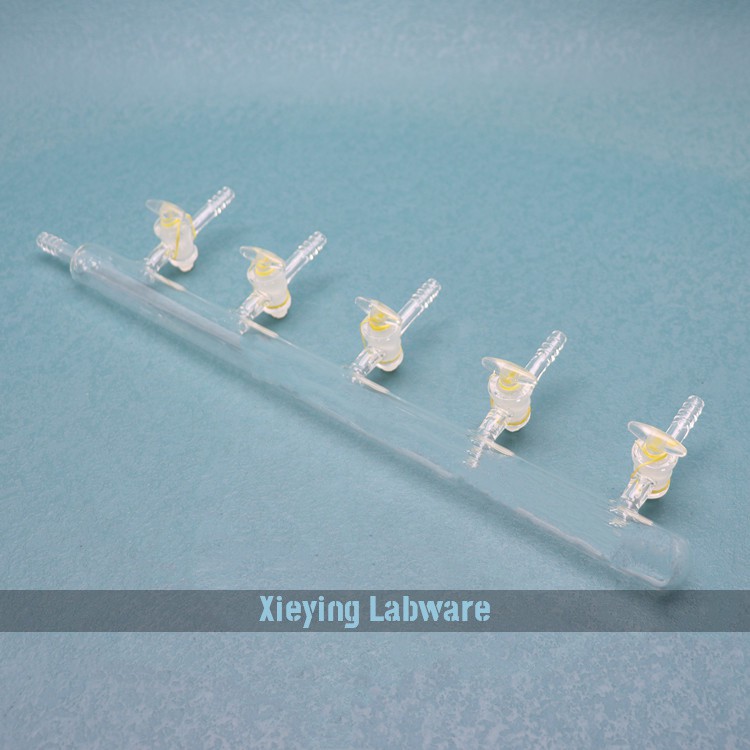

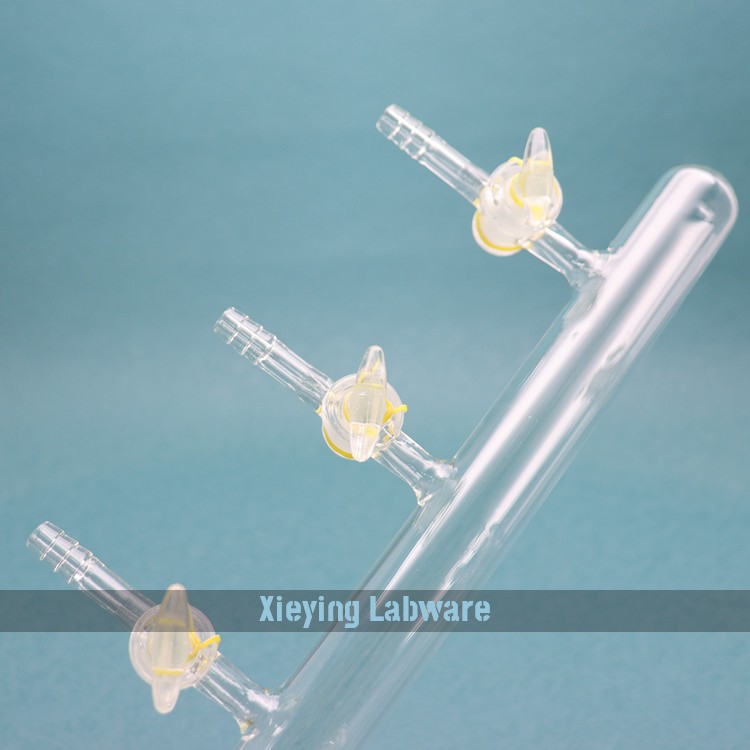

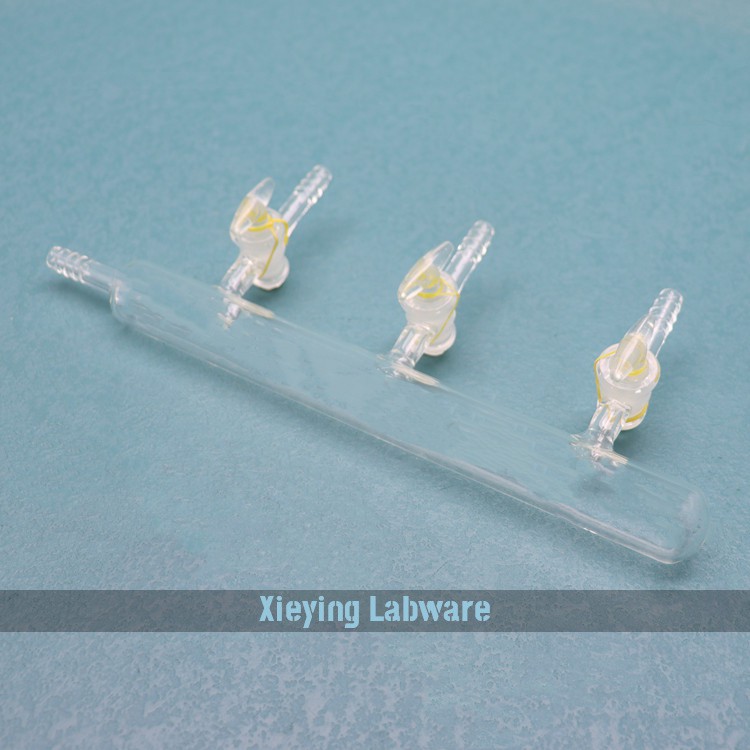

Vacuum Manifold with Glass Stopcock		A22801	Three Ports

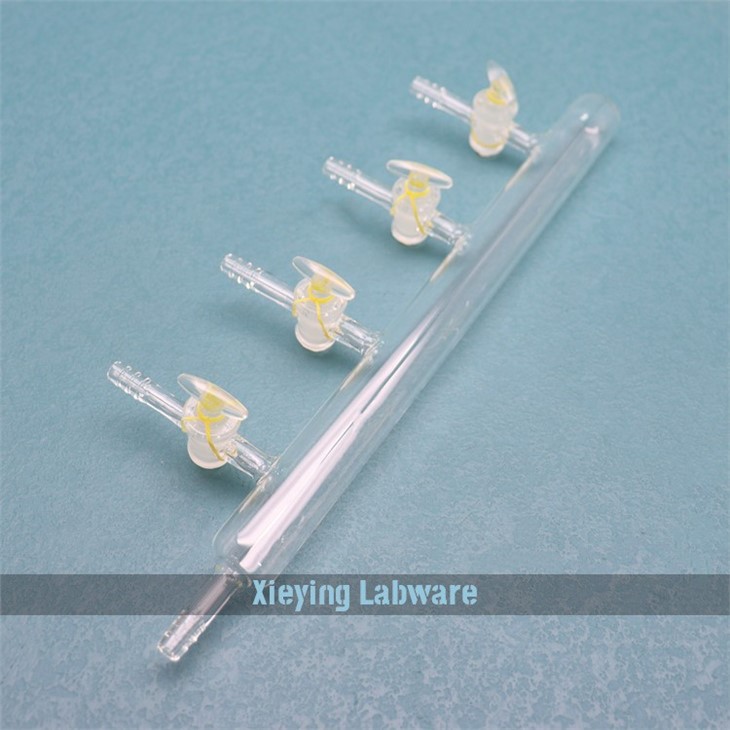

		A22802	Four Ports
		A22803	Five Ports

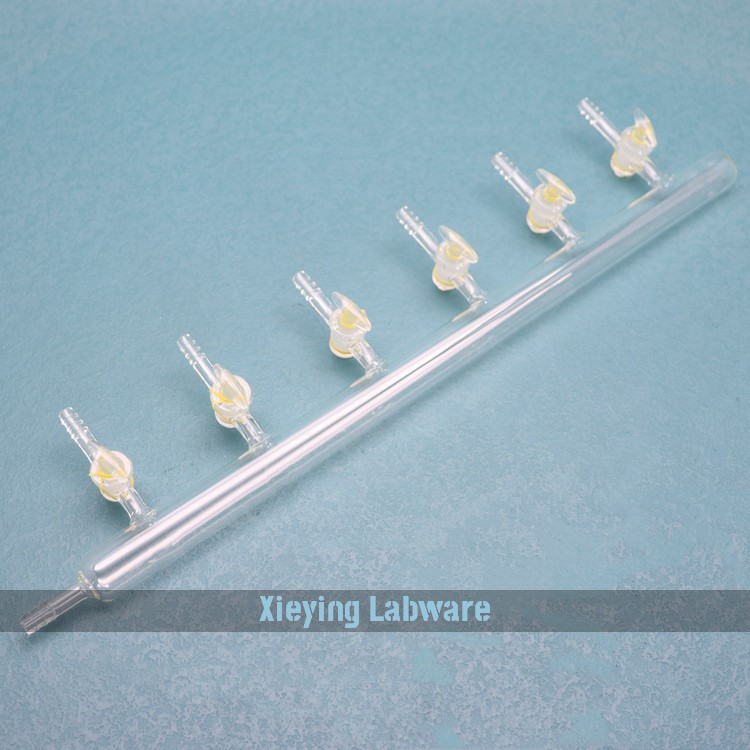

		A22804	Six Ports

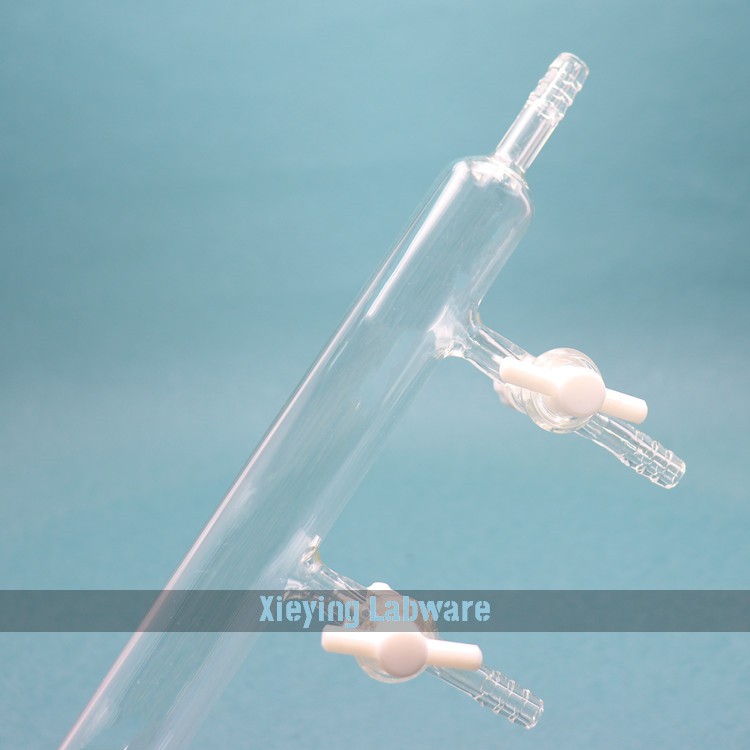

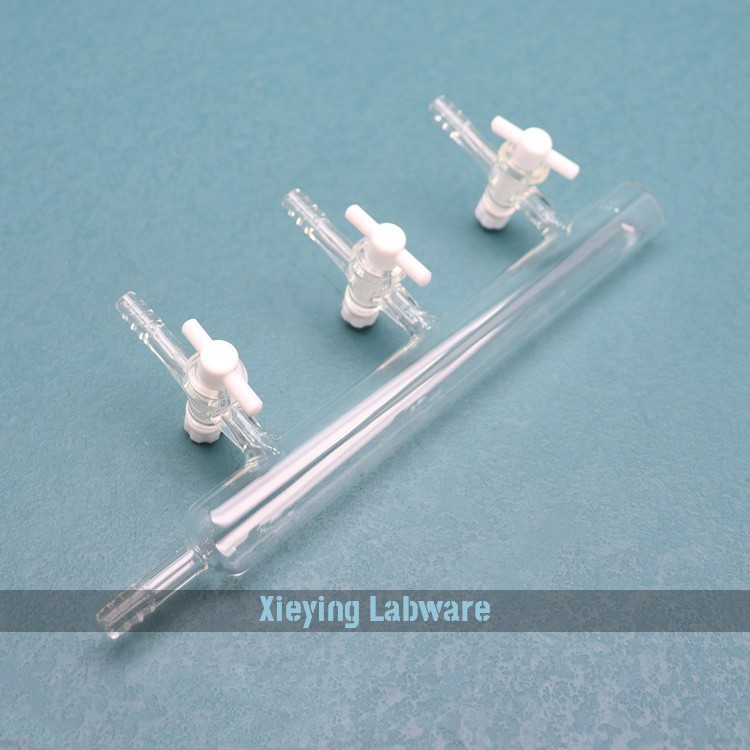

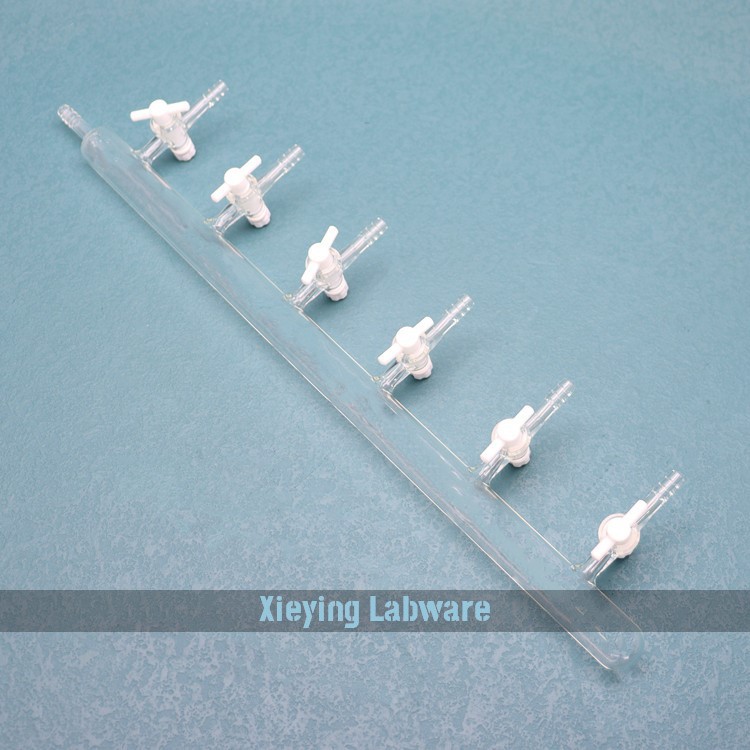

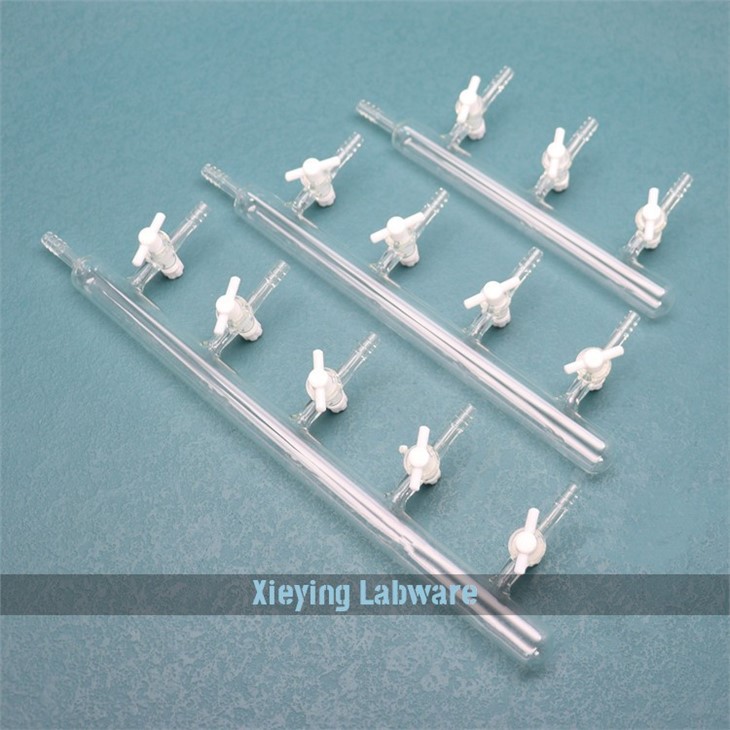

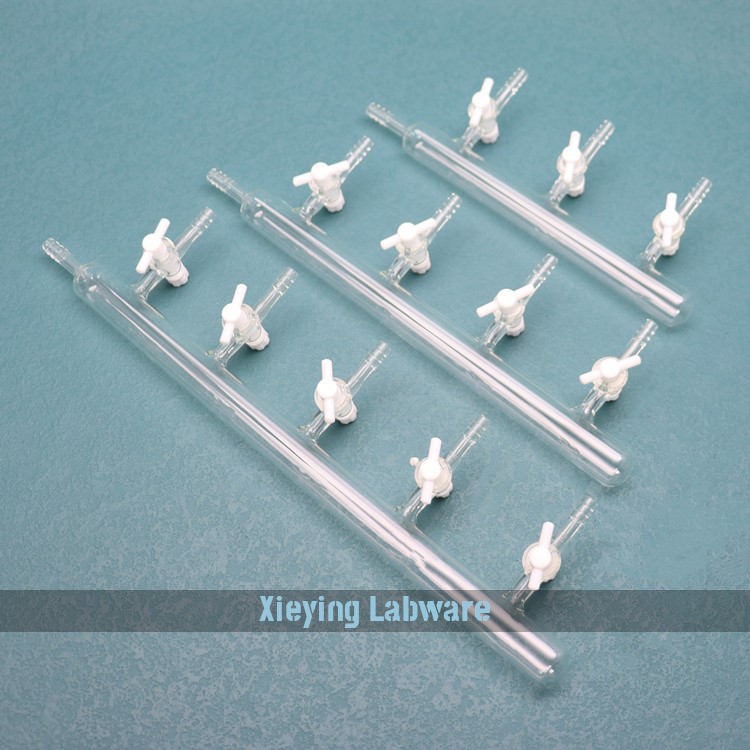

Vacuum Manifold with PTFE Stopcock		A22805	Three Ports

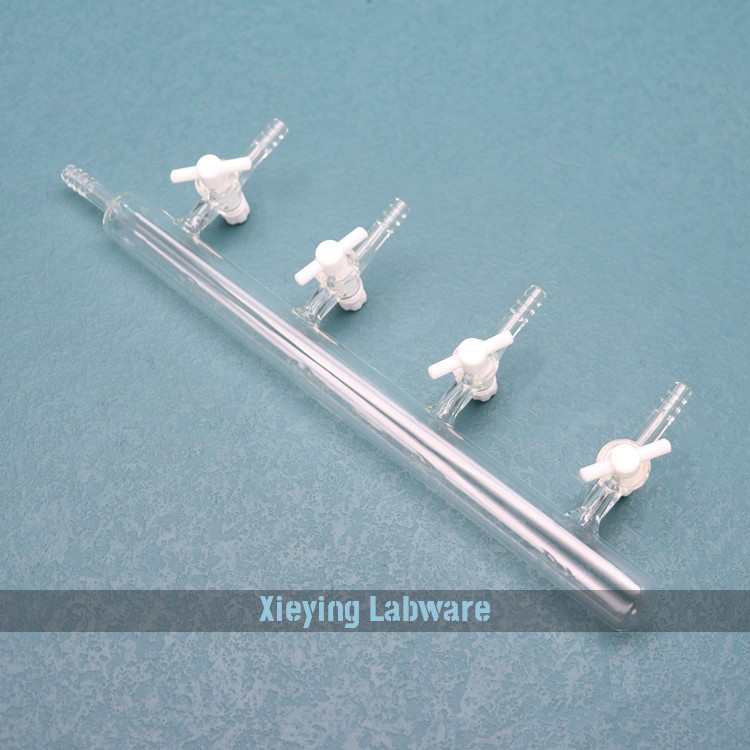

		A22806	Four Ports
		A22807	Five Ports
		A22808	Six Ports
Double Vacuum Manifold with Glass Stopcock		A22901	Three Ports
		A22902	Four Ports
		A22903	Five Ports
		A22904	Six Ports
Double Vacuum Manifold with PTFE Stopcock		A22905	Three Ports
		A22906	Four Ports
		A22907	Five Ports
		A22908	Six Ports
Double Vacuum Manifold with High Vacuum Valve		A23001	Three Ports
		A23002	Four Ports
		A23003	Five Ports
		A23004	Six Ports
