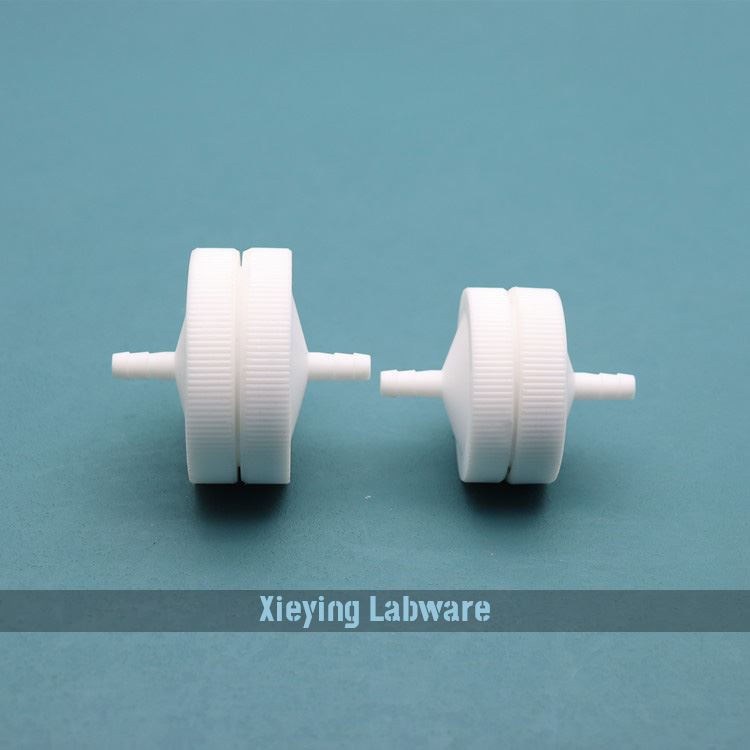

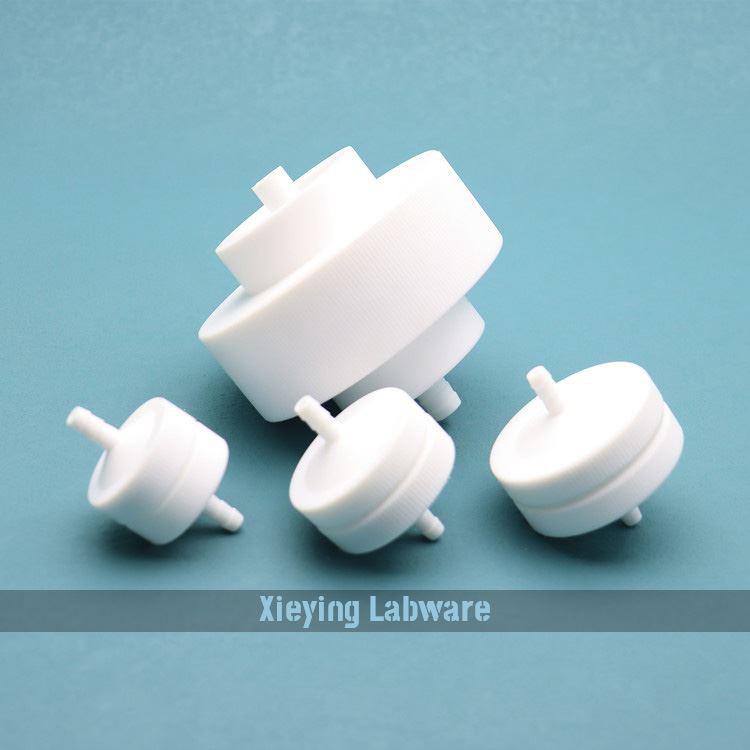

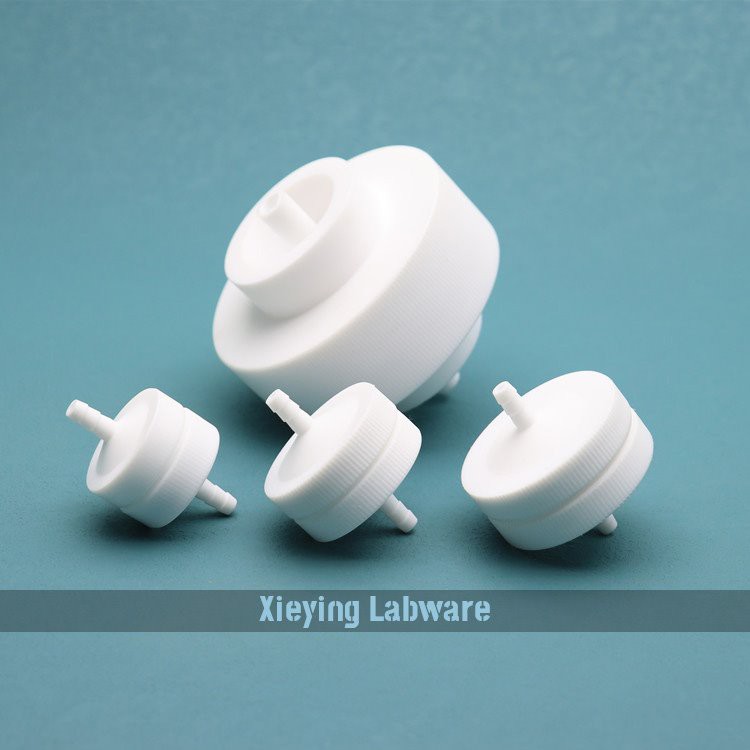

PTFE Filter Holders

PTFE Filter Holders

1. Description: Lab use reusable PTFE filter holder for filter membrane with barb tip end

2. Material: PTFE

3. Color: white

4. Size: 13mm, 25mm, 37mm, 40mm, 47mm, 50mm, 90mm (support customization)

5. Usage: Used with filter membrane, used for filtering medicine and laboratory.

Features

1. Corrosion resistance

2. Good sealing

3. Full specifications new materials

About

1. Hard to create excellence in quality

2. High and low temperature work: the working temperature of 280℃, can be heated in asbestos net. Moderate mechanical toughness, 5% elongation even at -196℃

3. Not easy to corrosion aging: PTFE material is not easy to be acid and alkaline solution corrosion, longer use time

4. Anti-slip design: the inlet and outlet of liquid have anti-slip design to prevent liquid leakage

Application

Polytetrafluoroethylene hydrogen chloride sampling filter holder

The filter holder is generally used for environmental detection of hydrogen chloride in hJ549-2016 standard, and is used for sampling. When sampling, the filter membrane is clamped in the filter membrane holder, which is connected in series with two impact absorption bottles and connected with the air sampler. Ambient air distribution and sampling shall comply with HJ664 and HJ/T194. During sampling, the filter membrane is clambed into the filter membrane holder, and then two 25mL impact absorption bottles, each filled with 10ml water as the absorption liquid, are connected with the air sampler in series. The sampling flow rate is 0.5L/min to 1.0L/min, and the sampling flow deviation should be less than or equal to 5%. It also conforms to the schematic diagram of HJ688-2019 fixed source waste gas hydrogen fluoride sampling device.
