Glass Condenser

Glass Condenser

1. Description: High Borosilicate Glass Condenser with Ground-in Mouth

2. Color: Clear / Transparent

3. Material: Borosilicate glass 3.3

4. Length: 200mm/250mm/300mm/400mm/500mm/600mm

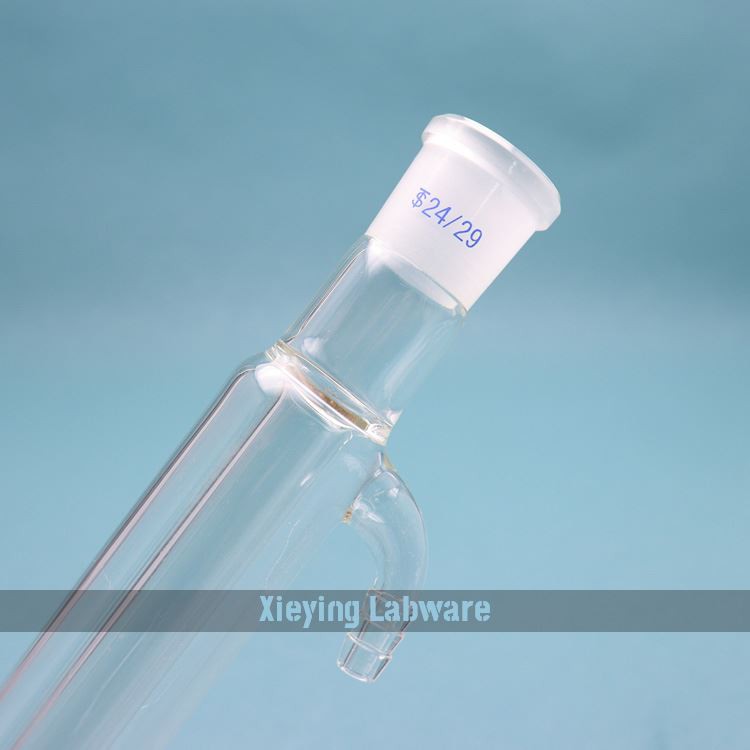

5. Size of ST joint: 14#/14#, 19#/19#, 24#/24#, 29#/29#.

6. Application: Laboratory, Chemical, School

7. Thermal expansion coefficient (0-300℃)3.3±0.1×10-6k-1

8. Maximum working temperature: Short time(<10h): 500℃, Long time(>10h): 450℃

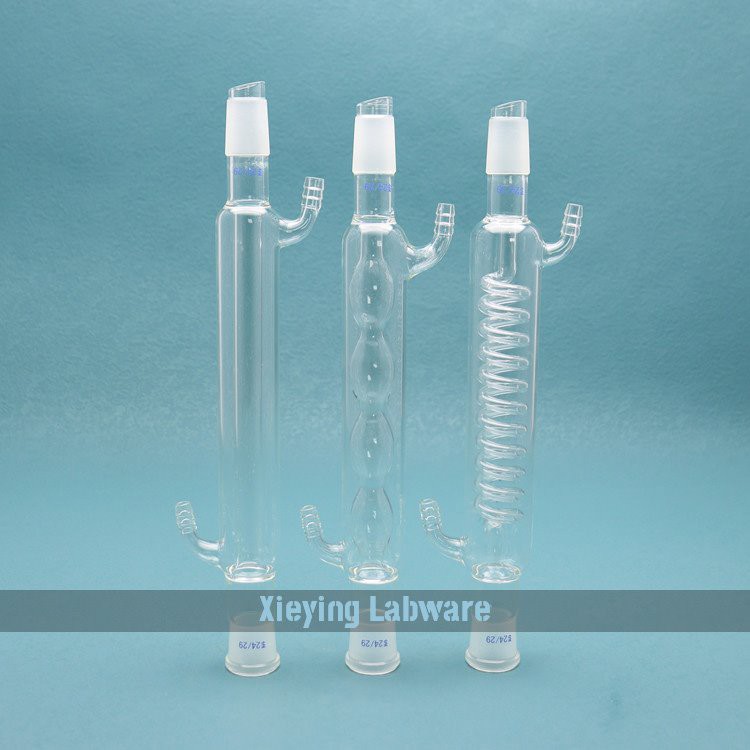

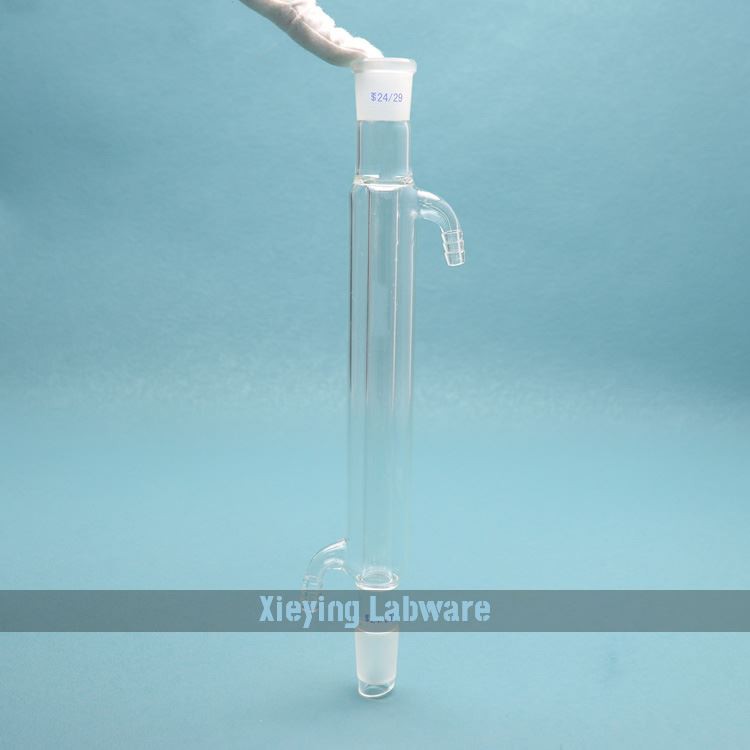

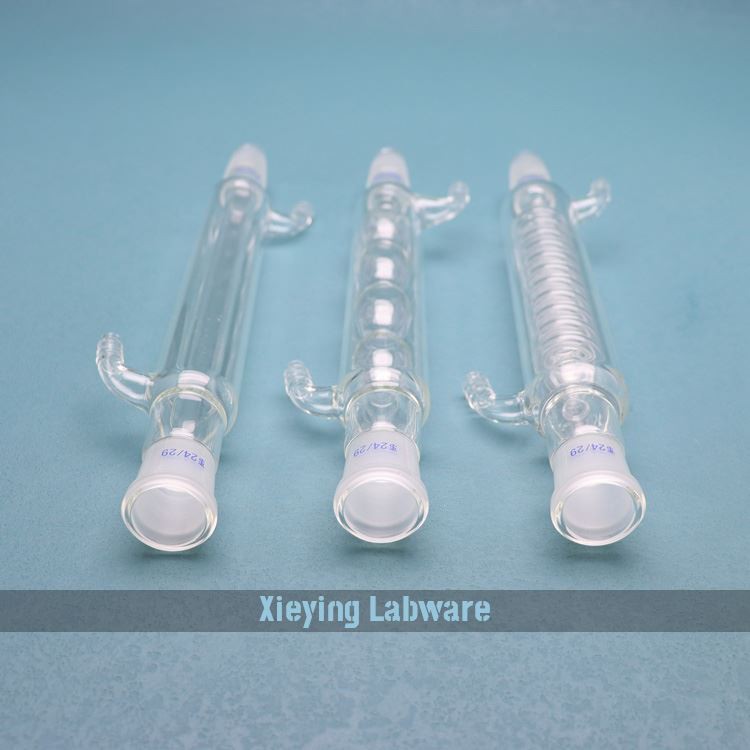

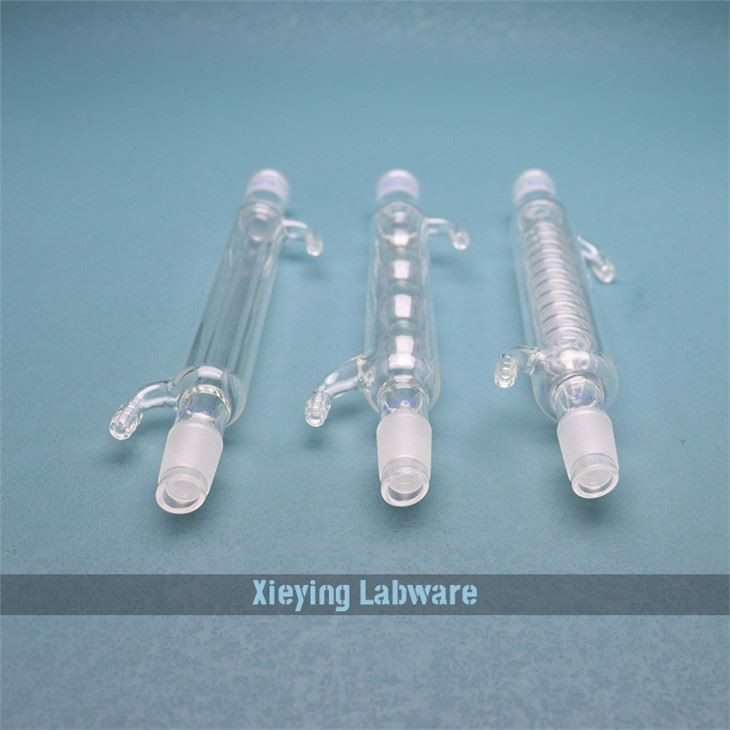

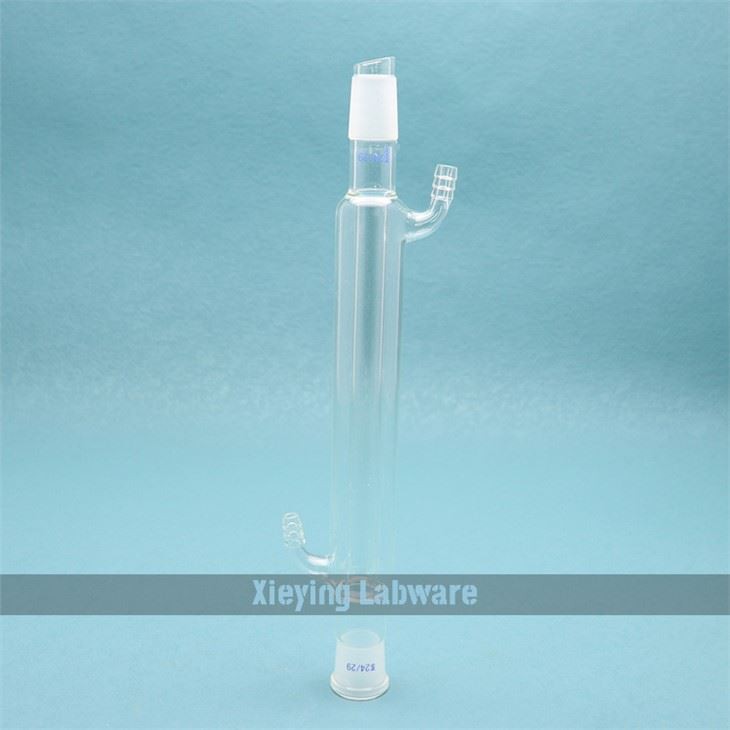

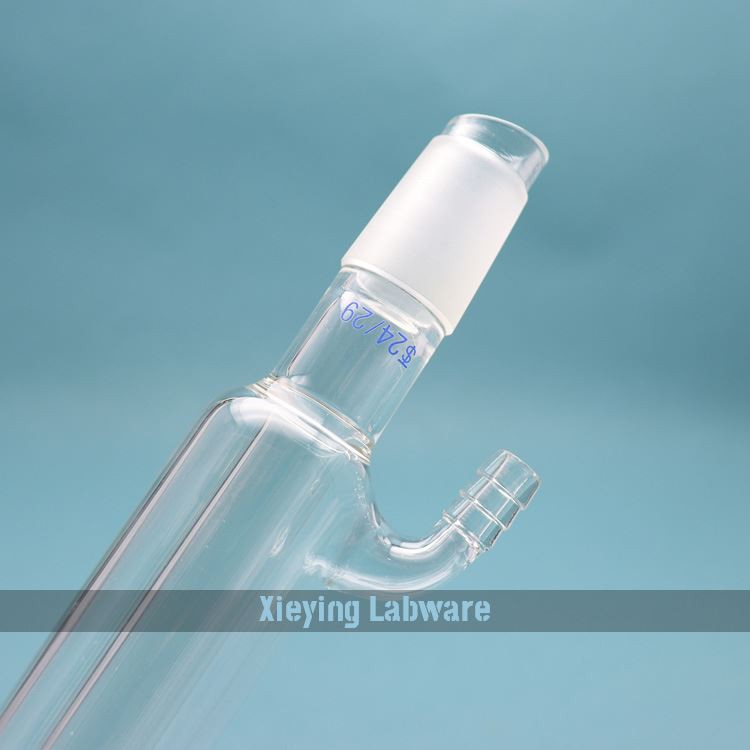

9. Types: (1)With fused inner tube, Liebig

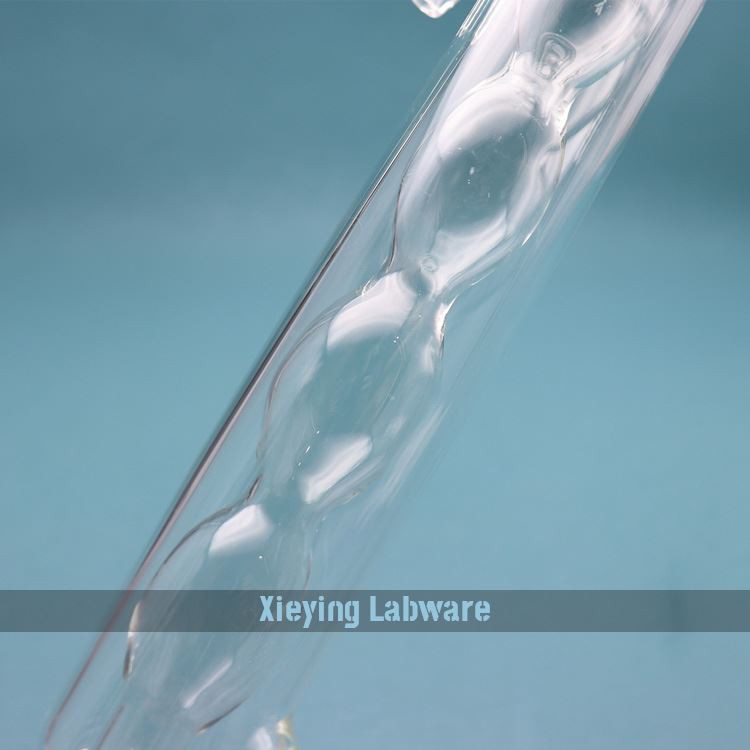

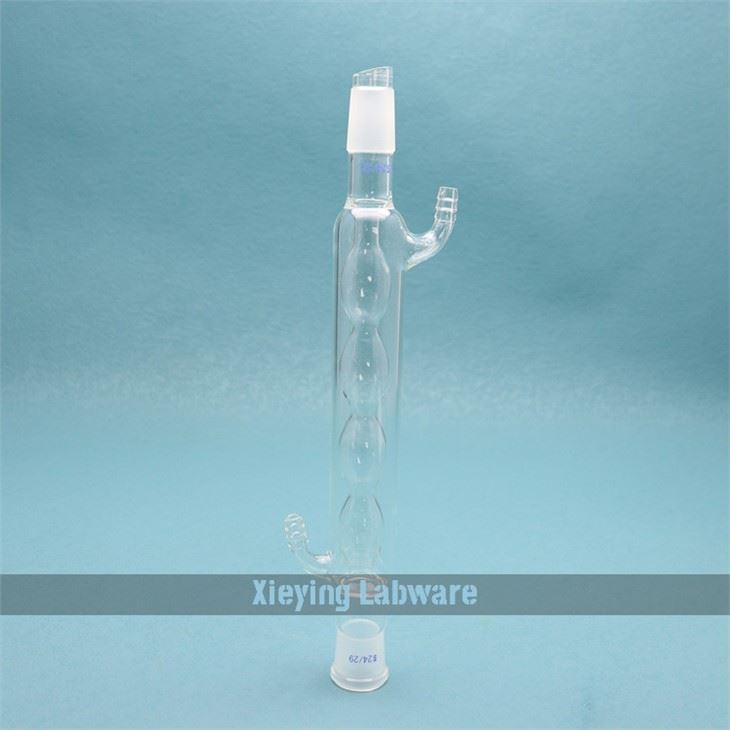

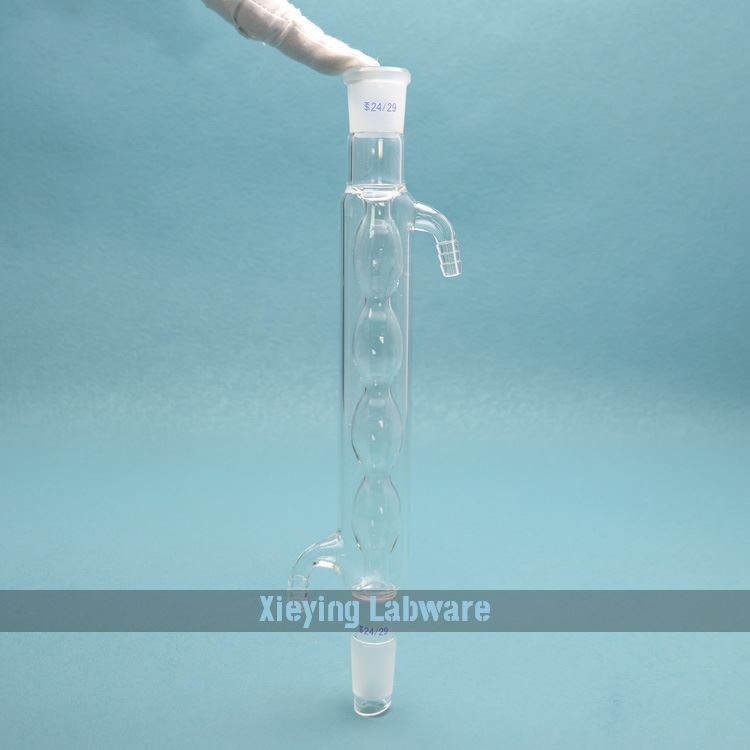

(2)With bulbed inner tube, Allihn

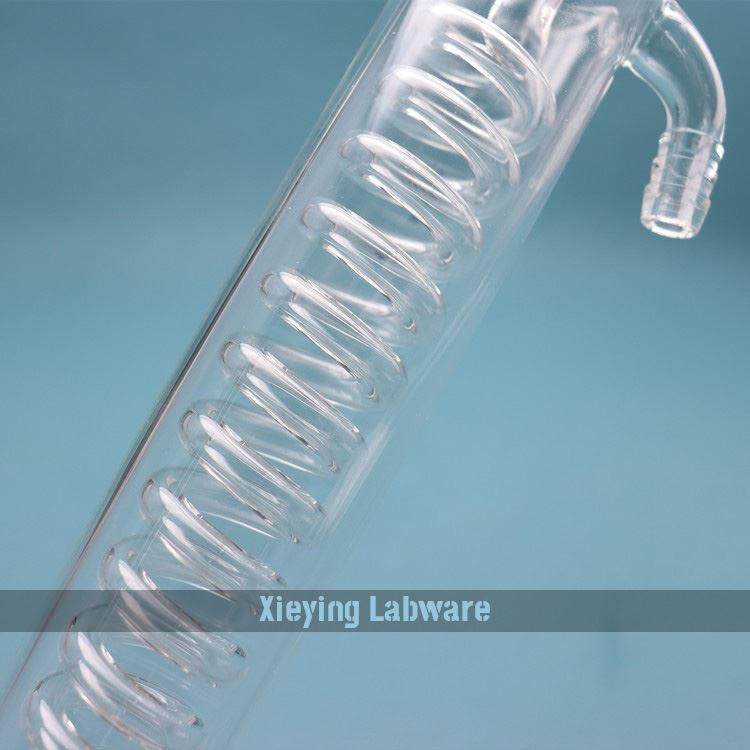

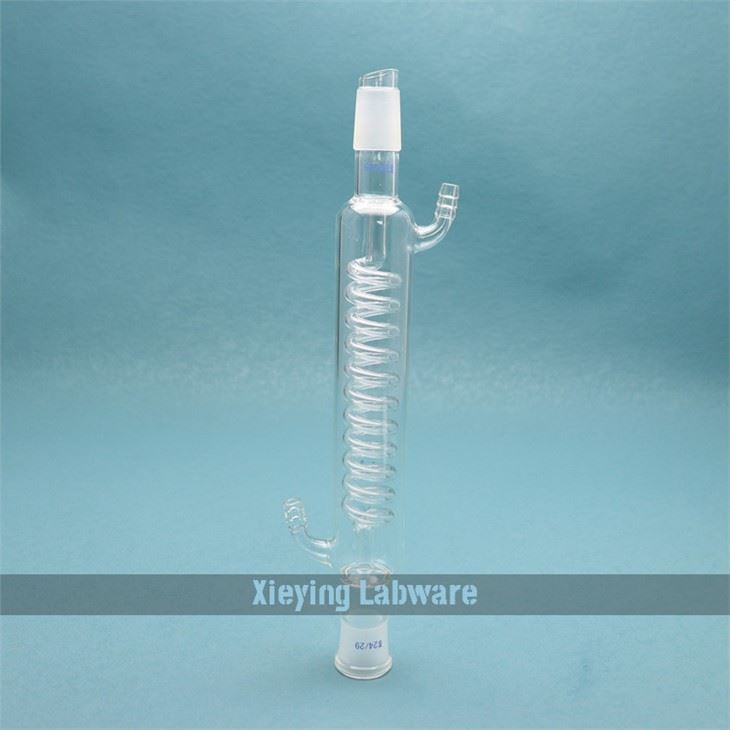

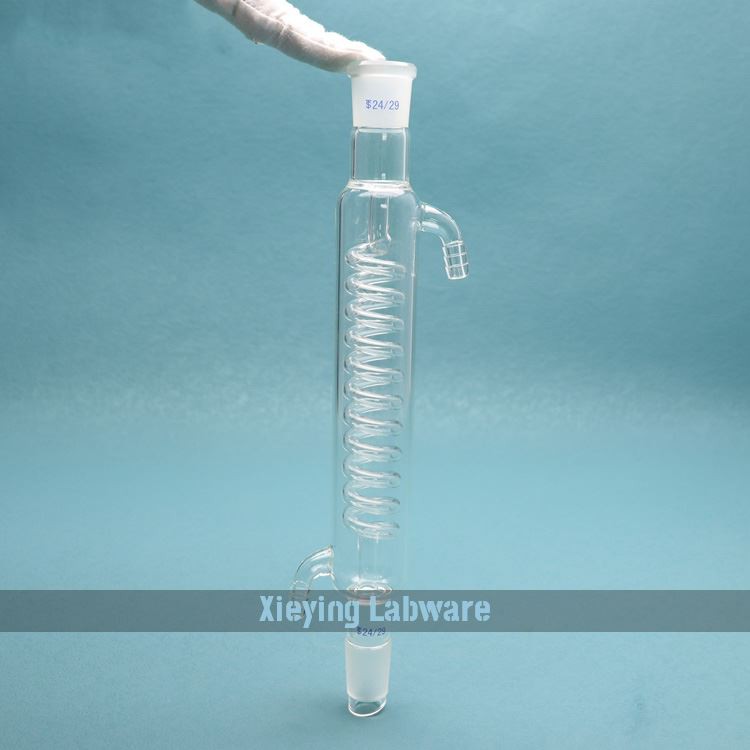

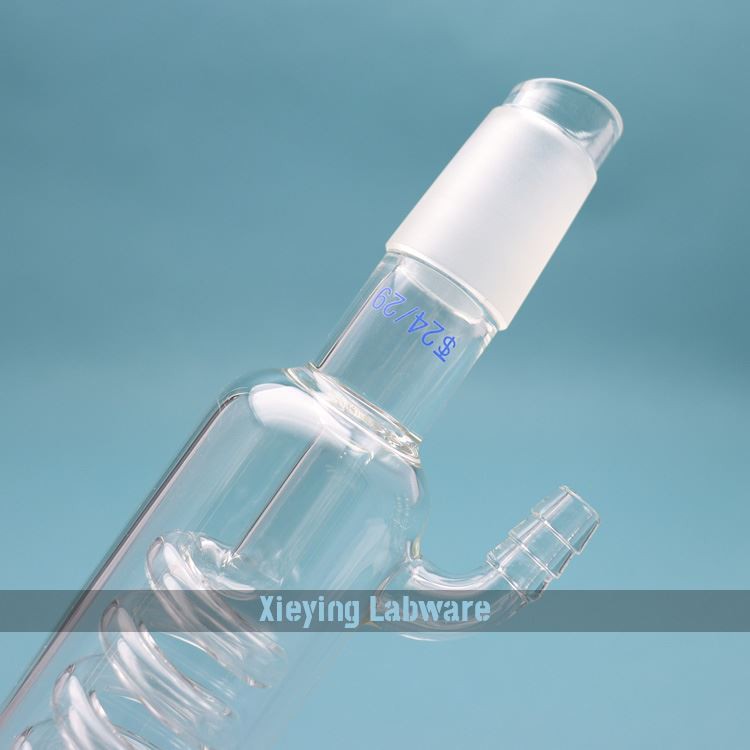

(3)With coiled inner tube, Graham

10. OEM is available

11. Sample: Offered

12. Place of origin: Yancheng city, China

Advantages

1. Heat&chemical Resistant

2. High purity, no bulb and trace

3. Various specifications

4. International standard

5. Glass tube mechanization production

About

Usage-- The condensing pipe is composed of a combination of inner and outer glass pipes. There are connecting pipe joints on the upper and lower sides of the outer pipe. The water supply port and the water outlet condensing pipe should be connected with the plastic pipe when the lower end connection port is used. The faucet, as the water inlet, is heated by the steam because the water temperature at the inlet is low, and the temperature is higher; the hotter water of the steam will automatically flow upward due to the decrease in density, which helps the circulation of the cooling water. The condensation occurs on the inner wall of the inner tube. The space enclosed by the inner and outer tubes is such that the water area absorbs heat from the vapor and removes the heat.

Reminder-- the water inlet usually has a high water pressure. In order to prevent the water pipe from falling off, the plastic tube should be tied with a tube bundle. When used under reflux conditions, the lower end glass tube of the condensation tube should be inserted with a rubber stopper to enable plugging. Into the mouth of the flask, to receive the vapor evaporated upwards in the flask.
