Liebig Condenser

Liebig Condenser

1. Description: High Borosilicate Glass Condenser with Straight Inner Tube Ground-in Mouth

2. Color: Clear/ Transparent

3. Material: Borosilicate glass 3.3

4. Length: 200mm/250mm/300mm/400mm/500mm/600mm

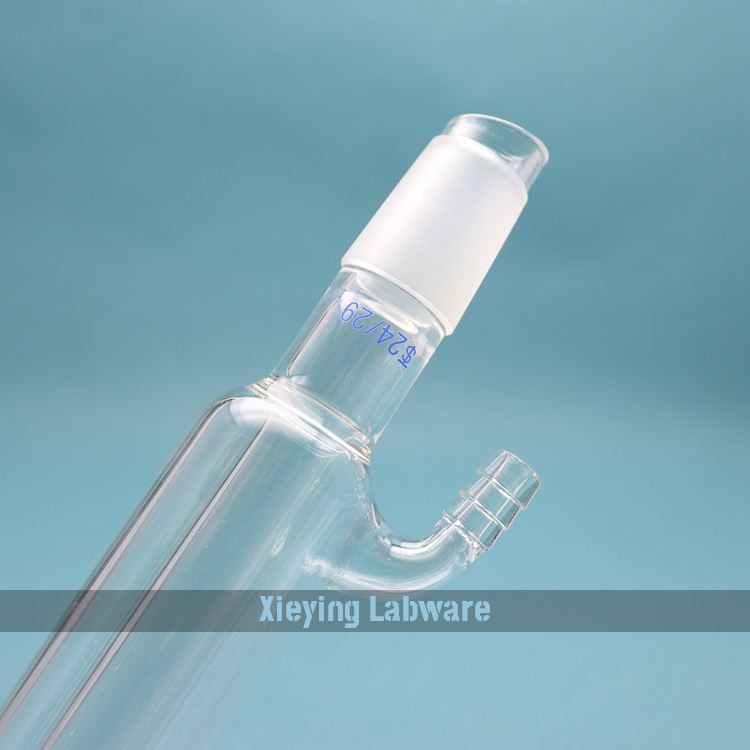

5. Size of ST joint: 14#/14#, 19#/19#, 24#/24#, 29#/29#.

6. Application: Laboratory, Chemical,School

7. Types: With fused inner tube, Liebig

8. Thermal expansion coefficient (0-300℃) 3.3±0.1×10-6k-1

9. Maximum working temperature: Short time(<10h):500℃,Long time(>10h): 450℃

10. OEM is available

11. Sample: Offered

12. Place of origin: Yancheng city,China

Advantages

1. The straight glass condenser tube is composed of straight glass tubes combined inside and outside. It is mostly used for distillation operation. The steam temperature is less than 140 degrees, and it is not used for reflux. There are connecting pipe joints on the upper and lower sides of the outer pipe, which are used as water inlets and water inlets.

2. How to use: When in use, connect the faucet to the faucet with a plastic tube as the water inlet. Because the water temperature at the water inlet is lower, and the water temperature after being heated by steam is higher, the hotter water will automatically flow upward due to the decrease in density, which will help the circulation of cooling water.

About

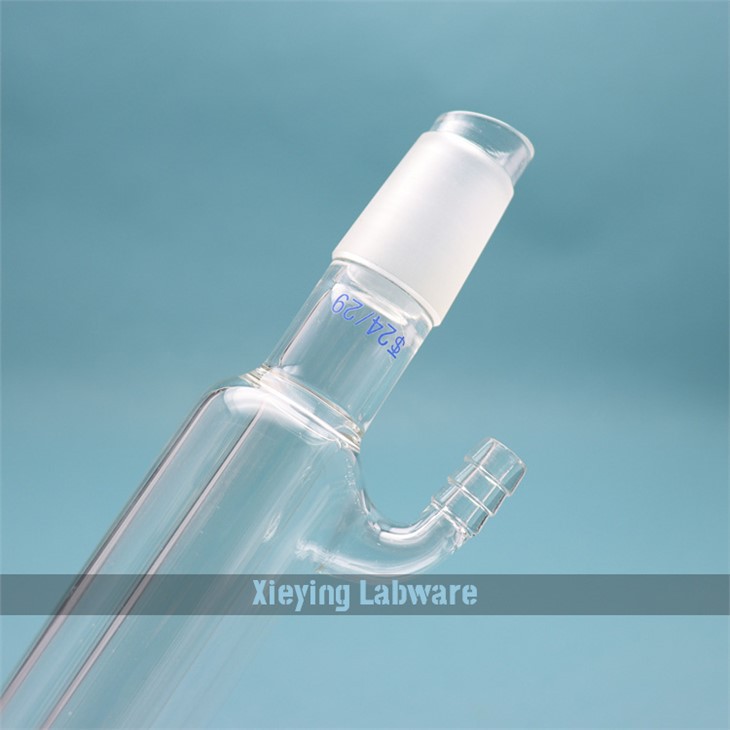

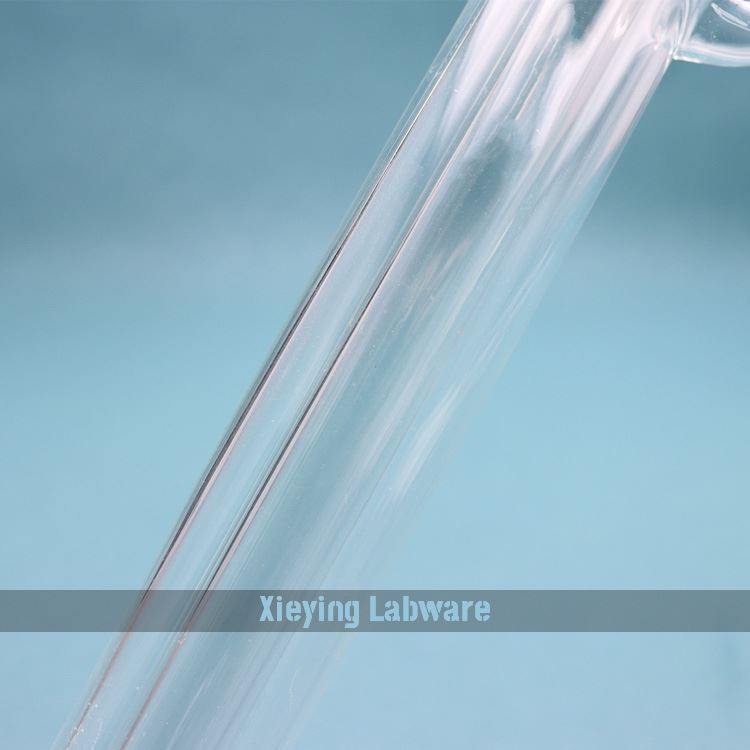

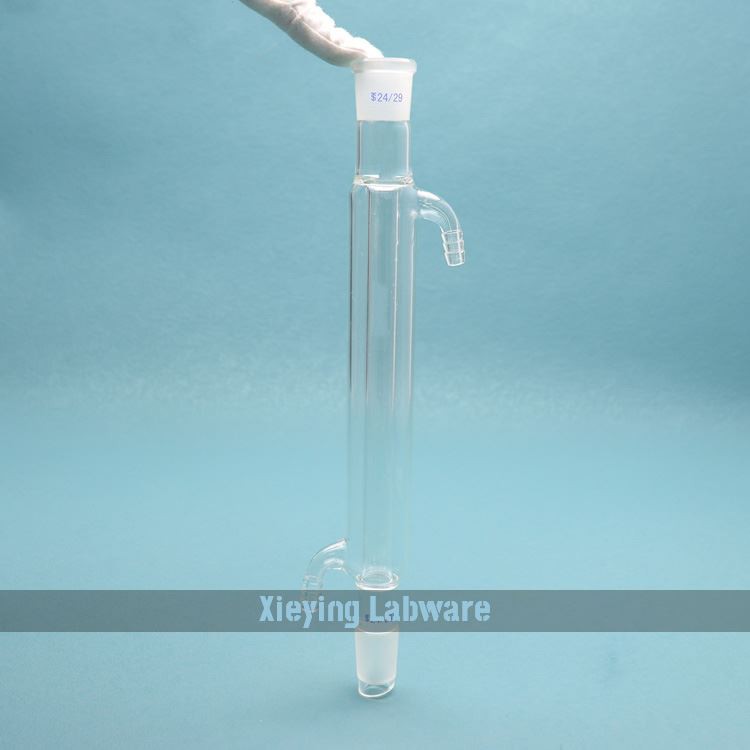

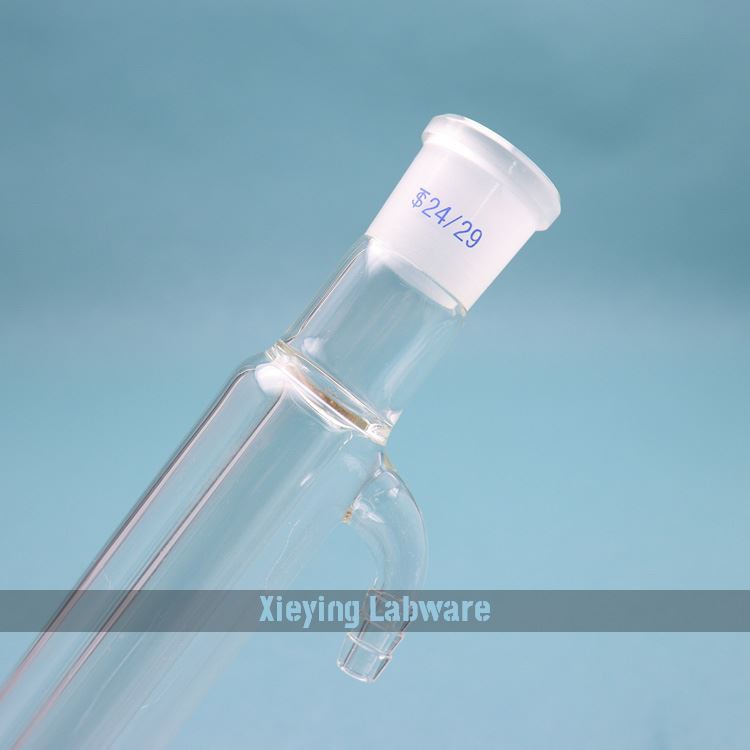

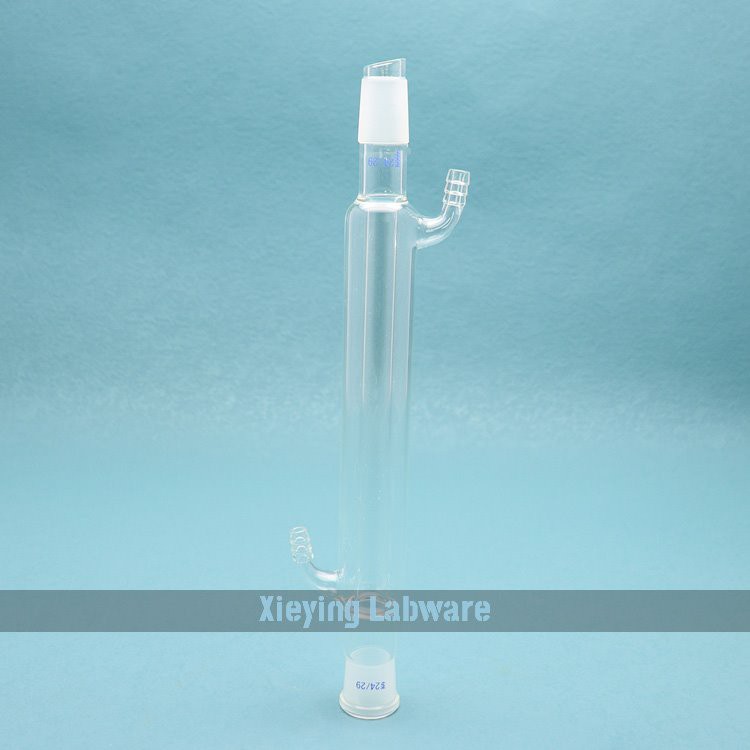

Liebig condensers are a simple condenser design used to cool and condense hot vapor as part of a distilling apparatus. This 300 mm condenser has a straight inner tube that the condensing vapor passes through and a large outer jacket that cooling water passes through.
