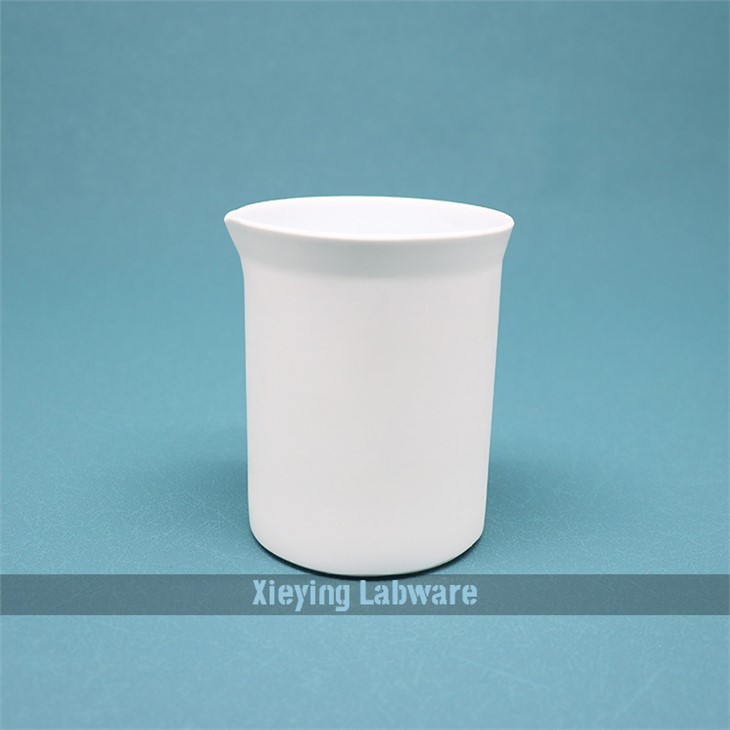

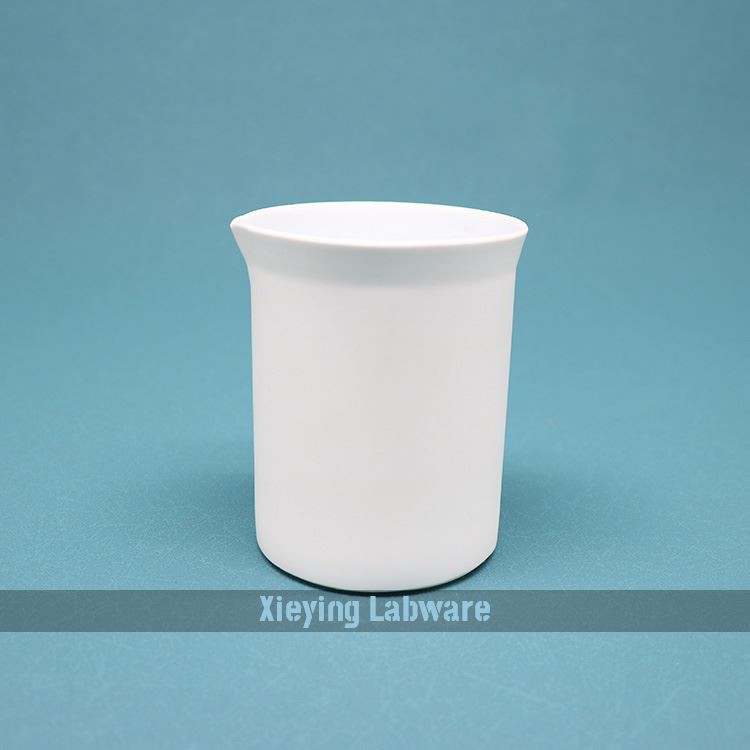

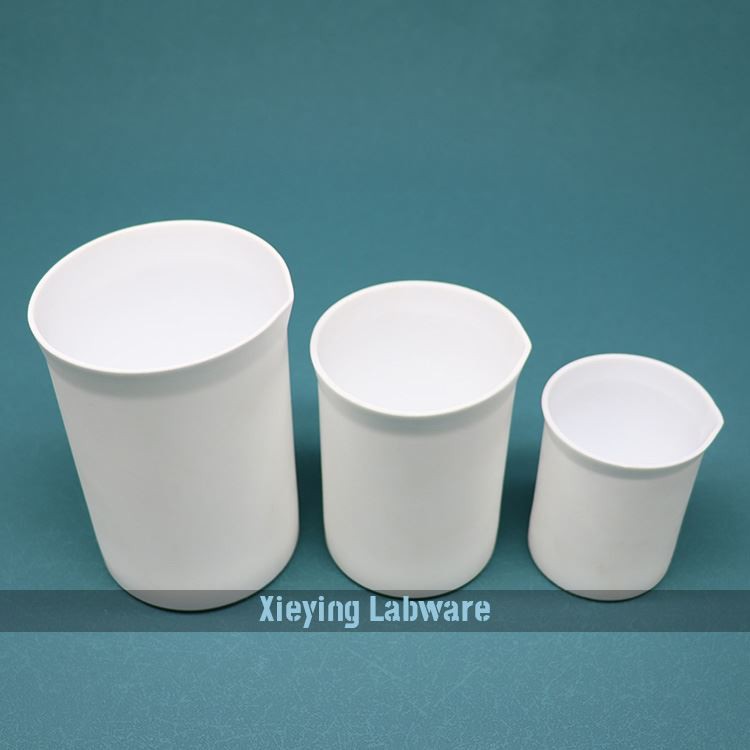

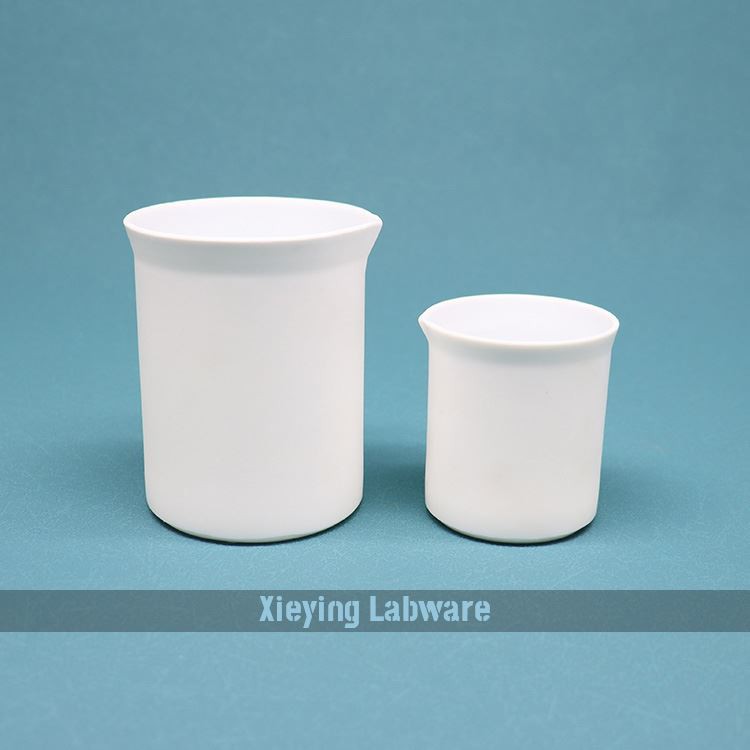

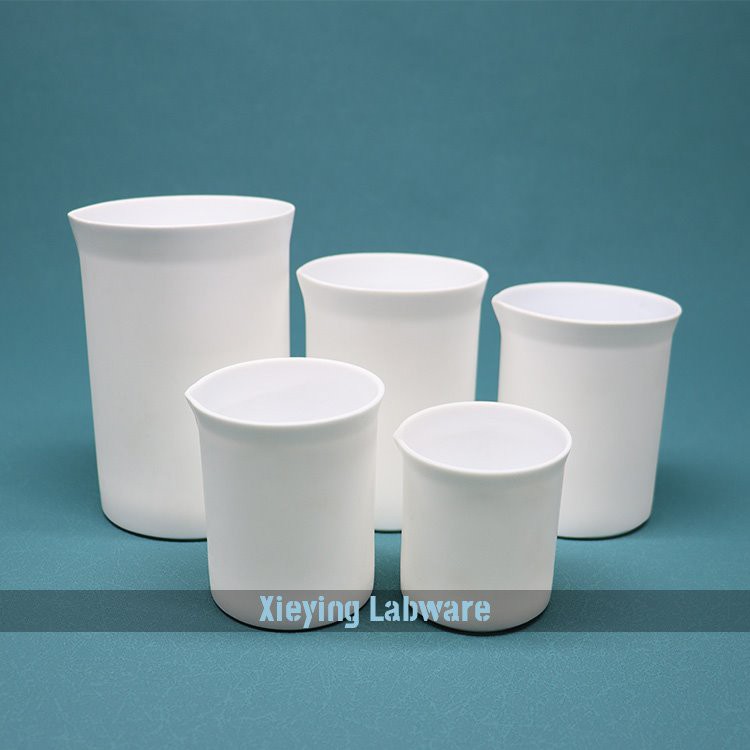

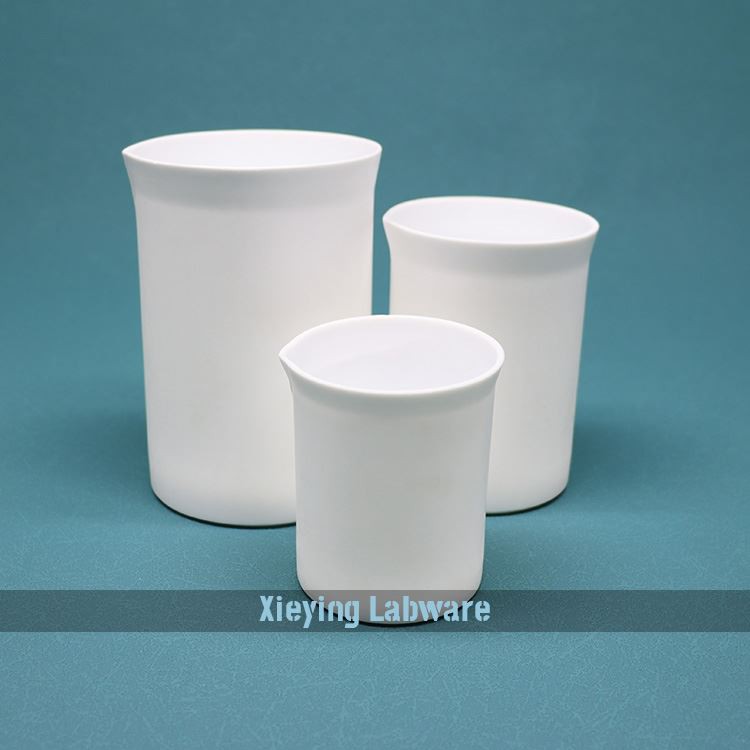

PTFE Measuring Beaker
Product Name: PTFE Measuring Beaker Low Form
Material: PTFE/Teflon
Capacity: 30ml-5000ml
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
1. Product Name: PTFE Measuring Beaker Low Form
2. Material: PTFE/Teflon
3. Capacity: 30ml-5000ml
4. Color: Pure white
5. Temperature: -200-260℃
6. Application: Chemical Laboratory, Industrial
About PTFE Measuring Beaker
Using temperature between 200℃-260℃.
Do not get close to fire,should be used on asbestos plate,it is able to stand 340℃ in short period.
It can be used for sterilization,boiling and evaporation ect.
Features

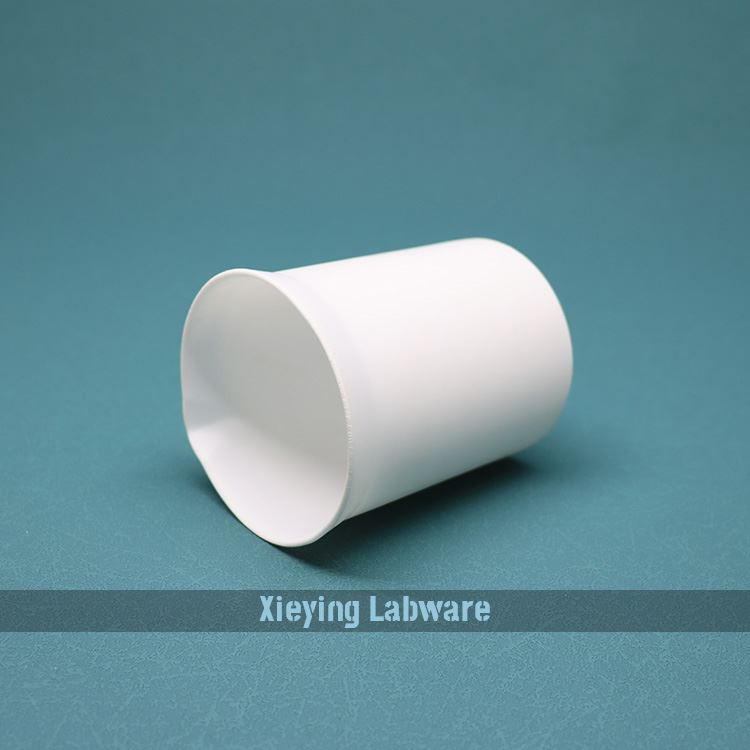

Secondary diversion mouth
It's easier to pour liquid
The pouring is more stable
No spatter, more safe
Pure PTFE
High lubrication
Almost no adhesion
Thicken edge
Non-slip design
Flat base enables a flat contact with the surface for effective heat transfer.
PTFE Technical Data Sheet
Property | Method | Units | Specifications |
Density | ISO 13000-1 | g/cm3 | 2.1-2.3 |
Tensile strength | ISO 13000-1 | Mpa | 25-35 |
Elongation | ISO 13000-1 | % | 250-350 |
Hardness | ISO 868 | Shore D | 54-60 |
Deformation under load | ASTM D695 | % | 10-13 |
Coefficient of static friction | ASTM D1894 | 0.08-0.10 | |
Coefficient of dynamic friction | ASTM D1894 | 0.06-0.08 | |
Thermal conductivity | ASTM C177 | W/m.K | 0.24 |
Dielectric constant(e) | ASTM D150 | / | 2.1 |
Volume Resistivity | ASTM D257 | Ohm-cm | 1018 |
Flammability | UL 94 | % | VE-0 |
Water absorption | ASTM D570 | % | 0.01 |
Service temperature | -200~+260℃ | ||
Chemical resistance | Perfect |
PTFE Beaker | |||||
Description | Photo | PN | Spec | Dia(mm) | Height(mm) |

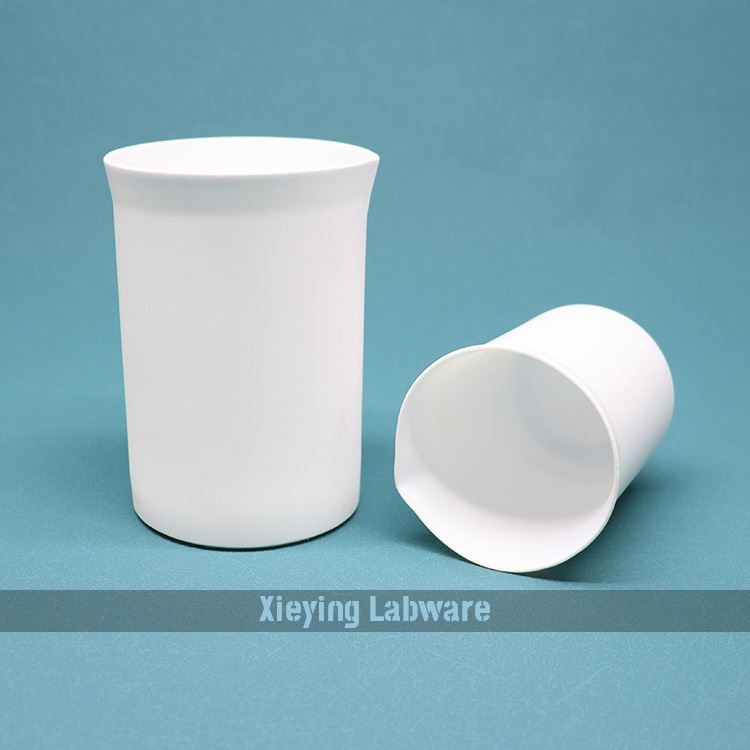

PTFE Beaker |
| C00101 | 30ml | 38 | 50 |
C00102 | 50ml | 46 | 55 | ||
C00103 | 100ml | 58 | 64 | ||
C00104 | 150ml | 63 | 79 | ||
C00105 | 200ml | 71 | 79 | ||
C00106 | 250ml | 73 | 90 | ||
C00107 | 300ml | 80 | 100 | ||
C00108 | 400ml | 100 | 105 | ||
C00109 | 500ml | 100 | 110 | ||
C00110 | 1000ml | 110 | 145 | ||
C00111 | 2000ml | 140 | 200 | ||
C00112 | 3000ml | 160 | 225 | ||
C00113 | 5000ml | 180 | 280 | ||

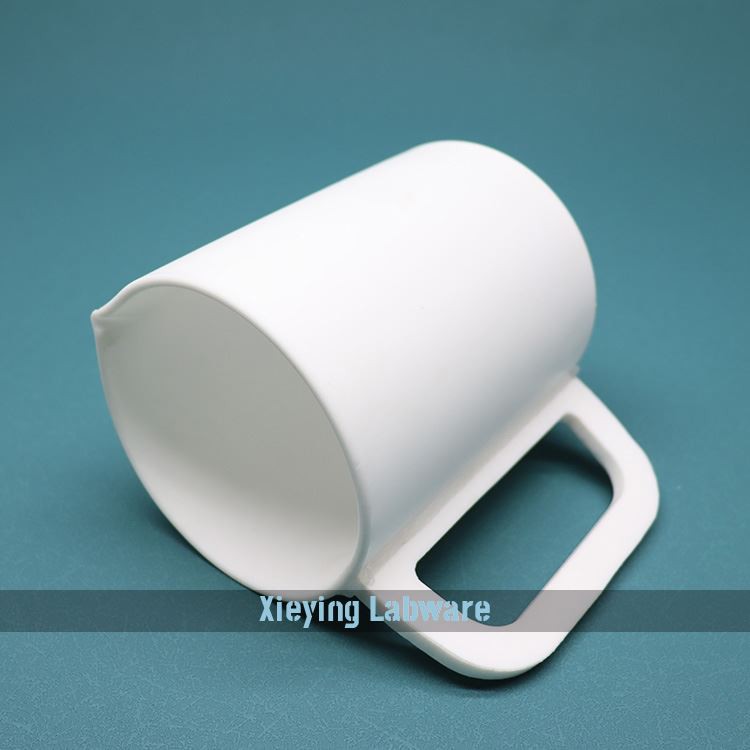

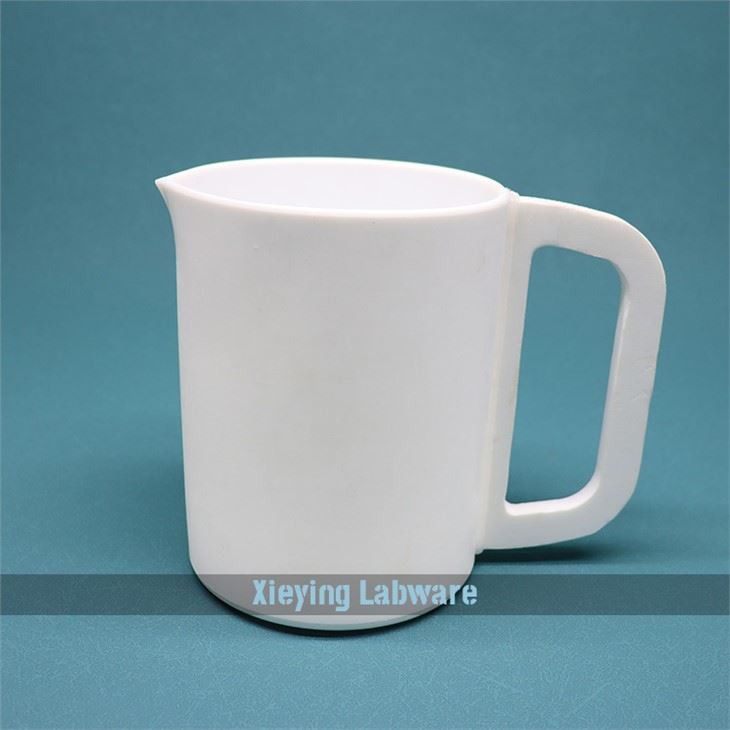

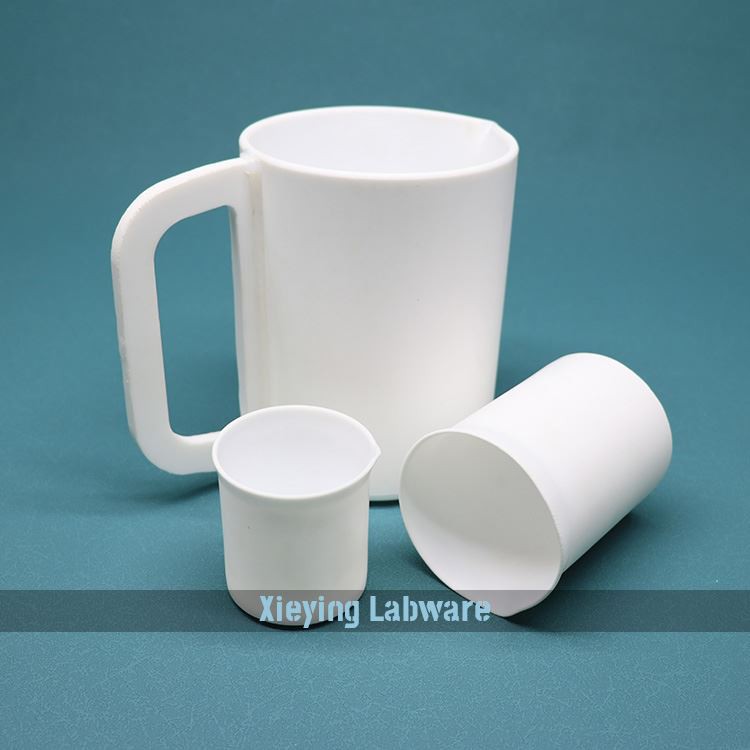

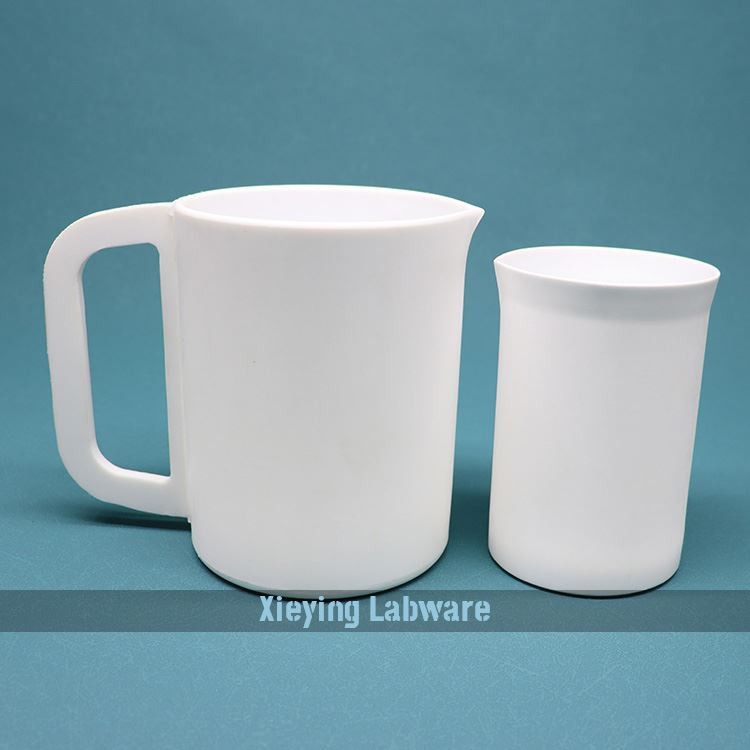

PTFE Beaker with Handle |
| C00201 | 1000ml | 110 | 145 |
C00202 | 2000ml | 140 | 200 | ||
C00203 | 3000ml | 160 | 225 | ||
C00204 | 5000ml | 180 | 280 | ||
