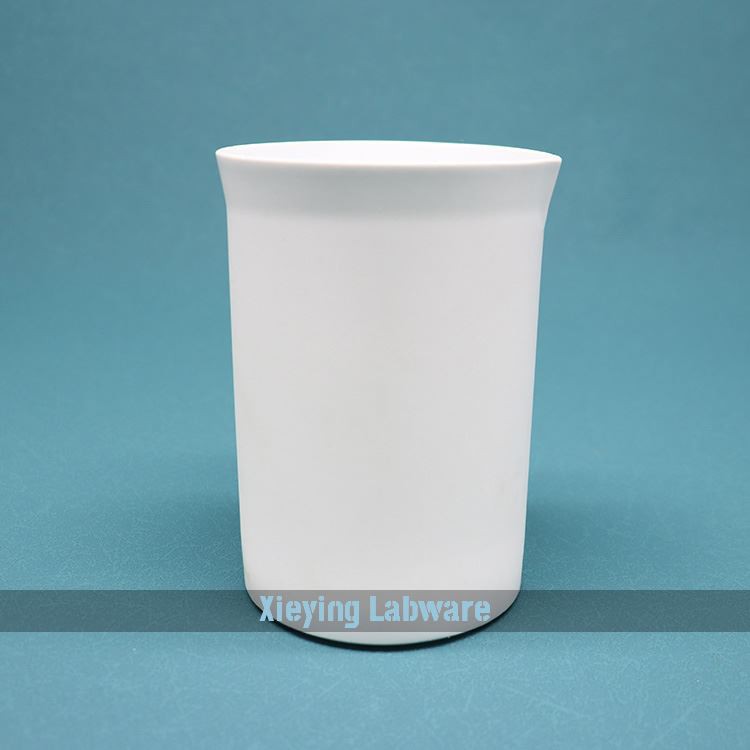

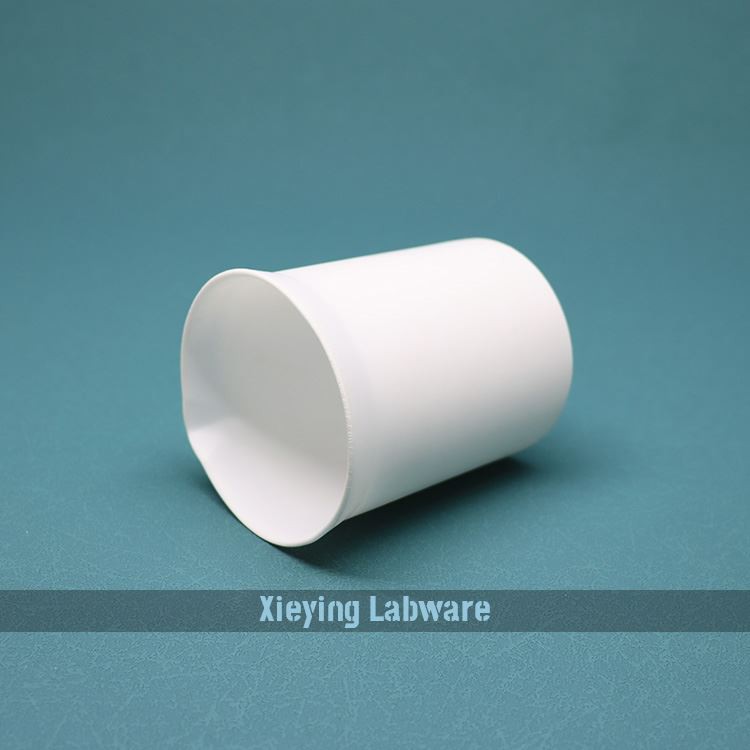

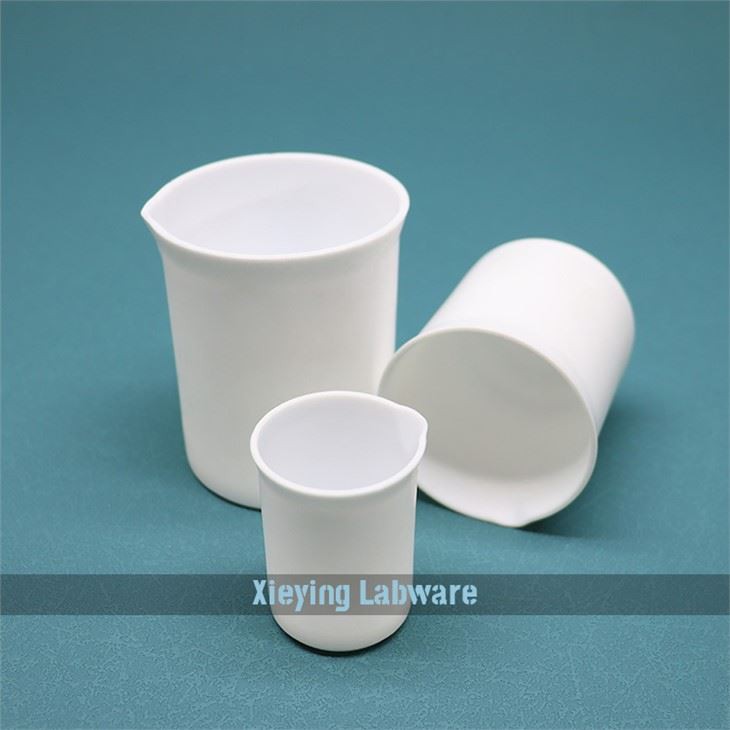

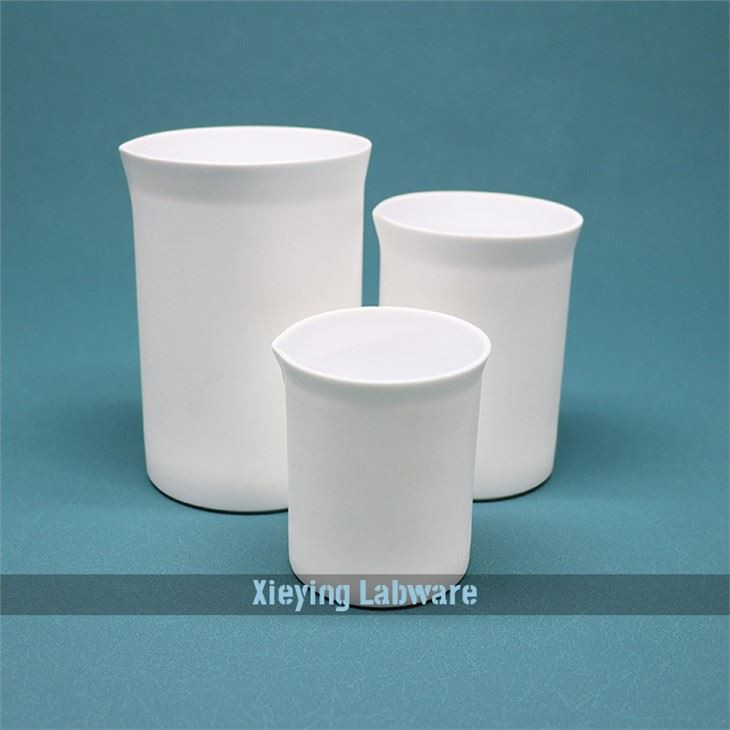

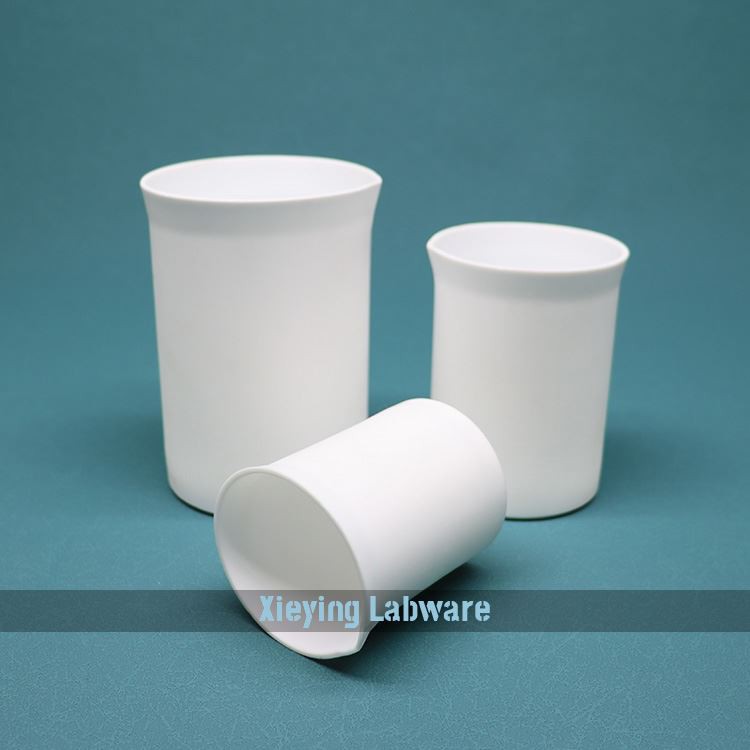

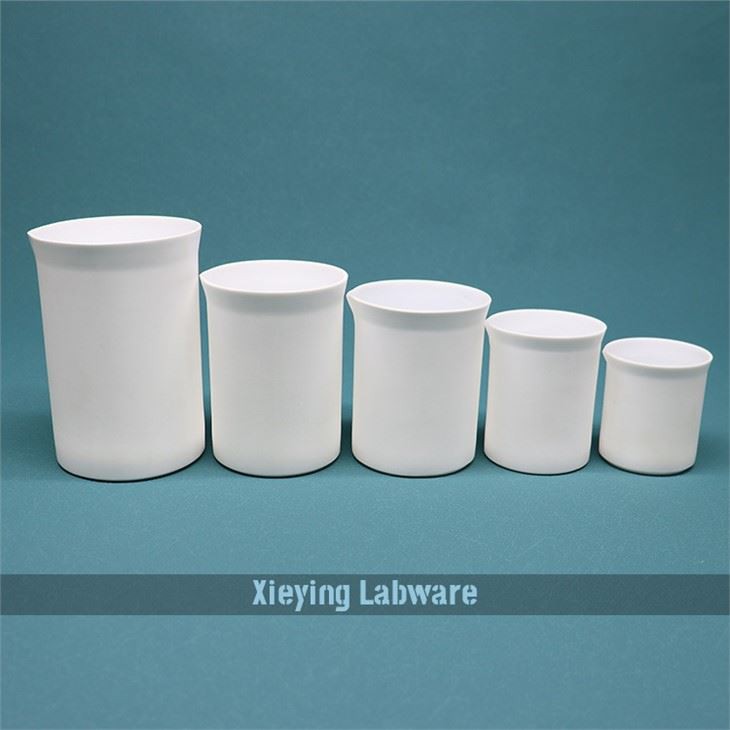

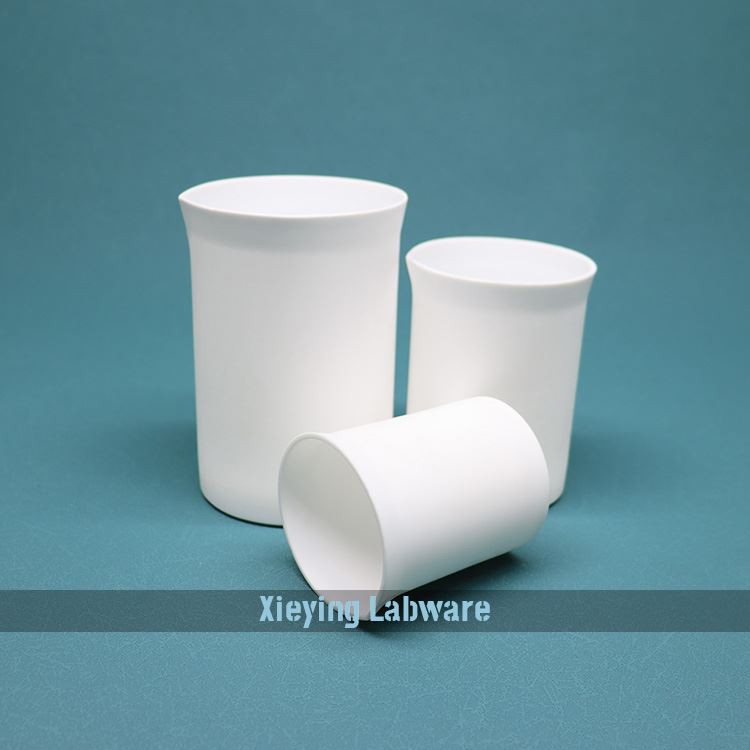

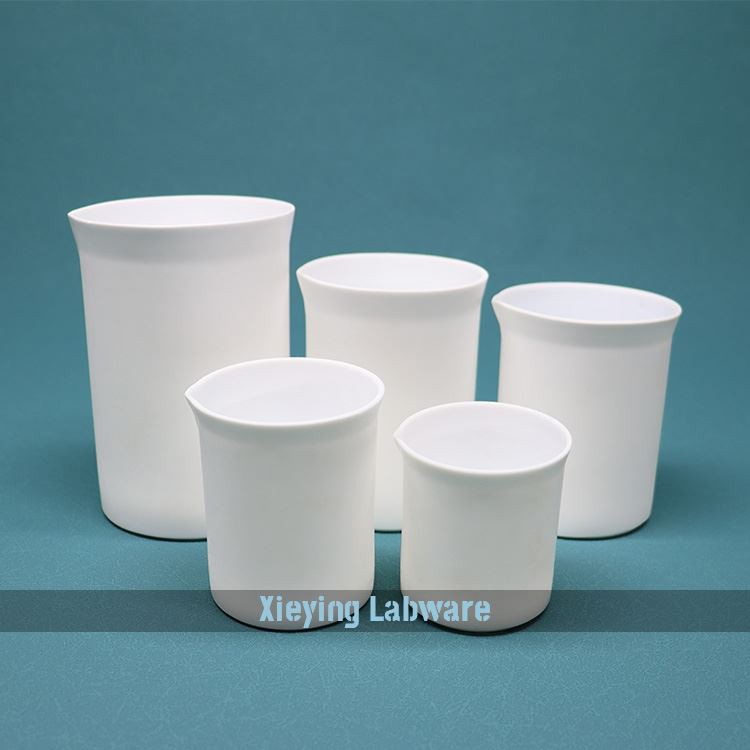

PTFE Plastic Beaker
Product Name: PTFE Plastic Beaker Low Form
Material: PTFE/Teflon
Capacity: 30ml-5000ml
- Fast Delievery
- Quality Assurance
- 24/7 Customer Service
Product Introduction
1. Product Name: PTFE Plastic Beaker Low Form
2. Material: PTFE/Teflon
3. Capacity: 30ml-5000ml
4. Color: Pure white
5. Temperature: -200-260℃
6. Application: Chemical Laboratory, Industrial
About PTFE Plastic Beaker
Used on asbestos network, forbid touching open flame directly; apply to sample digestion, acid-driving, boiling and dry.
Product Performance Description
Pure Polytetrafluoroethylene (teflone, PTFE)
Non-toxic -- Non-stick
Minimum Working Temperature -196℃
Max Working Temperature +250℃
Be able autoclavable to 280°C (536°F)
Melting Point 600K low
Temperature resistant
Acid and alkali resistant -- corrosion resistant
Eco-friendly -- Preferential price
Various specifications -- High quality
Advantages of PTFE
Insulation-- It is not affected by the environment and frequency. The volume resistance can reach 1018 ohm/cm, the dielectric loss is small, and the breakdown voltage is high.
High and low temperature resistance--The influence on temperature is not changed greatly, the temperature range is wide, the use temperature is -200~+250°C, and the electric heating plate can withstand 300°C for a short time. The open flame heating needs to be used on asbestos net.
-196 ° C can be maintained at 5%.
Lubricity--It has the smallest coefficient of friction in plastic and is an ideal oil-free lubricant.
Non-sticky surface--Known solid materials do not adhere to the surface and are a solid material with the lowest surface energy.
Resistance to atmospheric aging--radiation resistance and low permeability: long-term exposure to the atmosphere, surface and properties remain unchanged.
Non-combustibility-- The oxygen limit is below 90.
Physical properties-- The mechanical properties of polytetrafluoroethylene are relatively soft. Has a very low surface energy.

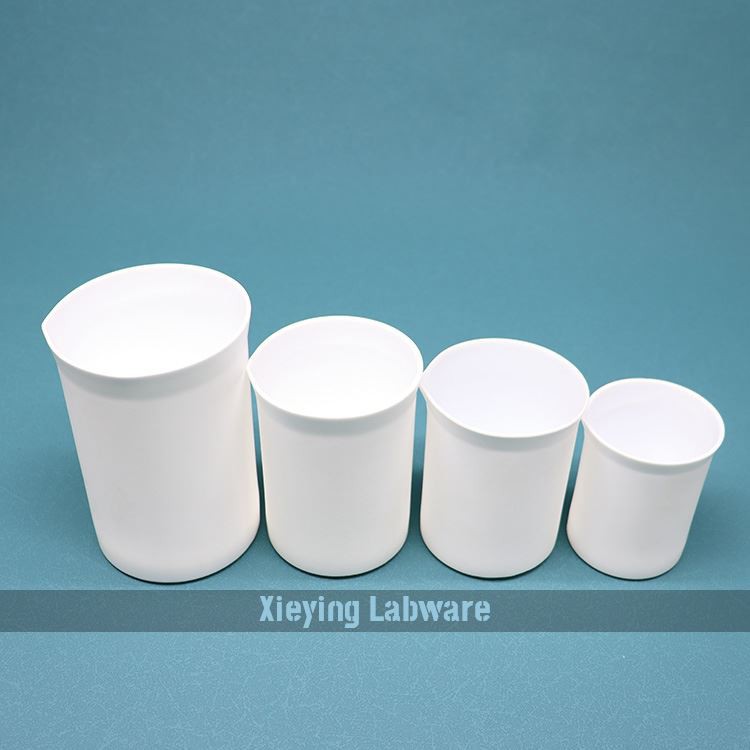

PTFE Beaker | |||||
Description | Photo | PN | Spec | Dia(mm) | Height(mm) |
PTFE Beaker | C00101 | 30ml | 38 | 50 | |
C00102 | 50ml | 46 | 55 | ||
C00103 | 100ml | 58 | 64 | ||
C00104 | 150ml | 63 | 79 | ||
C00105 | 200ml | 71 | 79 | ||
C00106 | 250ml | 73 | 90 | ||
C00107 | 300ml | 80 | 100 | ||
C00108 | 400ml | 100 | 105 | ||
C00109 | 500ml | 100 | 110 | ||
C00110 | 1000ml | 110 | 145 | ||
C00111 | 2000ml | 140 | 200 | ||
C00112 | 3000ml | 160 | 225 | ||
C00113 | 5000ml | 180 | 280 | ||

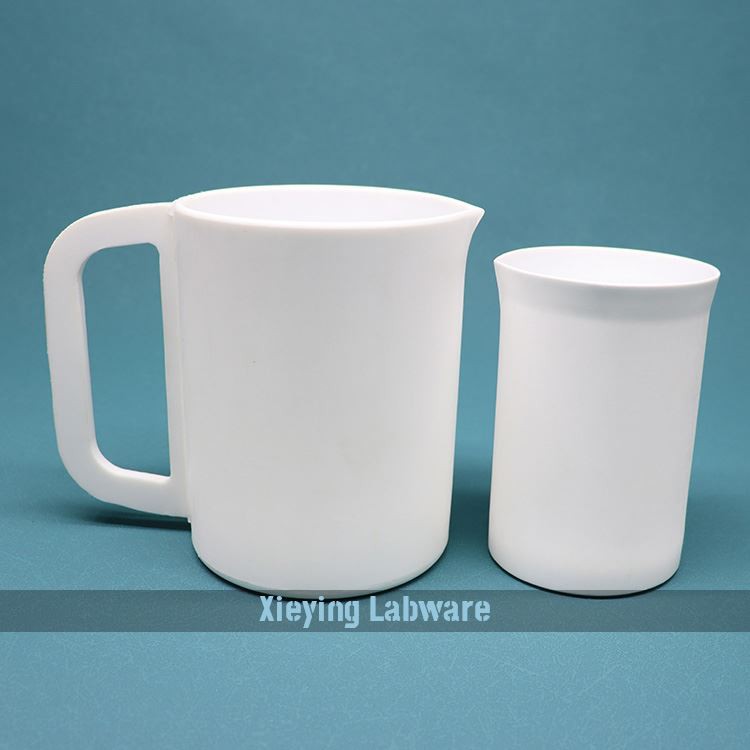

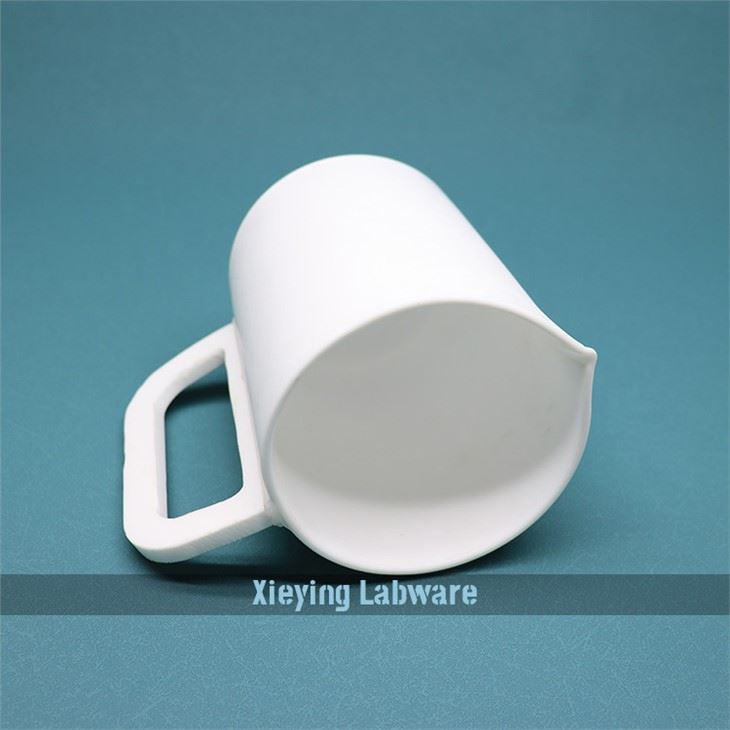

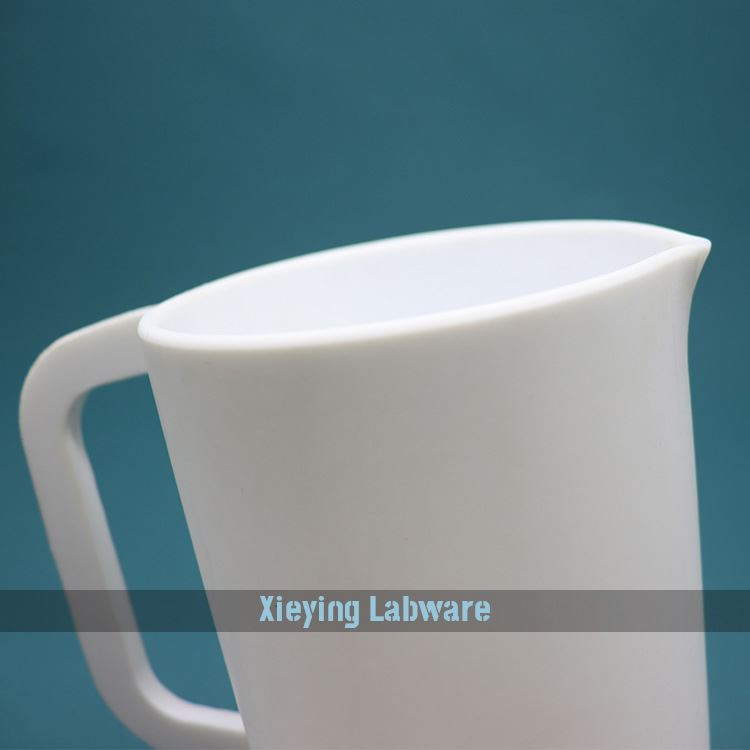

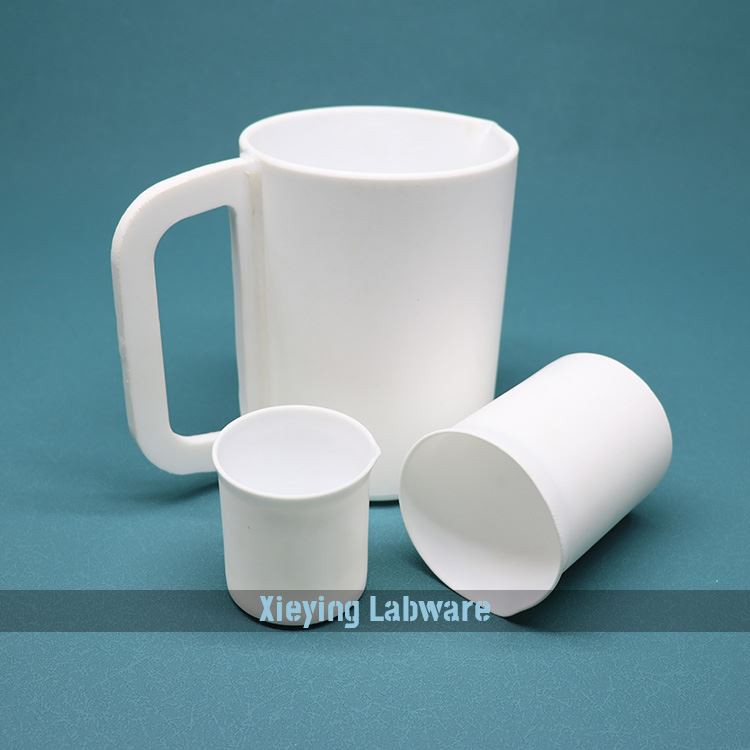

PTFE Beaker with Handle | C00201 | 1000ml | 110 | 145 | |
C00202 | 2000ml | 140 | 200 | ||
C00203 | 3000ml | 160 | 225 | ||
C00204 | 5000ml | 180 | 280 |
