Jacketed Glass Reactor:

1. Description:1L- 200L chemical Lab Equipment Double Jacketed Glass Reactor

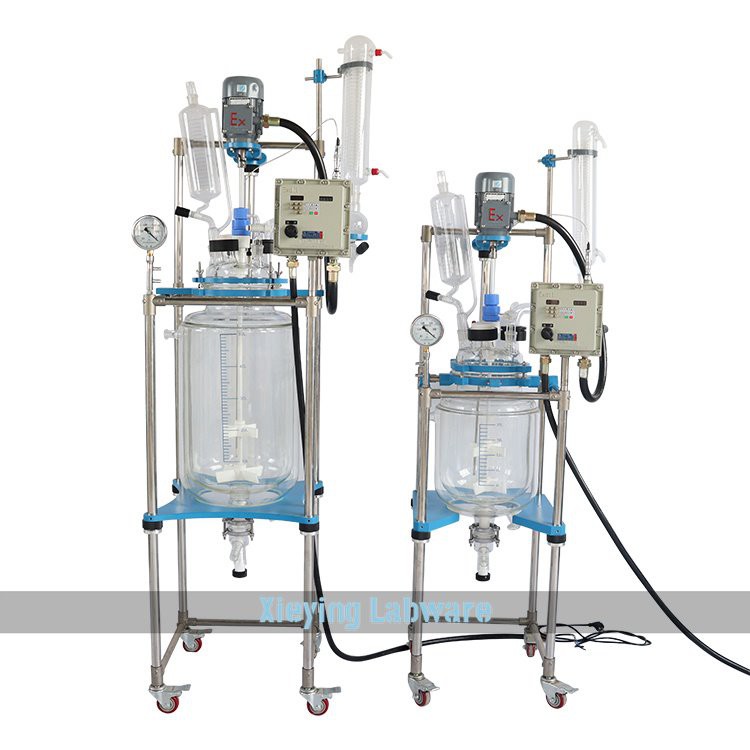

2. Volume:1L 2L 5L 10L 20L 30L 50L 80L 100L 150L 200L

3. Reacting temperature: - 80~300℃

4. GG17, SS,PTFE sealing

5. University brands designated

6. Explosion-prood device is optional for glass reactors above 5L jacketed glass reactors

7. Ac motor,brushless,no sparkle

8. Constant rotationg speed

9. Reflow and distillation system

10. Chemical laboratory use

11. Reaction mixing vessel

About Jacketed Glass Reactor:

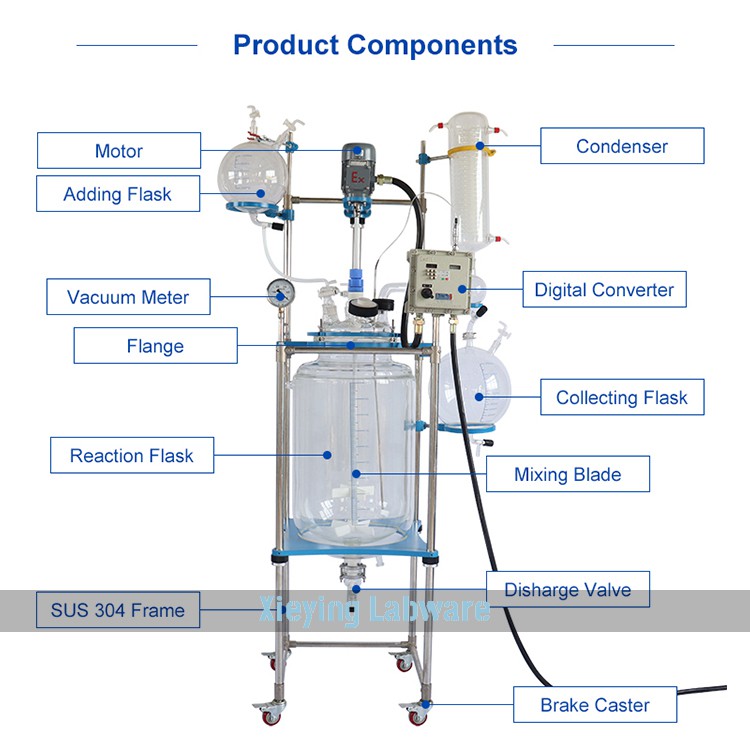

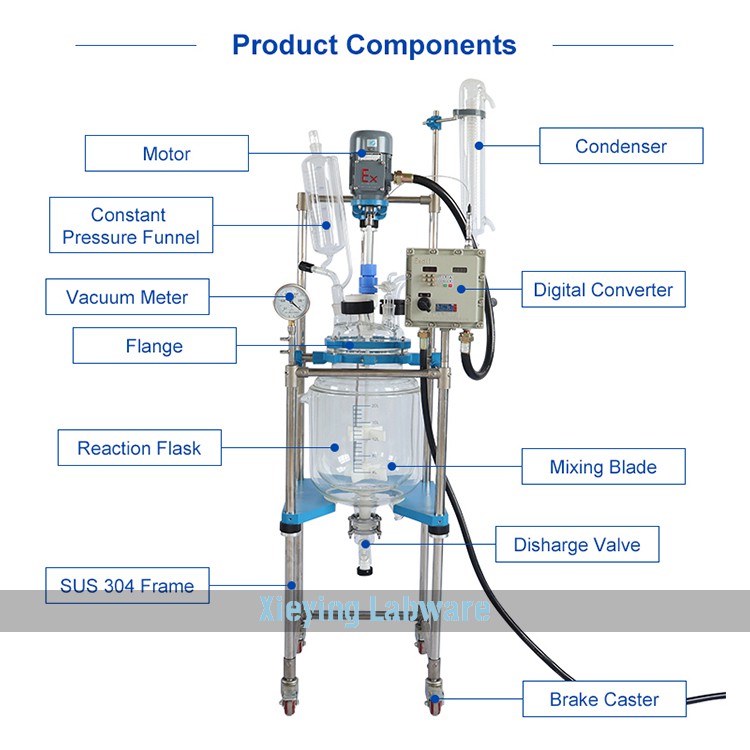

Jacketed glass reactors are designed for reaction and mixing of different types of materials under a specific adjustable temperature and vacuum condition. The reaction lid has different functional ports which allow users to perform different purposes such as adding material to the vessel at a controlled speed, measure the temperature of material, add powder or solids to the vessel, recover the distilled material and so on. The lid is fully customizable according to clients’ requirements.

Features of Jacketed Glass Reactor：

●Dual jacketed model allows you to draw vacuum from the outer jacket, thus protects your recirculation fluid temperature and gives you best control over your work. It also help prevents frost to form on the outside of the vessel, allowing you to see clearly into your material.

●Solvent-resistant PTFE on all sealing components ensures long time durability and operation.

●All glassware is hand-made from food grade high borosilicate 3.3 glass that is heat/cold/corrosion-resistant.

●Adjustable stirring rate provides great torque or high speed.

●Patented PTFE stirring rod bearing for reliable and quiet operation.

●Optional multi-layer stirring blades for optimal reaction results.

●Wide range of temperature operations, from-60°C to 200°C.

●Large condenser cooling surface for exceptional condensation performance.

●Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.

●Easily visual operation with digital speed and temperature displays.

●Heavy duty stainless steel supporting framework with lockable casters for mobility and stability. (whole support and glass vessel shipped pre-assembled)

●Easy-to-install modular design for exceptional ease and low cost of maintenance

●Zero-dead-space bottom valve design.

Working Principle of Double Layer Glass Reactor：

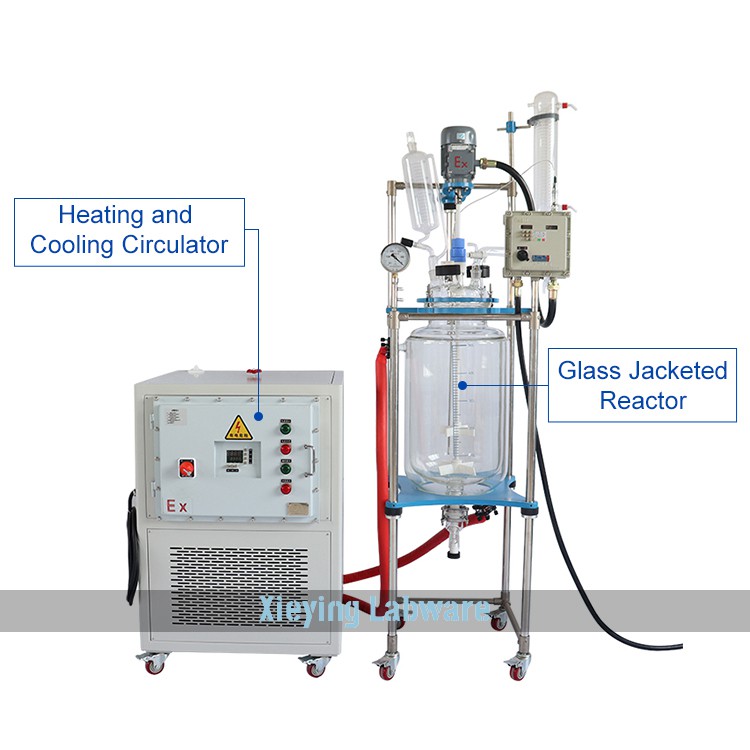

Under the vacuum negative pressure condition, the stirring rod is stirred at a constant speed by using the speed-regulating knob, so that the material is fully reacted in the kettle body, and the heating or cooling reaction of the material in the kettle is indirectly heated by the glass interlayer external heating or cooling device, and the reaction process is heated during the heating process. The resulting solvent vapor is rapidly cooled, distilled or refluxed via a cooling coil of a glass condenser. After the reaction is completed, the material can be quickly discharged through the oblique discharge valve.

Parameters of Jacketed Glass Reactor:
